Group 72 Service Procedures
6559-05-02-01
Tandem, Alignment
Please read “Guidelines for Working on the Volvo T-Ride
Suspension” page 19 before beginning this procedure.
To align the tandem use the J36795, Tandem Axle
Calipers. Tandem adjustments are made with washer
shims that are fastened to the saddle bracket at the
lower torque rod end.
W6001355

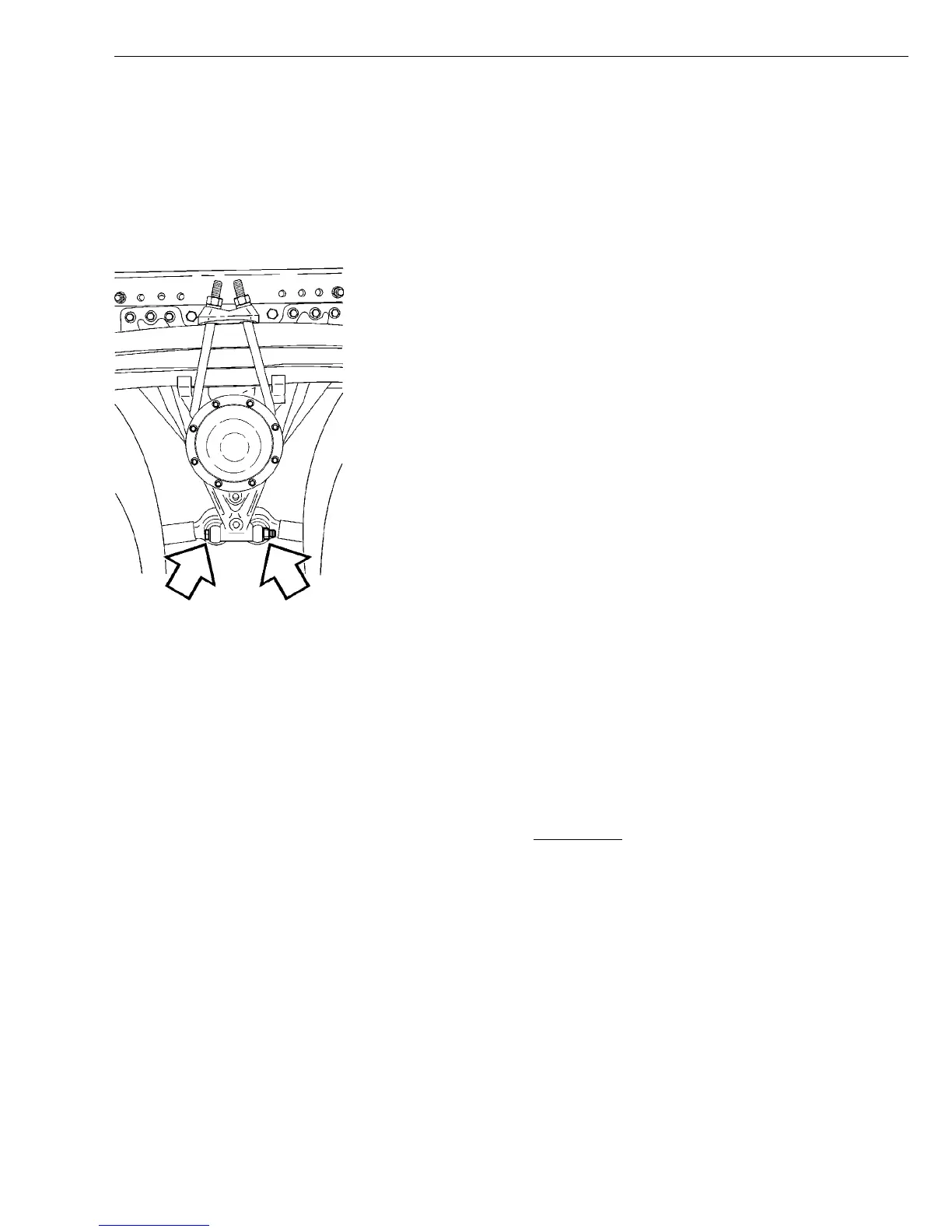

Fig. 2: Bogie Bracket and Tandem alignment
1
To remove or install washer shims, remove the long
through bolts that hold both the front and the rear lower
torque rod ends at the saddle bracket.
2
After installing or removing shims,
re-torque bolt nuts to 200 ± 25 Nm
(148 ± 18 ft-lb).
200 ± 25 Nm (148 ± 18 ft-lb)
3
Refer to the correct service literature for alignment
procedures.
