Group 72 Service Procedures
7221-03-02-03
Rear Spring Leaf, Replacement
Please read “Guidelines for Working on the Volvo T-Ride
Suspension” page 19 before beginning this procedure.
1
Park the vehicle on a level surface and chock the front
wheels.
2

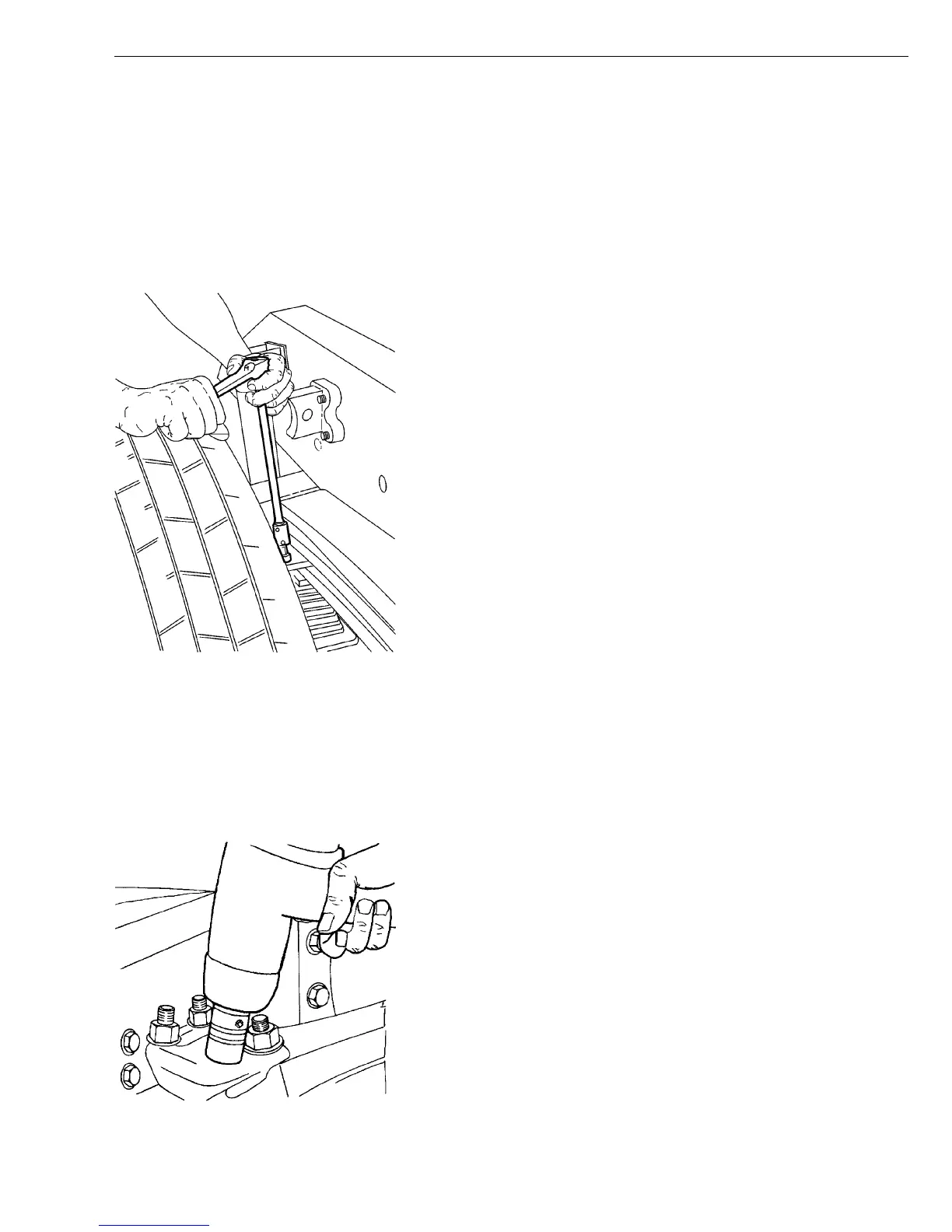

W6001333
Removing the spring end nuts.
Remove the nuts from the spring ends.
3
Raise the frame and support the frame rails with jack
stands, one at the front and one at the rear of the
rear suspension.
4
W6001312
Removing the U-bolt nuts
Remove the spring U-bolt nuts and then the spring
saddle cap.
33
