302 Electrical System

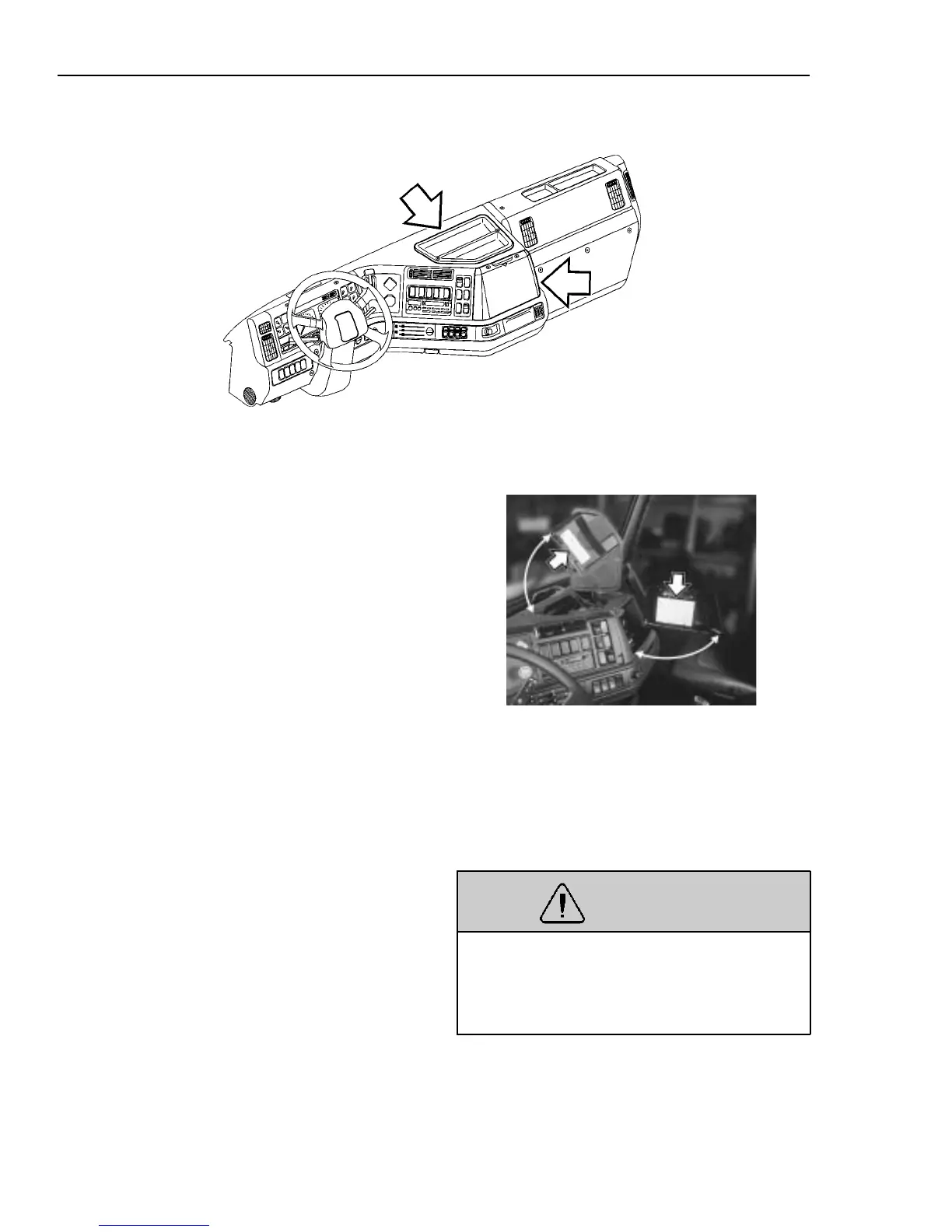

Electrical Center
W8000923
The electrical center is located in the mid-
dle of the dash. All the relays and fuses in
the cab are collected here. The cover panels
are fastened with screws that can be turned
with a coin. Since the function of some
fuses or relays may change for the vehicle
application, refer to the list of functions that
is attached to the underside of each panel.
All fuses and relays are accessible under
the top cover.
W3002514
Fuses are standard. Reset breakers are avail-
able as an option for some circuits. If a fuse
continues to melt or disconnect, the circuit
has a malfunction and must be repaired.
If a breaker disconnects, the ignition or
main switch must be switched off before
the breaker resets.
WARNING
Failure to repair a malfunction in the
electrical system can result in serious
damage to electrical components and ve-
hicle fire.
