Instrument Cluster Overview
W3004396
General

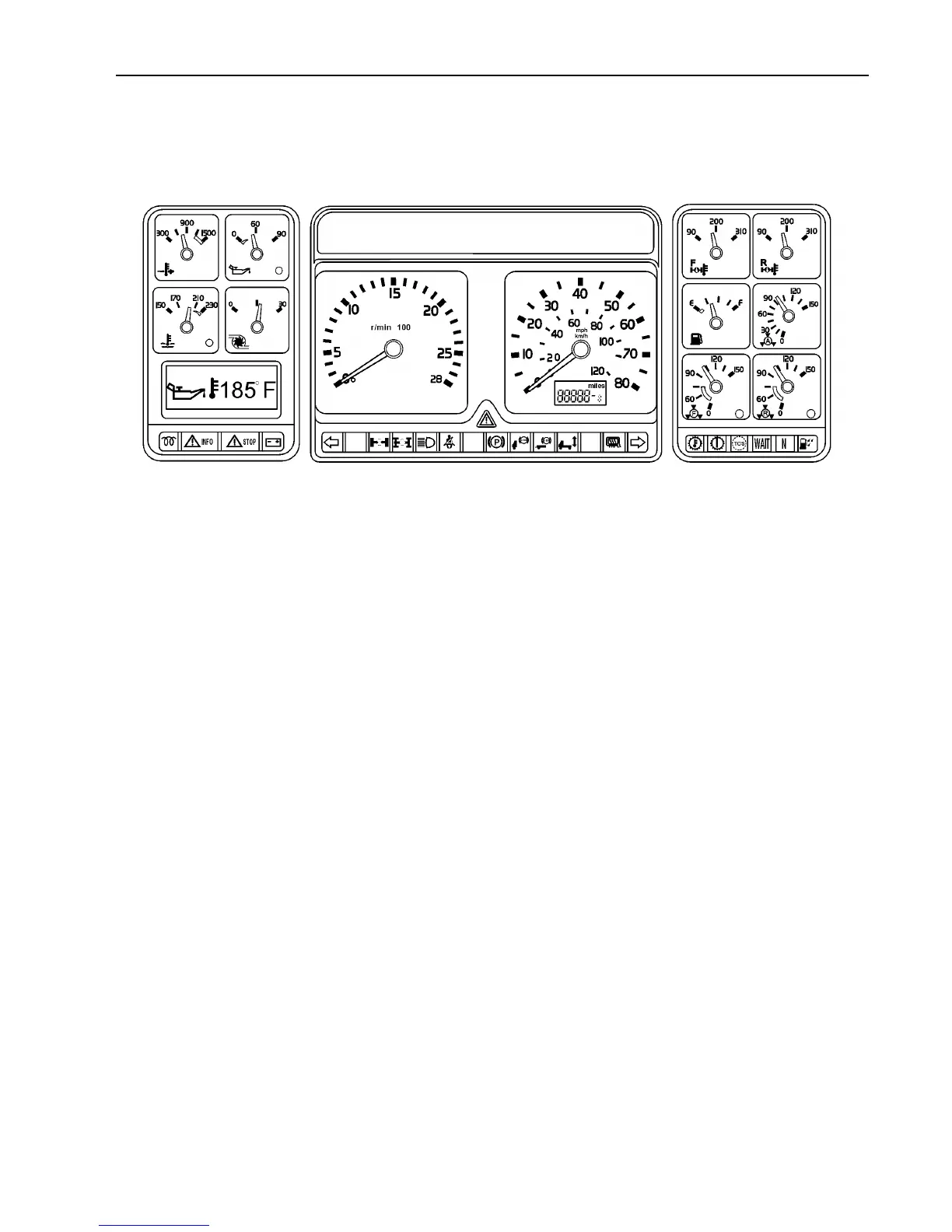

The cluster is available in seven different
configurations, with the speedometer either
graded in mph or km/h. The cluster con-
sists of three combined sections:
Left Section
The left section can include pyrometer, en-
gine oil pressure gauge, engine coolant
temperature gauge, turbo boost pressure
gauge and a graphic display for driver
information. See page 74 for gauge infor-
mation and page 114 for graphic display
information. There are telltales in the lower
part. Please refer to page 77 for telltale
information.
Center Section
The center section contains tachometer,
speedometer and odometer. See page 82 for
gauge information. In the lower part there
is a central warning lamp and telltales for
different vehicle functions. Please refer to
page 85 for telltale information.
Right Section
The right section can include forward and
rear axle temperature gauges, fuel level
gauge, application air pressure gauge, front
and rear brake air pressure gauges. Vehicles
with rear air suspension may have an air
suspension pressure gauge. See page 89 for
gauge information. There are telltales in the
lower part. Please refer to page 92 for tell-
tale information.
