74 Instruments and Controls

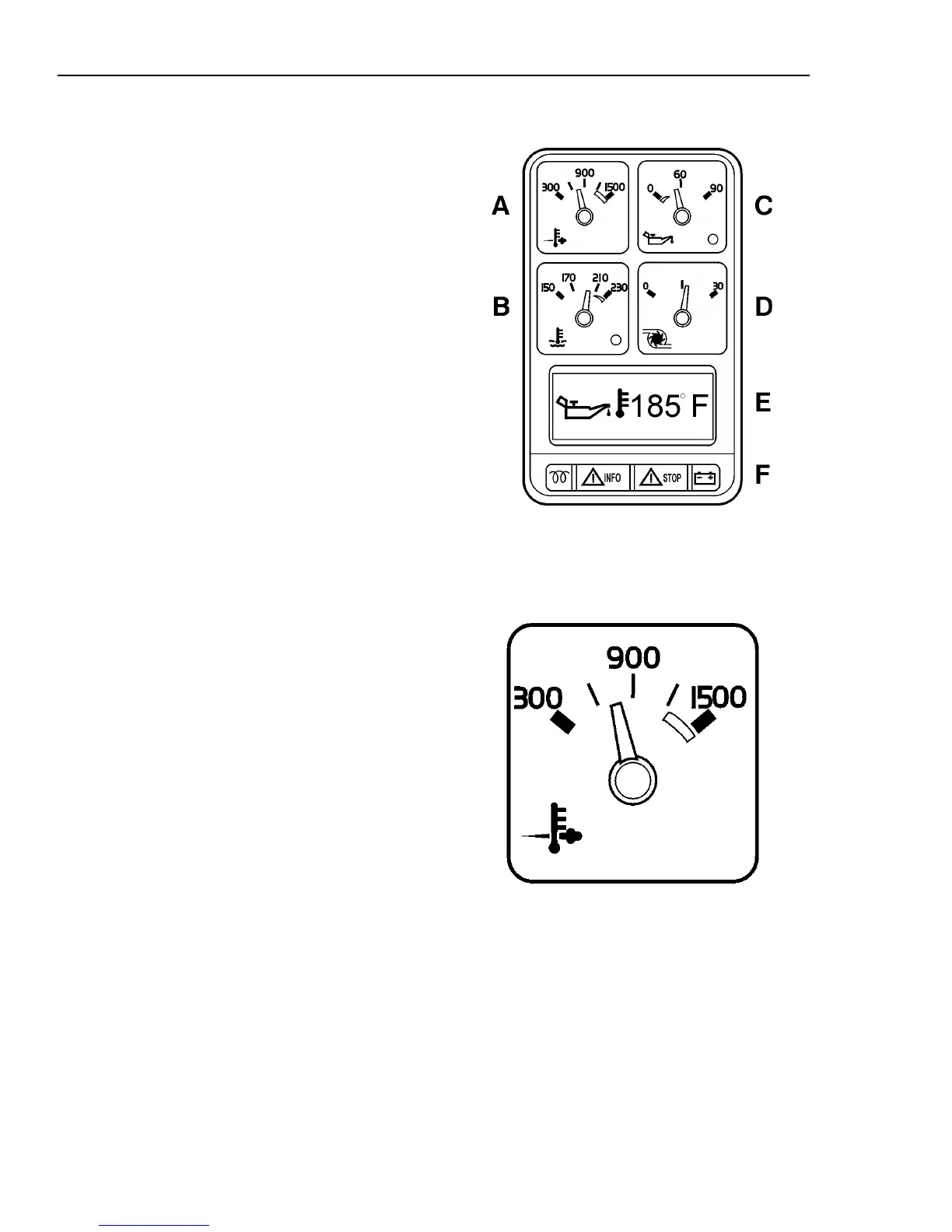

Left Instrument Section
A Pyrometer (option) (this page)
B Engine Coolant Temperature
( page 75)
C Engine Oil Pressure ( page 76)
D Turbo Boost Pressure (option)
( page 77)
E Graphic Display ( page 114)
F Telltale Indicators ( page 77)
W3003644
A — Pyrometer (option)
An engine pyrometer system indicates the
exhaust temperature, which helps the opera-
tor get the best efficiency from the engine.
Variations in engine load can cause the ex-
haust temperature to vary. For example,
high exhaust gas temperature is the result
of prolonged engine lugging or overfueling.
If the pyrometer reading shows that exhaust
temperature exceeds normal, reduce fuel to
the engine until exhaust temperature is re-
duced. Shift to a lower gear if the engine is
overloaded.
W3003632
