Maintenance RD 16
70 wc_tx001076gb.fm
4.6 Rear Frame Access

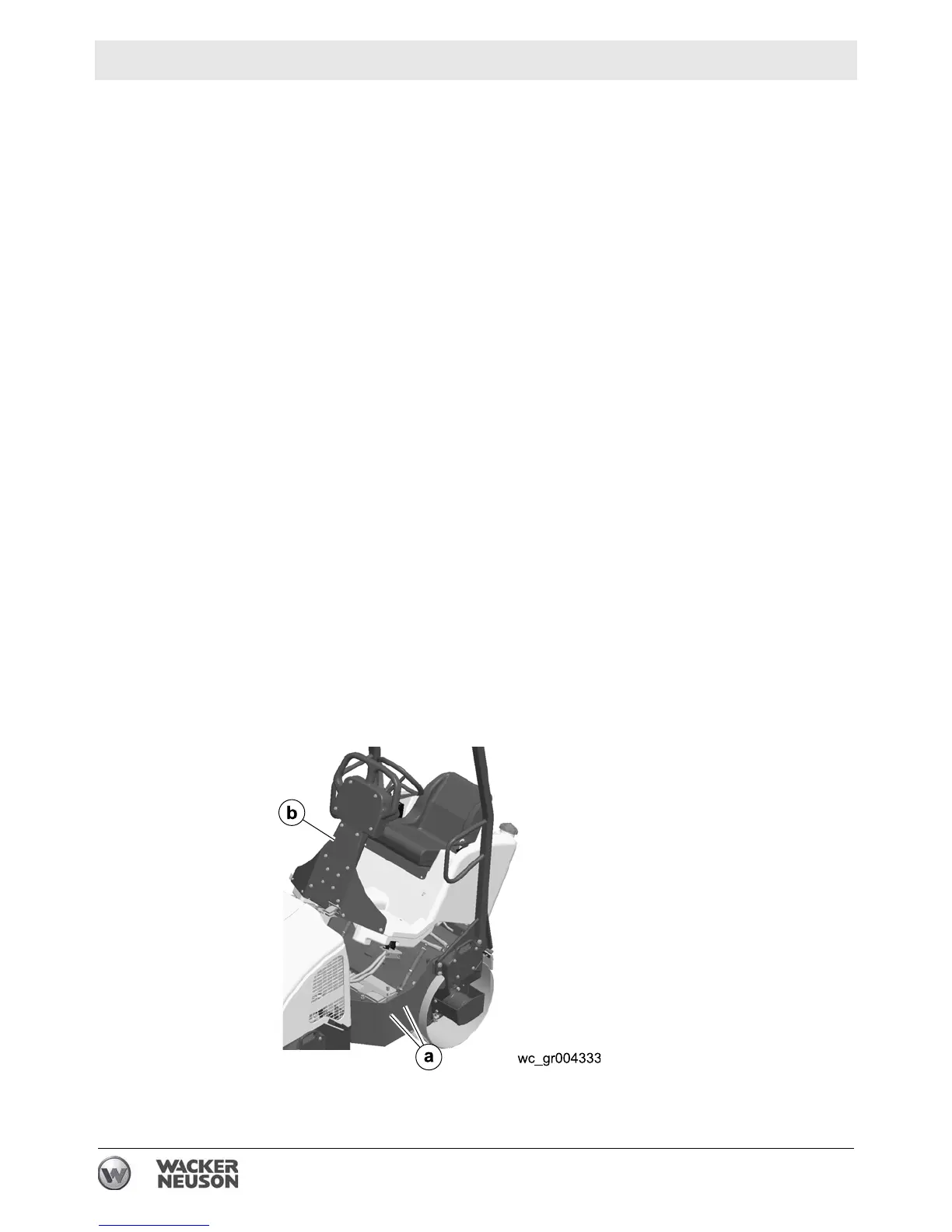

See Graphic: wc_gr004333
The operator’s platform is mounted on hinges and can be lifted open
to provide access to the water pump, the water filter, the battery, the
hydraulic hoses, and the fuel tank. The platform has lifting cylinders
that hold the platform in the open position.
NOTICE: The lifting cylinders do not have enough force to lift and hold
the platform in the open position when the tank is filled with water. If
there is water in the water tank, drain all water before lifting the
platform.
To open:
4.6.1 Drain water from the water tank. See section Water Spray System.
4.6.2 Remove the two bolts (a) locking the operator’s platform to each side
of the rear frame.
4.6.3 Slowly lift up on the steering column (b).
Note: Lifting the operator’s platform too far can damage the lifting
cylinders and other components.
NOTICE: Do not disconnect the lifting cylinders to open the platform
further. Fuel may leak out of the fuel cap.
To close:
4.6.4 Push down on the platform to return to the operating position.
4.6.5 Replace the two bolts (a) locking the operator’s platform to each side
of the rear frame.
