Fastrack M1306B User Guide
General Presentation
confidential © Page: 24 / 65
This document is the sole and exclusive property of WAVECOM. Not to be distributed or divulged
without prior written agreement.
WM_PRJ_M13_UGD_001 -003 November 11, 2006

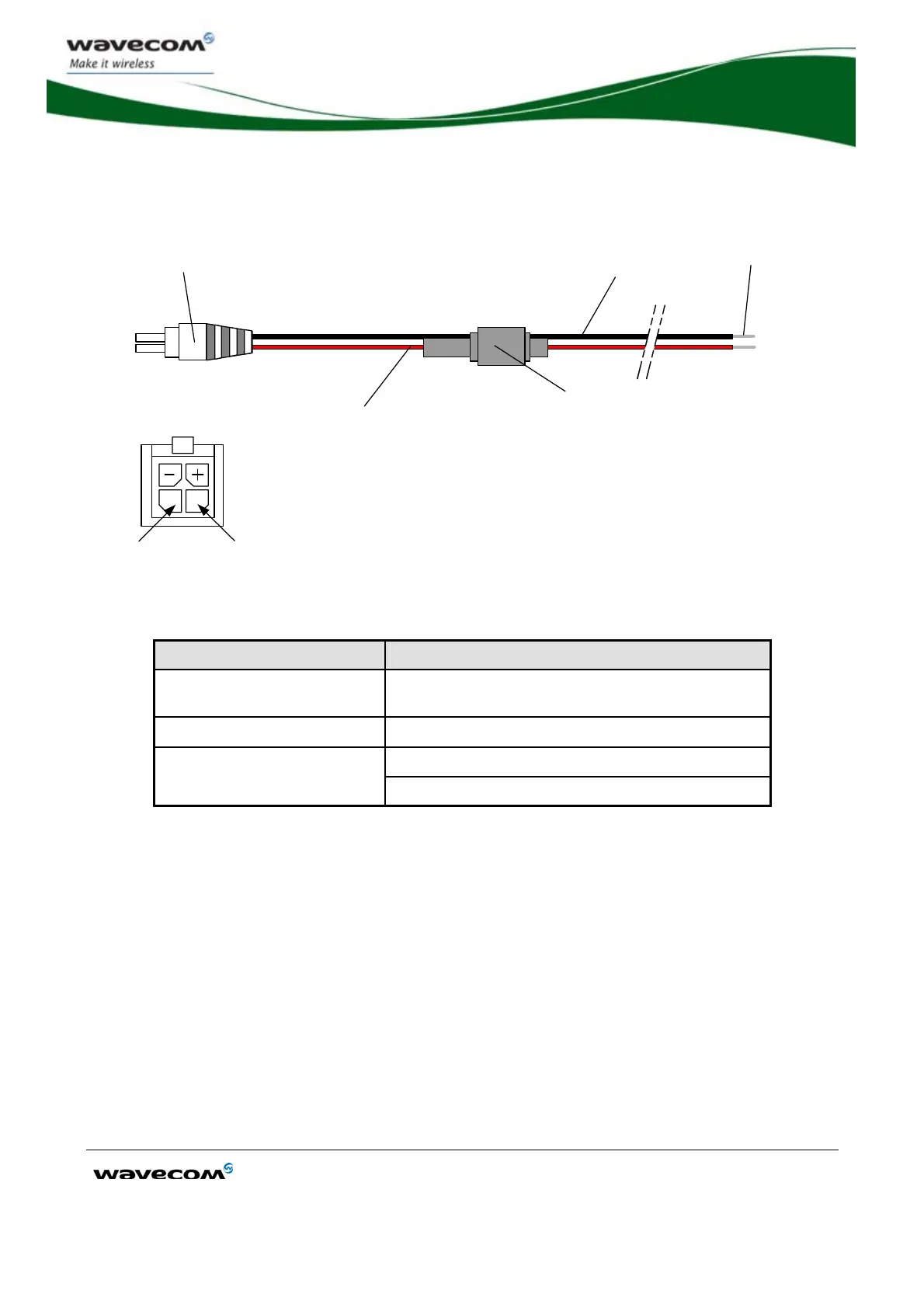

3.2.2 Power supply cable
Fuse 800 mA / 250 V
( 5 x 20 mm )
Red wire
Connector Molex
Micro - Fit 3. 0
Stripped wire
tinned over 5
mm
Connector
Side View
Black wire
GPIO 4
GPIO 5
(+)
(GND)
Figure 9: Power supply cable
Component Characteristics
Micro-Fit connector
4-pin
Part number: MOLEX 43025-0400
Cable
Cable length: ∼1.5 m
Core: tinned copper 24 x 0.2 mm Wire
Section: 0.75 mm
2
