Fastrack M1306B User Guide
Using the M1306B Wireless CPU
®
M1306B
Figure 11: Recommended power supply connection on trucks
Figure 11 gives the recommended power supply connection where the ground
connection of the M1306B is not directly connected to the battery but is connected
after the Circuit Breaker (on the truck ground or the fuse box).
5.2.2 Technical Constraints on Trucks

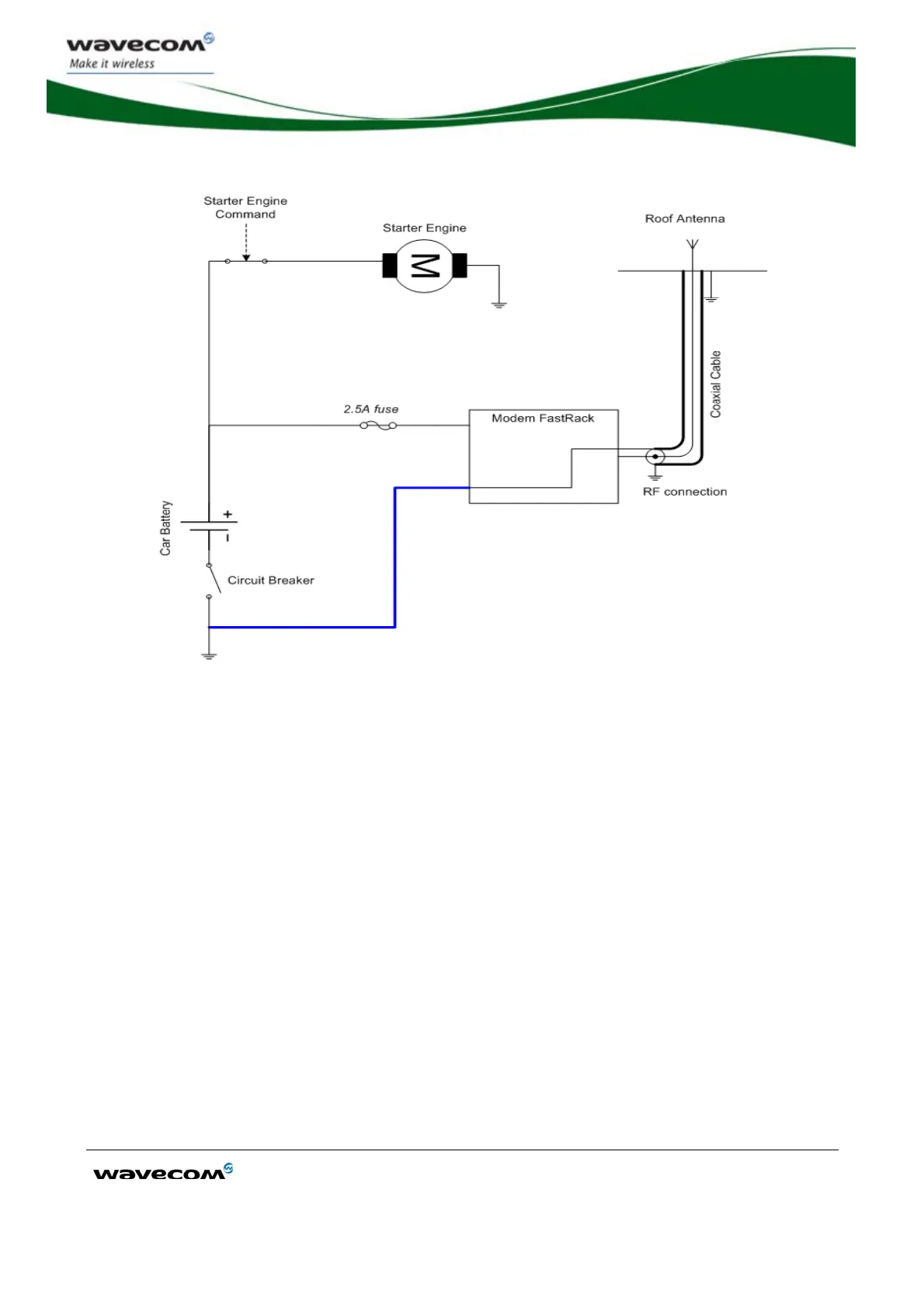

It is highly not recommended to connect directly the power supply on the battery
rather than on the circuit breaker. The Fastrack M1306B may be damaged when
starting the truck if the circuit breaker is switched OFF (in this case, the truck ground
and the battery ground will be connected through the M1306B as shown in the
figure below).
confidential © Page: 30 / 65
This document is the sole and exclusive property of WAVECOM. Not to be distributed or divulged
without prior written agreement.
WM_PRJ_M13_UGD_001 -003 November 11, 2006
