Fastrack M1306B User Guide
Using the M1306B Wireless CPU
®
M1306B

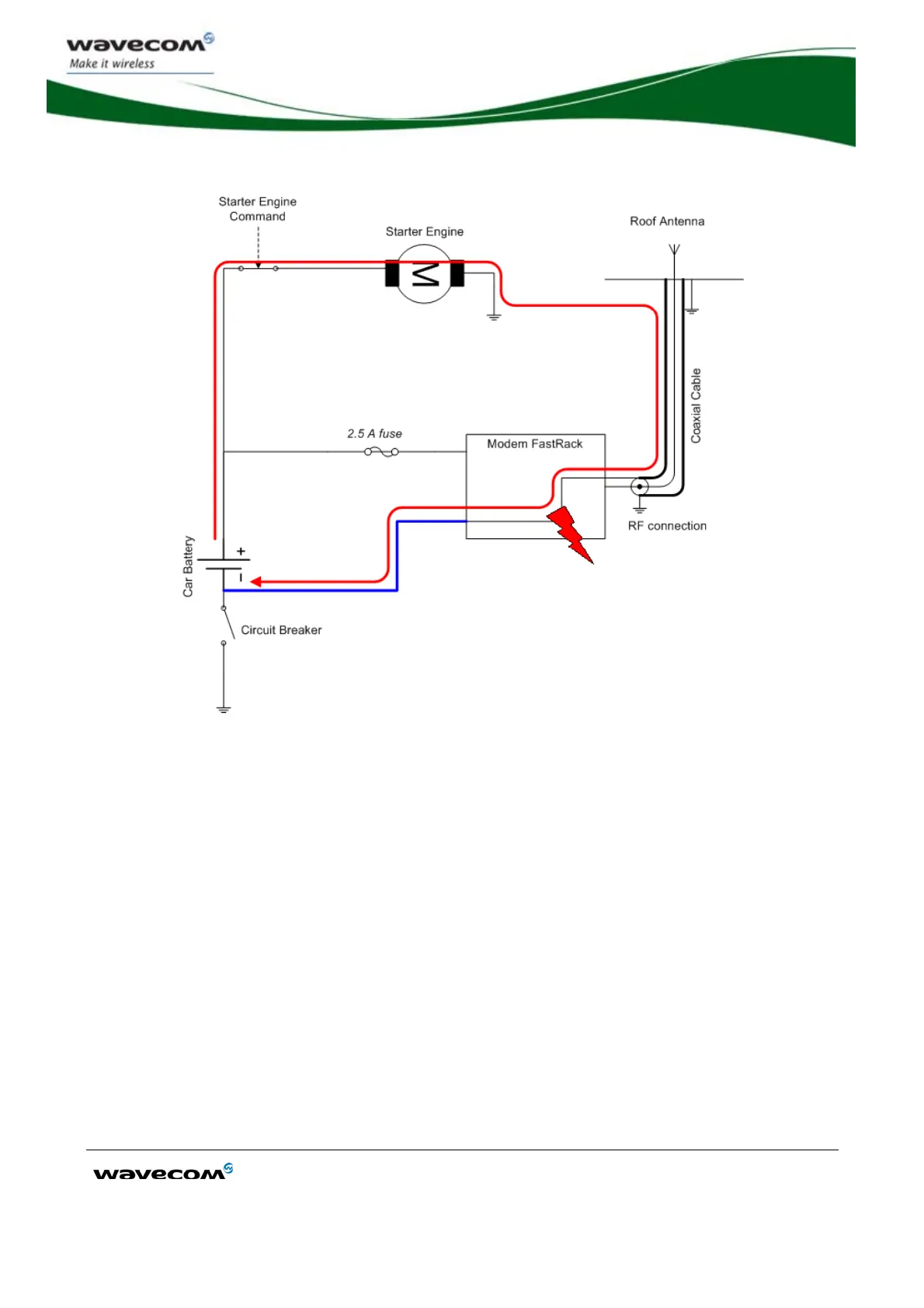

Figure 12: Example of electrical connection which may dramatically damage the
M1306B
Figure 12 gives an example of electrical connection which may dramatically damage
the M1306B when its ground connection is directly connected to the battery ground.
In this example, when the circuit breaker is switched OFF, the current flows through
the M1306B and powers the electrical circuit of the truck (for example, dashboard).
Furthermore, when the Starter Engine command will be used, it will destroy the
cables or the M1306B.
Since the internal tracks are not designed to support high current (up to 60 A when
starting the truck), they will be destroyed.
5.3 M1306B Operational Status
The M1306B operational status is given by the green LED status located on the
M1306B front panel.
The Table 4 below gives the meaning of the various statuses available.
confidential © Page: 31 / 65
This document is the sole and exclusive property of WAVECOM. Not to be distributed or divulged
without prior written agreement.
WM_PRJ_M13_UGD_001 -003 November 11, 2006
