Controller Cards
23

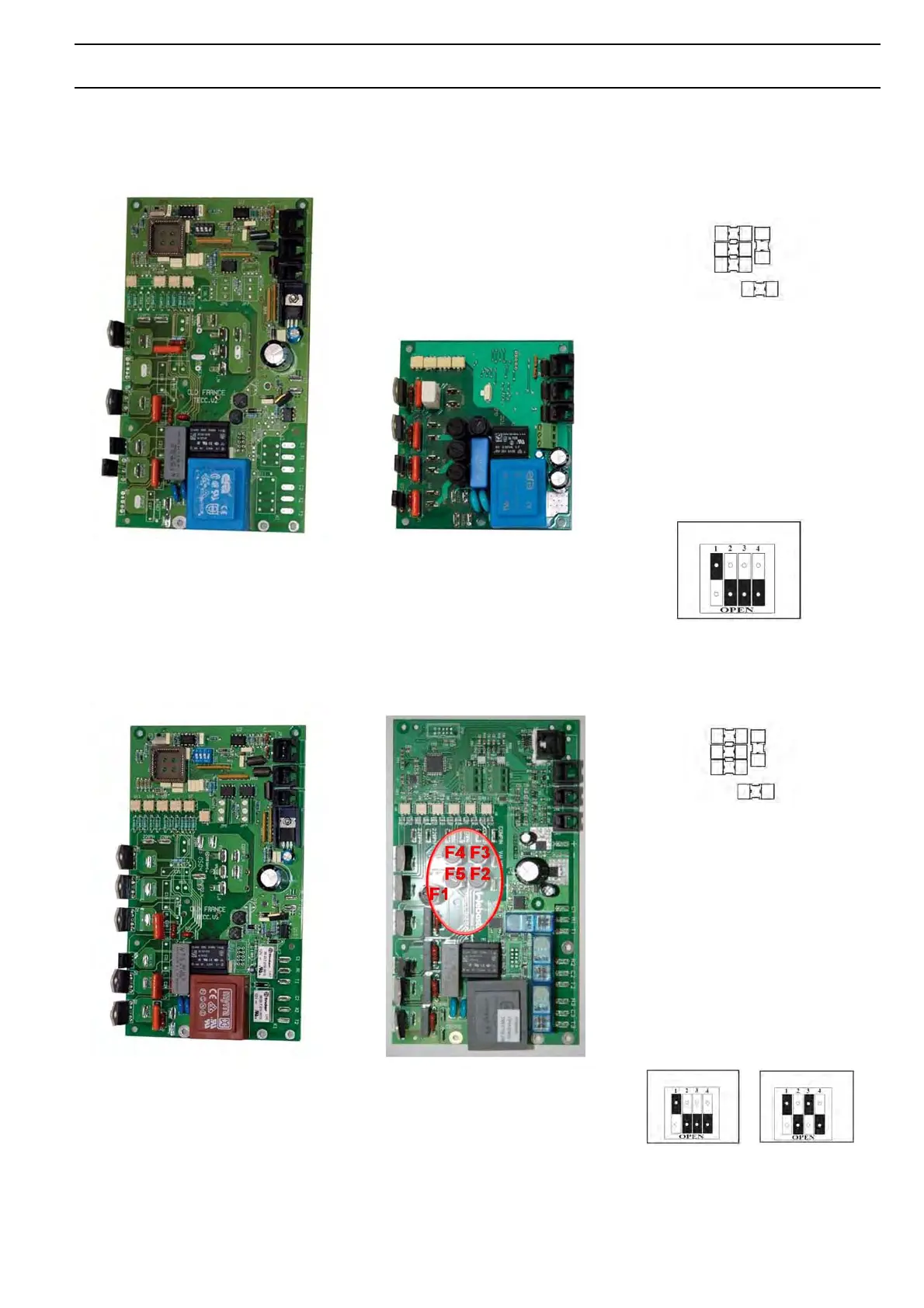

7 Controller Cards
7.1 Classic
7.2 Premium
CPAC - TCC
Controller V2
< 2004
CPAC - TCC
Controller V3
2004 >
Fuses V2 series
Fuses V3 series:
F1 Print board 315 mA
F2 Pump 3.15 A
F3 Valve 3.15 A
F4 Fan 3.15 A
Dipswitch settings V2 series
WBCL000828
Pump 2 - 6 A
Fan - 3 A
Valve - 3 A
Pump 1 - 6 A
Trafo - 315 mA
Black = pushed down
Chiller - TECC
Controller V2
< 2006
Chiller - TECC
Controller V3.1
2006 >
Fuses V2 series
Fuses V3 series:
F1 Print board 315 mA
F2 Fan 6.3 A
F3 Valve 3.15 A
F4 Pump 1 SW 3.15 A
F5 Pump 2 CW 3.15 A
Dipswitch settings V2 series
WBCL000864
1 and 2 com-
pressors
3 and 4 com-
pressors
Pump 2 - 6 A
Fan - 3 A
Valve - 3 A
Pump 1 - 6 A
Trafo - 315 mA
Black = pushed down
