Electrical diagrams
26

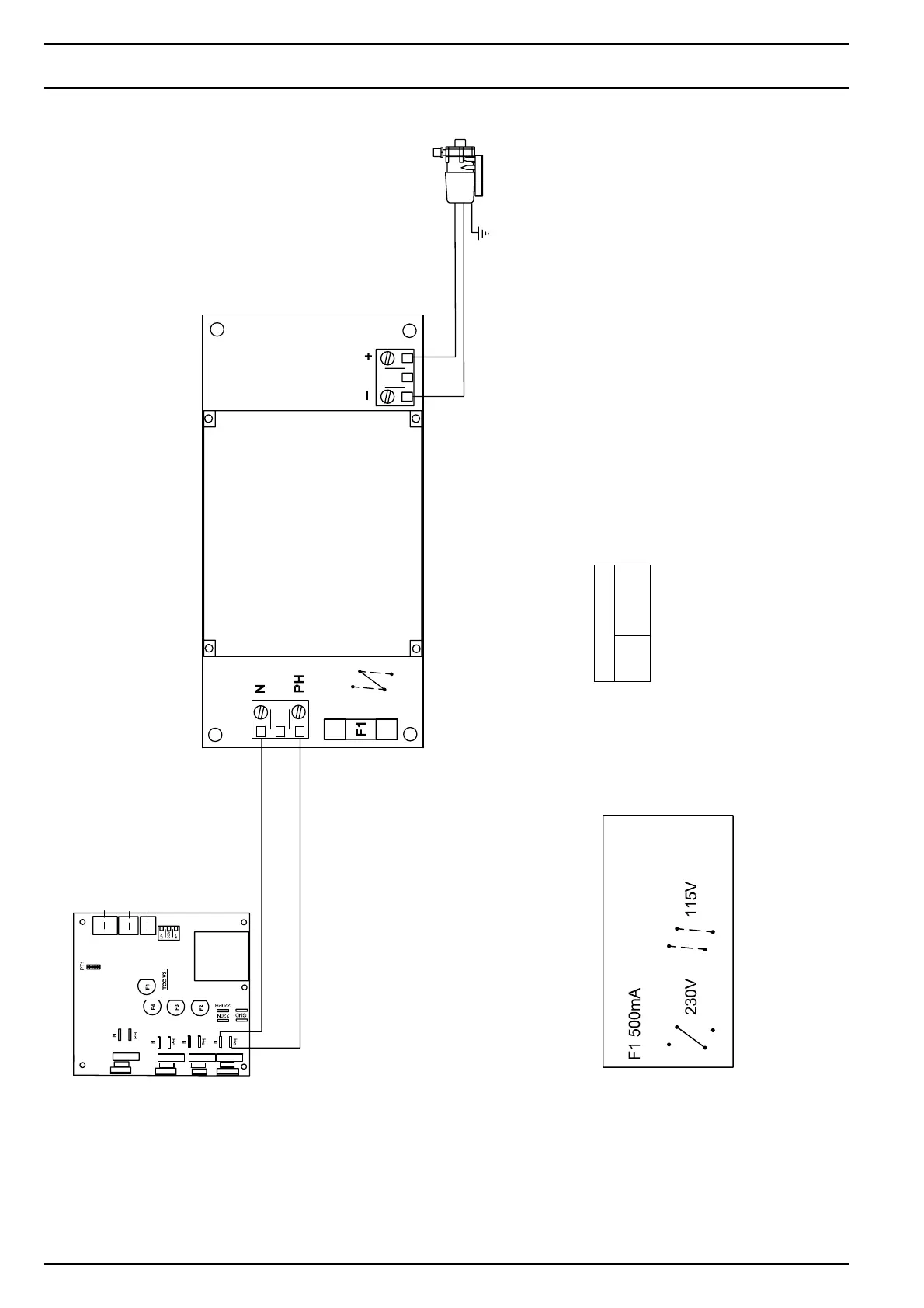

8.2 Classic, TCC V3 WB200 Pump Kit
bl
br
IMPORTANT
For proper operation TCC controller
settings at setpoint 29 °C, line <c>
must be set at 01
Seawater pump
TCC pump outlet
Cable colours
bl
br
blue
brown
Display
comp
fan
valve
pump
External air temp.
sensor
Evaporator temp.
sensor
FUSE / VOLTAGE SETTING:
