Webasto BlueCool Classic User Manual

Electrical diagrams
36

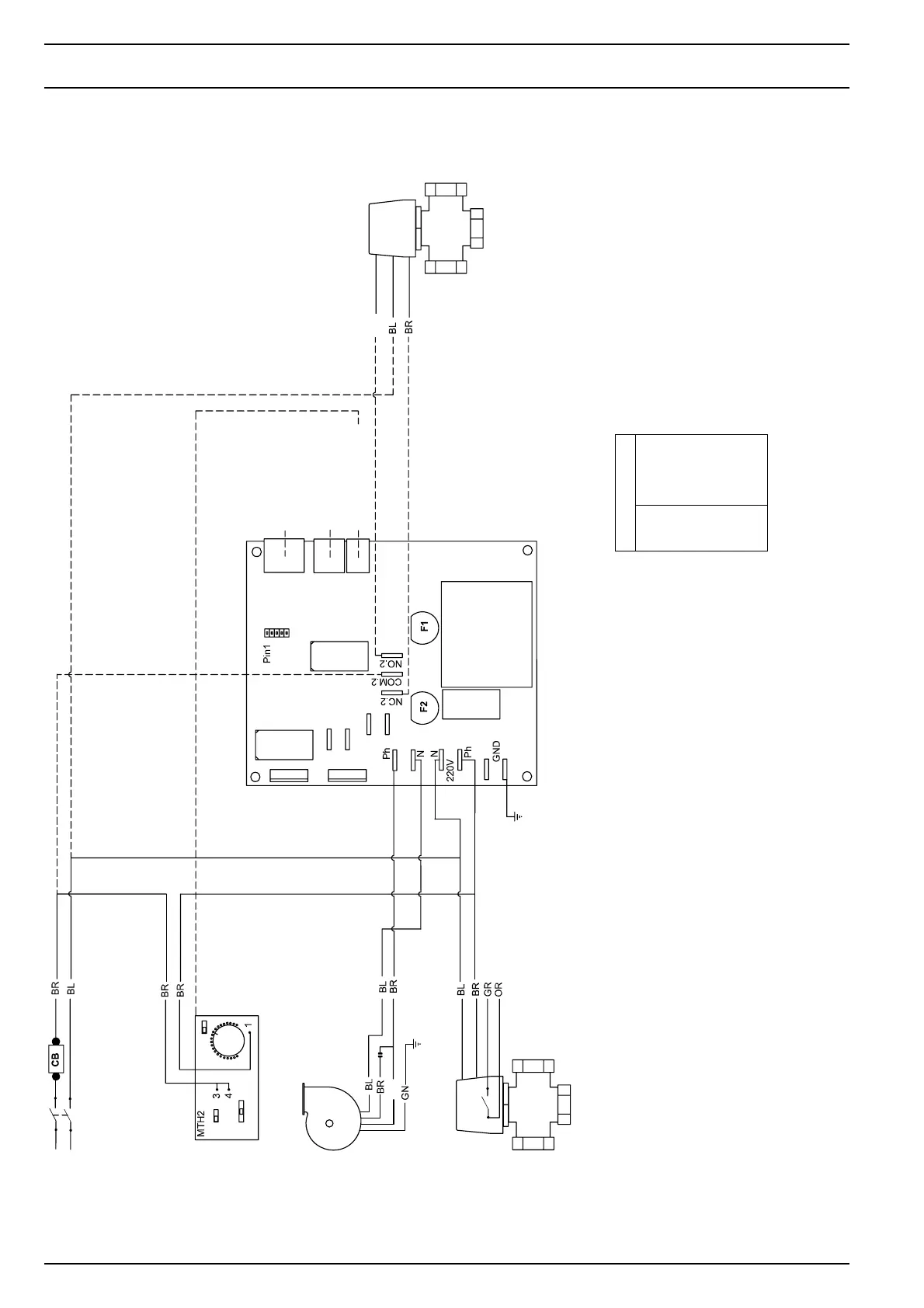

8.12 Premium, CAB V3 controller card + MTH2 thermostat + 3-way valve
SW
SW
Fuses: F1 PCB 315mA F2 fan 3.15A
Cable colours
bl br ge gn gr rt sw ws or
blue brown yellow green grey red black white orange
Blower
230V AC switch board
Display (program only!) Not used
Speed selection switch
CAB V3 3-speed
Thermostat
3-way valve 230V
Fan
Danfoss 3-way valve 230V
