Electrical diagrams
38

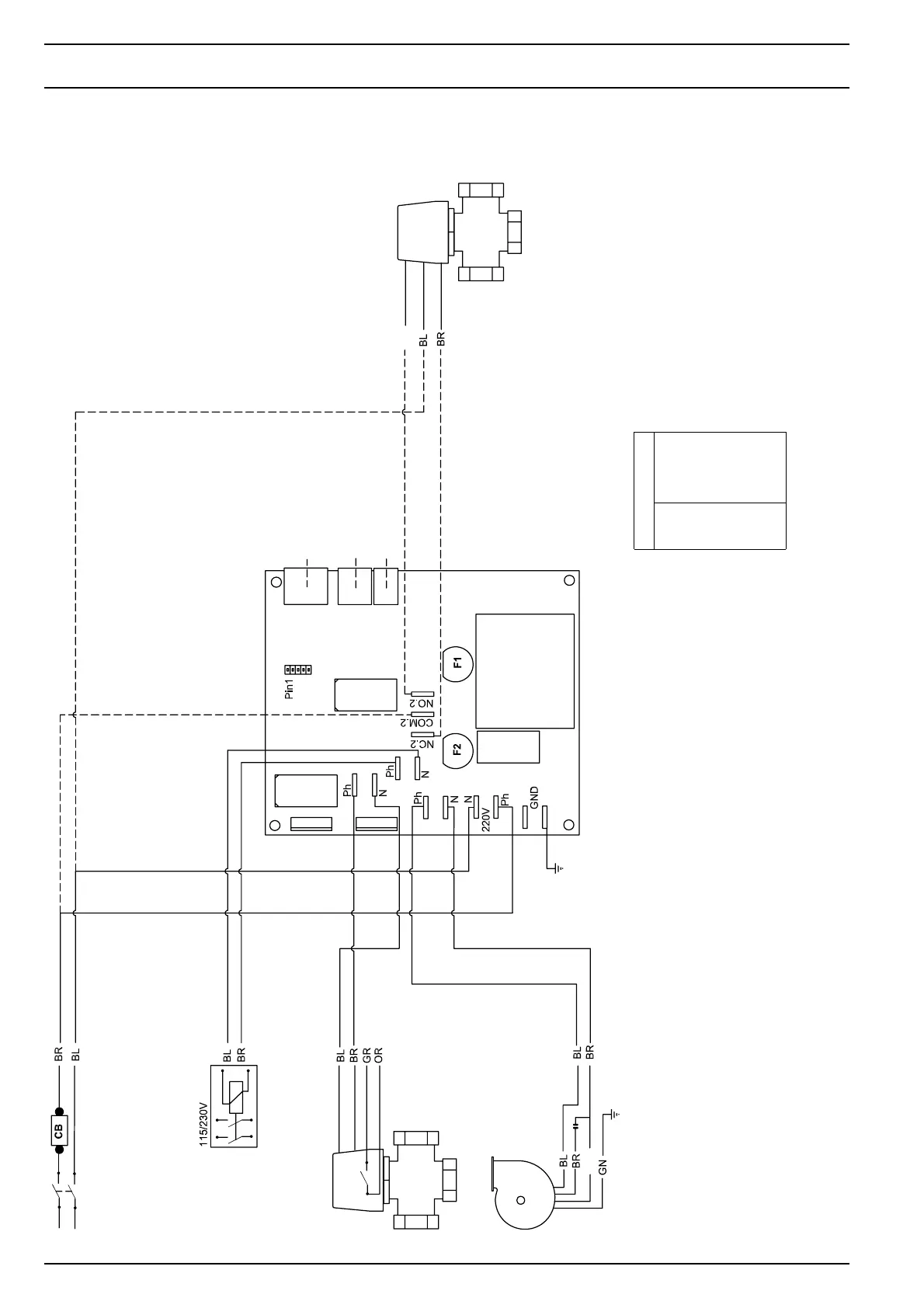

8.14 Premium, CAB V3 controller card + Digital Display Panel + 3-way valve
SW
SW
Fuses:
F1 PCB 315mA (115V 630mA)
F2 fan 3.15A
Cable colours
bl
br
ge
gn
gr
rt
sw
ws
or
blue
brown
yellow
green
grey
red
black
white
orange
Blower
115/230V AC
switch board
Display
External air temp. sensor
Chilled water temp.
sensor
CAB V3 Digital
Heater element
3-way valve
(230V only)
Fan
Danfoss 3-way valve
(230V only)
Valve
Heat
