CardioPerfect
Pocket ECG User - Manual
DIR 80012822 Ver. C 14 / 41
Precordial electrodes
Connect the precordial electrodes in the following positions:
V1 : Fourth intercostal space, at the right sternal margin.
V2 : Fourth intercostal space, at the left sternal margin.
V3 : Fifth rib, between leads V2 and V4.
V4 : Fifth intercostal space, on the left midclavicular line.
V5 : Left anterior axillary line, at the horizontal level of V4.
V6 : Left midaxillary line, at the horizontal level of V4.

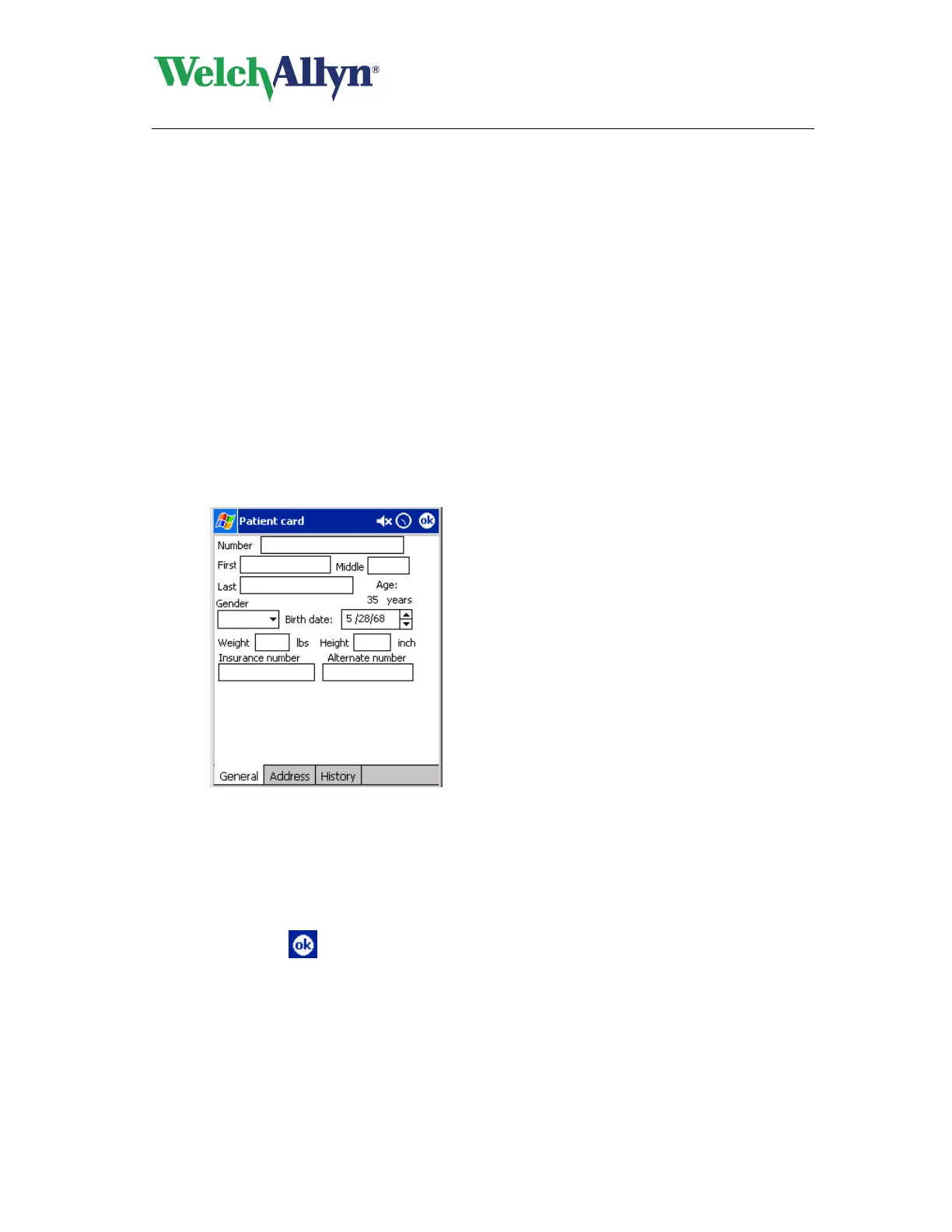

2.3 Patient card
It is advisable to fill in the patient card or check if the patient data are still accurate before
recording an ECG. After opening an existing ECG or creating a new ECG you can enter or edit
the patient data in the Patient card in Monitor mode or Review mode.
To fill in a new patient card or edit an existing one:
1.
In Monitor or Review mode select Patient card in the ECG menu. A patient card will
be displayed.
2. In the General tab of the patient card, enter the patient's number, name, insurance
number, gender, birth date, weight and height. The patient number is mandatory.
3. In the Address tab, enter the patient's address information.
4. In the History tab, you can enter some information on the patient's history, for instance
whether the patient is a smoker, and the amount of exercise a patient gets. You can
start typing straight under the previous comment.
5. Tap on the
button to save the patient information.
6. Tap on the OK button in the command bar to save the recording.
