CardioPerfect
Pocket ECG User - Manual
DIR 80012822 Ver. C 18 / 41

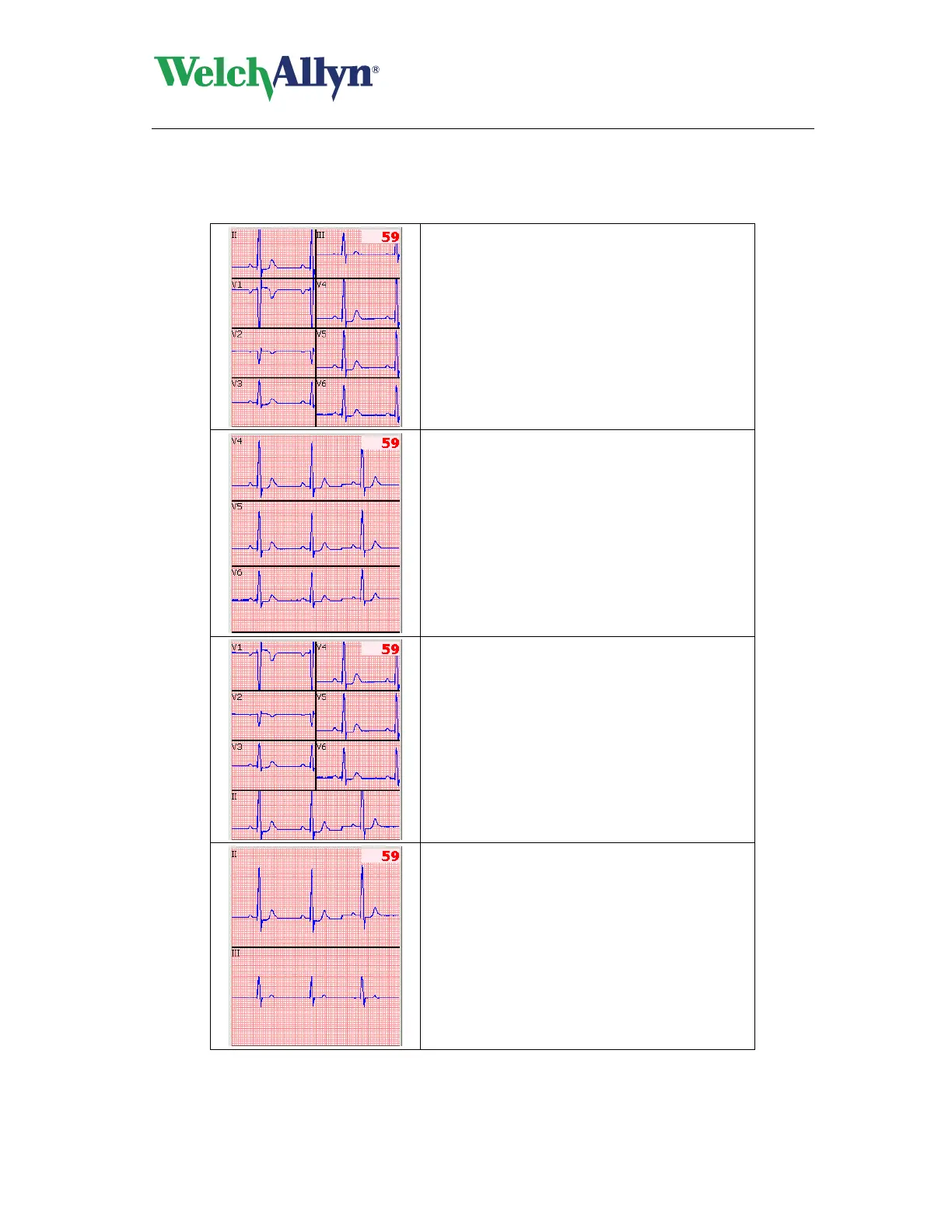

3.1 Views
Pocket ECG offers various views on an ECG. You can have a look at all twelve leads in three
different formats (6+1, 2 or 3 lead view). The fourth format, the 2x4 format, shows eight leads.
2x4 lead view
The leads are shown in a 2x4 configuration.
V1-V6 are shown by default. The leads in the
upper left and right window are adjustable
(P1&P2 in the Settings menu).
3 lead view
The 3 lead view displays 3 leads, you can
switch between the displayed leads with the
arrows in the command bar. In sequence the
following leads are shown:
I, II, III
aVR, aVL, aVF
V1-V3
V4-V6
L1-L3 (adjustable in the settings menu)
6+1 lead view
The 6+1 lead view displays 7 leads. The lead
at the bottom can be used as a kind of rhythm
strip. You can switch between the displayed
leads in the 6 smaller windows with the arrows
in the command bar. In sequence the following
leads are shown:
V1-V6 → I, II, III, aVR, aVL, aVF
In the bottom window lead C is shown, which
is adjustable in the settings menu.
2 lead view
The 2 lead view displays 2 leads, you can
switch between the displayed leads with the
arrows in the command bar. In sequence the
following leads are shown:
I, II → III, aVR → aVL, aVF → V1, V2 → V3,
V4 → V5, V6 → P1, P2
P1 & P2 are adjustable in the settings menu.
