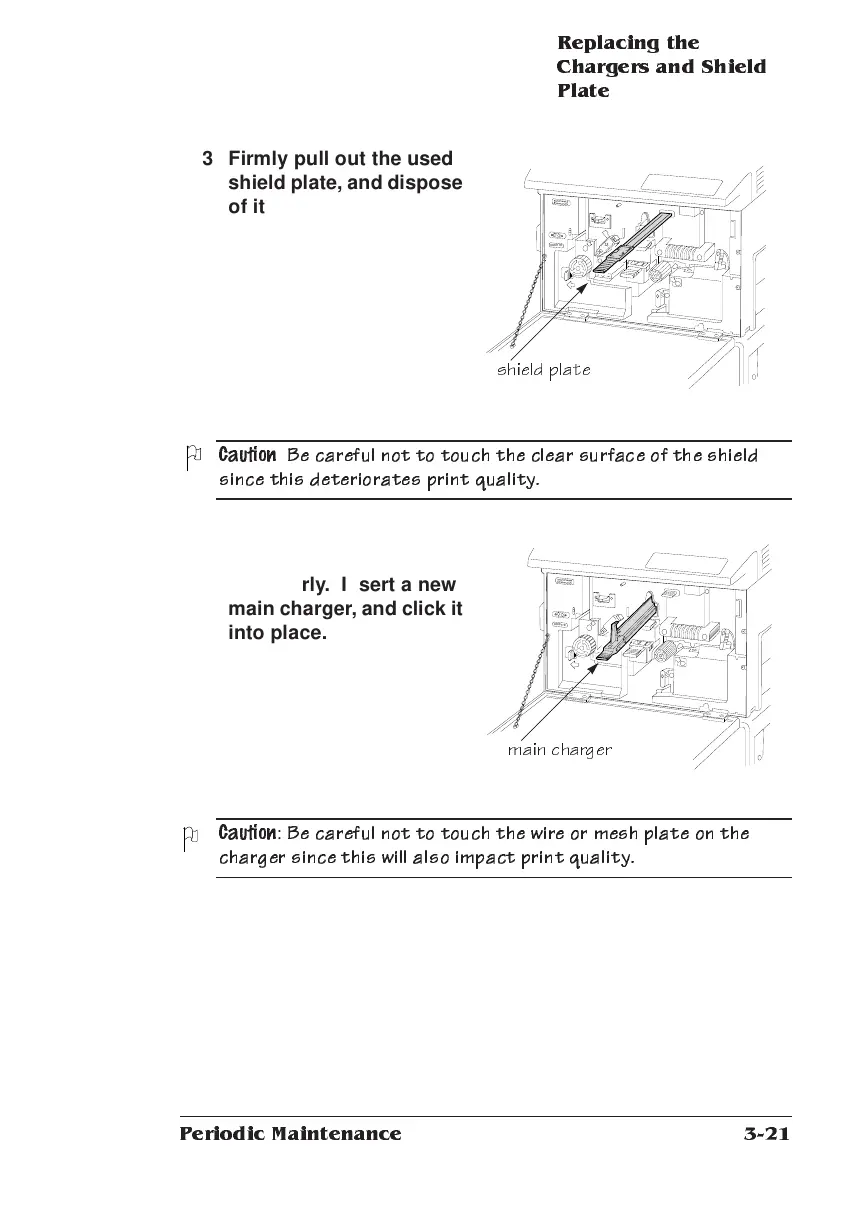

Replacing the
Ch argers a nd Shield
Plate
3-21
Periodic Maintena nce
3 Firmly pull out the used
shield plate, and dispose
of it properly. Insert the
new shield plate, and
click it into place.
Caution
:
Be carefu l not to touch the clear su rface of the shield
since this deterio rates print q uality.
4 Pull out the used main
charger, and dispose of
it properly. Insert a new
main charger, and click it
into place.
Caution
:
Be careful not to touc h the wire or mesh p late on the
char ger sinc e this will also im pact pr int q uality.
0000119
shiel d plate
0000119
m ain charger
To Next Page
