Troubleshooting

236 Xerox

WorkCentre

7220/7220i/7225/7225i Color Multifunction Printer

User Guide

WARNING: Internal parts of the printer can be hot. Use caution when doors and covers are open.

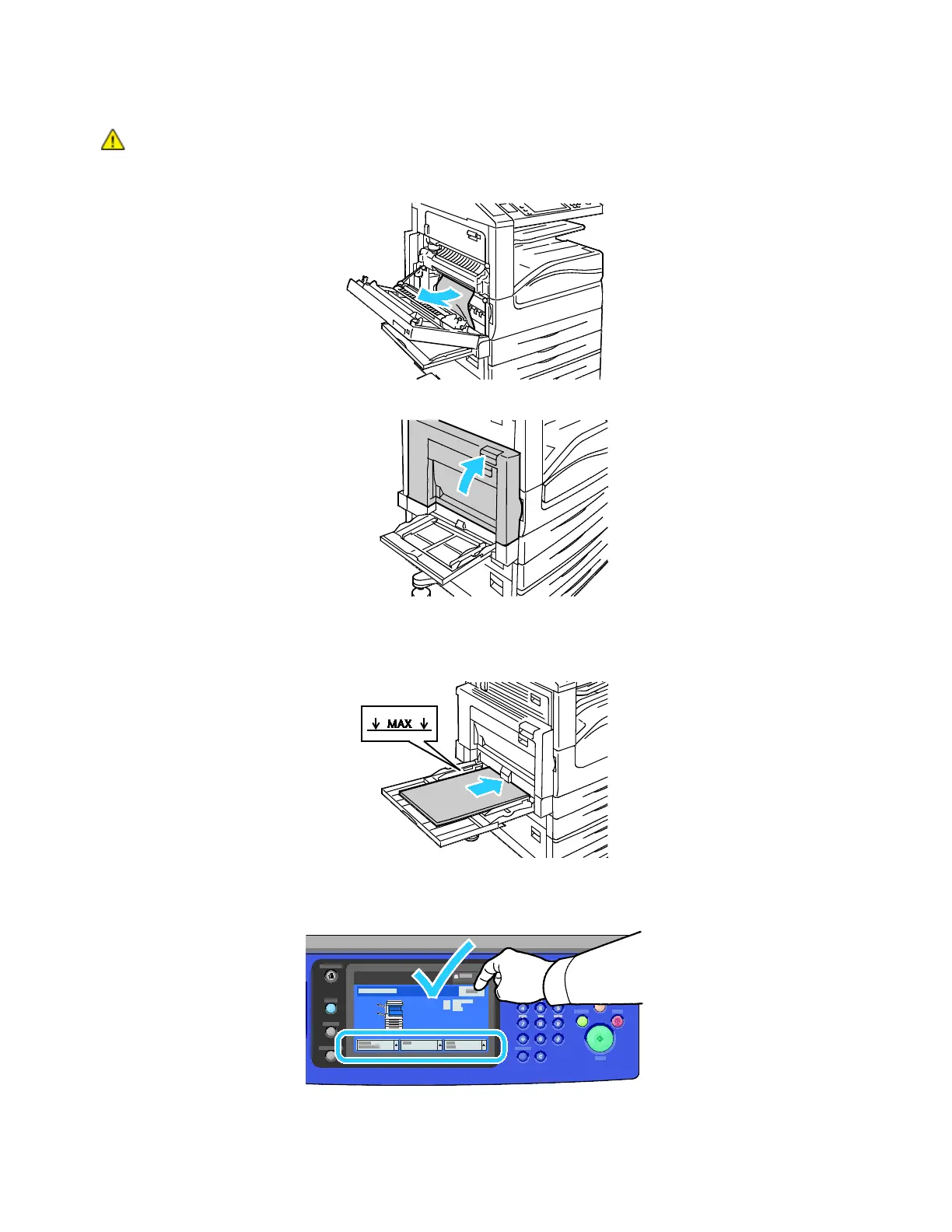

3. Remove any remaining jammed paper in tray 5.

4. Close door A.

5. Replace the paper in the tray.

Note: Do not load paper above the maximum fill line. Overfilling can cause paper jams.

6. Verify the size, type, and color of the paper. Change the selection for any incorrect setting.

7. On the printer touch screen, touch Confirm.
