Chapter 2: ZC702 Evaluation Kit Built-In Self-Test
18 www.xilinx.com ZC702 and ZVIK Getting Started Guide
UG926 (v3.0.1) February 12, 2013
Hardware BIST Board Setup
This section describes the hardware setup and use of the terminal program for running the
BIST application. It contains step-by-step instructions for board bring-up.
ZC702 Evaluation Board Setup
The default jumper and switch settings of the ZC702 board are shown in Figure 1-4,
Table 1-1, and Table 1- 2.
1. Set the SW16 switch as shown in Figure 2-1, where position 1, 2, 3, and 5 are switched to
the right and position 4 is switched to the left for the BIST to boot from Quad SPI device
and run the system demonstration utility.
X-Ref Target - Figure 2-1

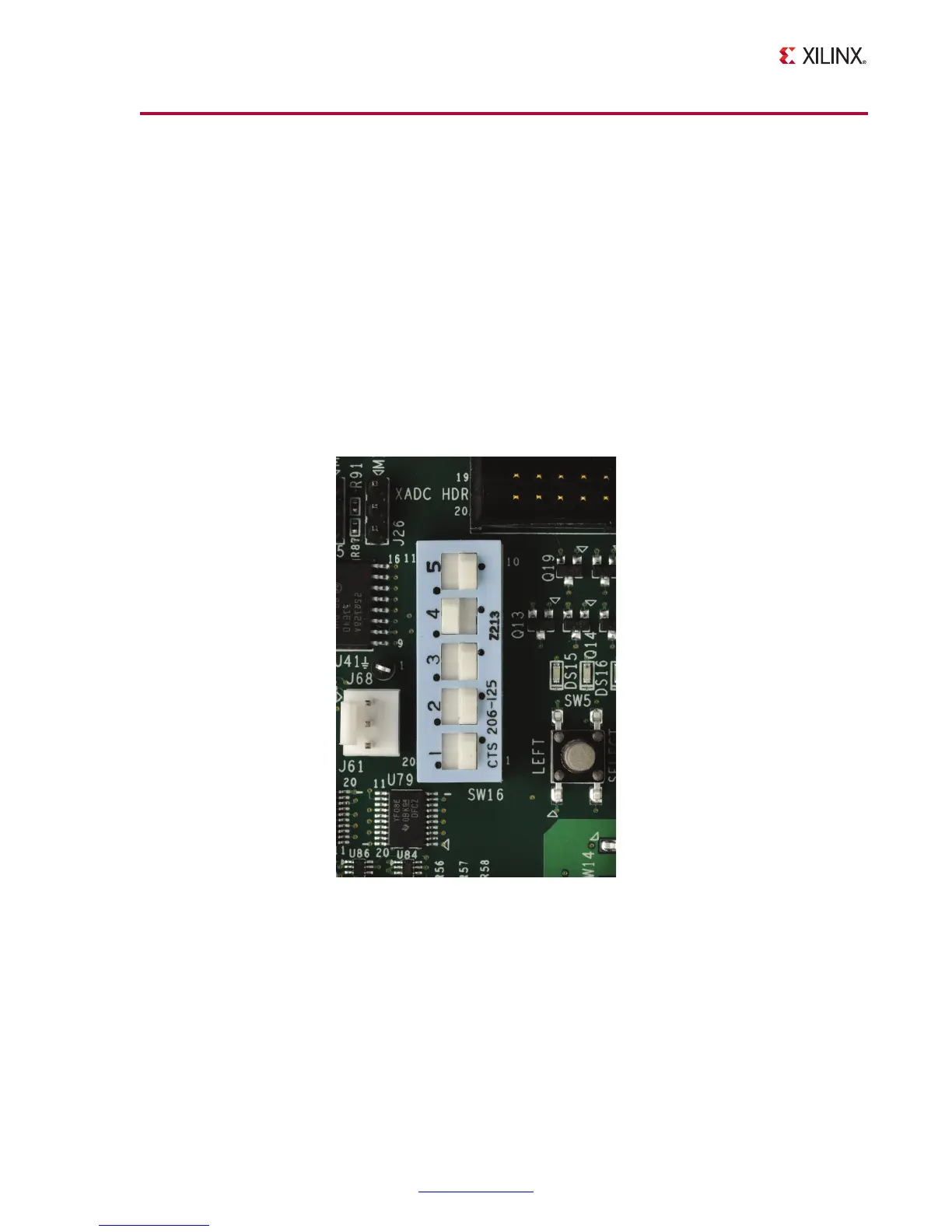

Figure 2-1: Settings for the Mode Switch to Boot from Quad SPI Mode
UG926_c2_01_061212
