Chapter 2: ZC702 Evaluation Kit Built-In Self-Test
24 www.xilinx.com ZC702 and ZVIK Getting Started Guide
UG926 (v3.0.1) February 12, 2013
Run the BIST Application
1. Start Tera Term or a comparable installed terminal program. Configure it to have the
following settings:
Baud = 115200, Data = 8, P = None, Stop = 1 and Flow = None.
2. Press POR_B (SW1) located in the top left corner of the ZC702 board and view the BIST
output on the terminal window (Figure 2-7).
3. Select each relevant test and observe the test results.
For more information on the BIST software and additional tutorials, including how to restore
the default content of the onboard Quad SPI flash nonvolatile storage, see the ZC702
resource page [Ref 4].
For more detailed information about these BIST tests, refer to UG850
, ZC702 Evaluation
Board for the Zynq-7000 XC7Z020 All Programmable SoC User Guide. Also refer to the ZC702
BIST User Guide found in the Docs & Designs tab on www.xilinx.com/zc702
, that is, the
ZC702 BIST PDF file, XTP180.
X-Ref Target - Figure 2-7

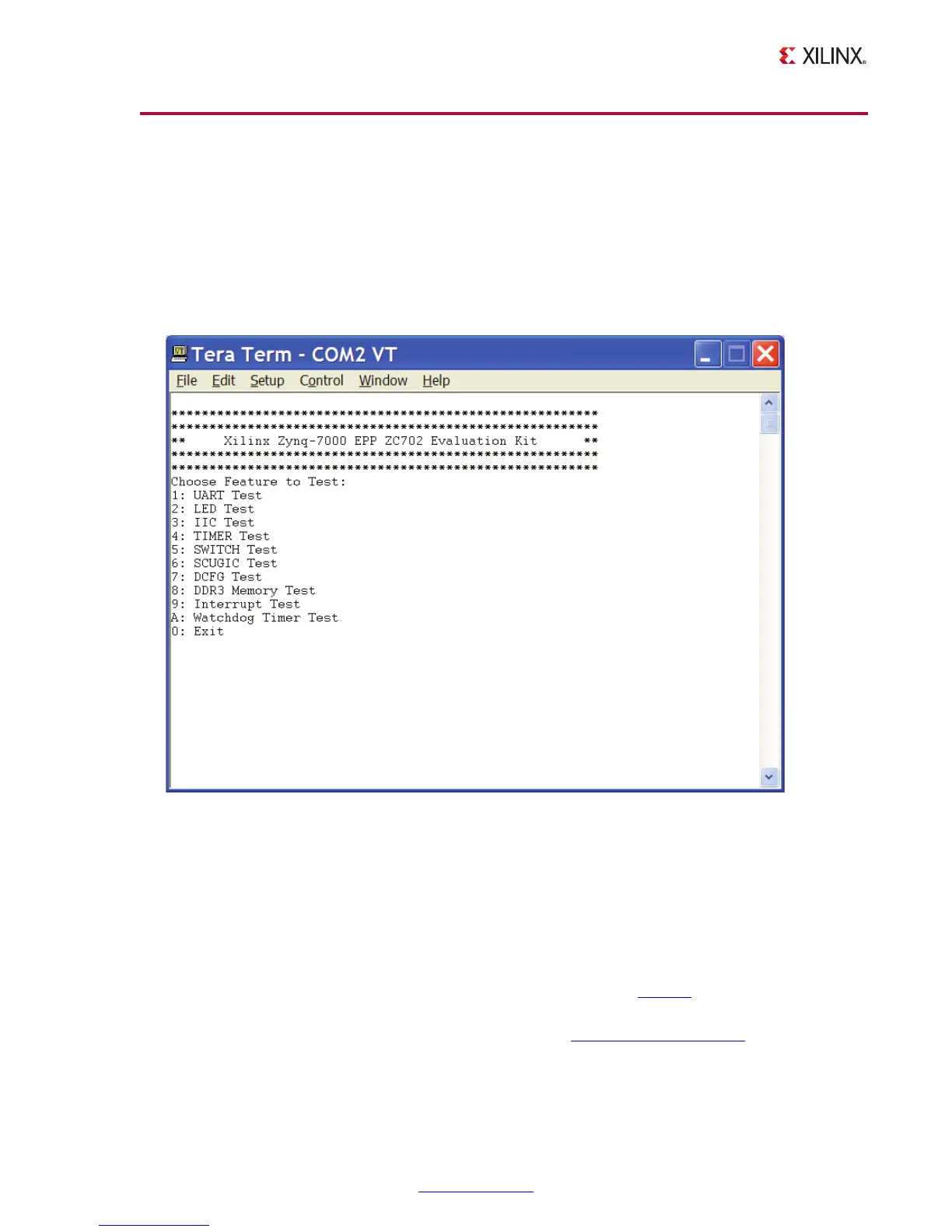

Figure 2-7: BIST Main Menu
UG926_c2_07_061412
