Xinje DS2-41P5-AS User Manual

30

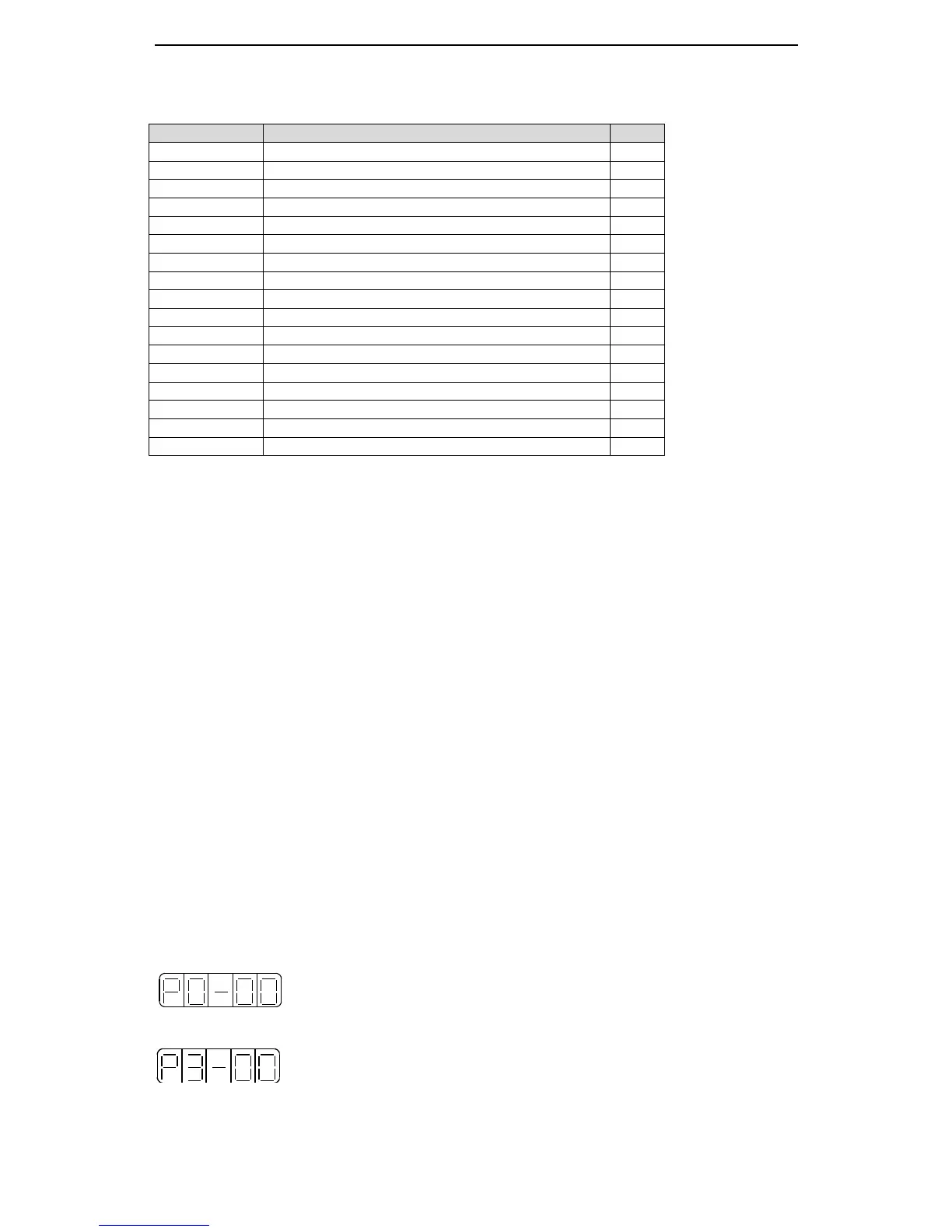

4-4-4．Check Alarm Information (F3-XX)
Member No.
Description
Unit
F3-00
Current alarm code ※1
F3-01
Current warn code ※2
F3-02
Alarm/warn code 1 when alarm
F3-03
U phase current when alarm
A
F3-04
V phase current when alarm
A
F3-05
DC bus-voltage when alarm
V
F3-06
IGBT module temperature when alarm
℃
F3-07
Speed when alarm
rpm
F3-08
Internal torque command when alarm
%
F3-09
V-REF value when alarm
V
F3-10
T-REF value when alarm
V
F3-11
Alarm/warn code 2 when alarm
F3-12
Alarm/warn code 3 when alarm
F3-13
Alarm/warn code 4 when alarm
F3-14
Alarm/warn code 5 when alarm
F3-15
Alarm/warn code 6 when alarm
F3-16
Alarm/warn code 7 when alarm
※1: F3-00=0 indicates that there is no alarm.
※2: F3-01=0 indicates that there is no warn.
4-4-5．Reset Parameters to Default (F4-XX)
Reset all the parameters to default value: F4-00 = 1.
Please make the servo OFF before the operation.
4-4-6. External monitoring (F5-XX)
Select F5-00 in auxiliary function, the panel displays “C-OUT” which means external
monitoring mode, COM1 is effective, operate panel is ineffective. At this time user can
debug the servo via PC.
Press STATUS/ESC to return.
4-5．Alarm (E-XX)
The alarm code will show when there is error in the drive. Press ENTER to reset the alarm.
If the servo is OFF caused by alarm, it is no need to reset the alarm.
Note: please find out the alarm reason before reset the alarm.
4-6．Example
The example below shows how to change parameter P3-09 from 2000 to 3000.
1. Press the STATUS/ESC key to select the parameter setting mode.
2. At this time the second LED is blinking, and press INC or DEC key to set the group No.
to 3. Press ENTER key to confirm.
3. At this time the last LED is blinking, and press INC or DEC key to set the member No.
to 9. Press and hold ENTER key to confirm.
