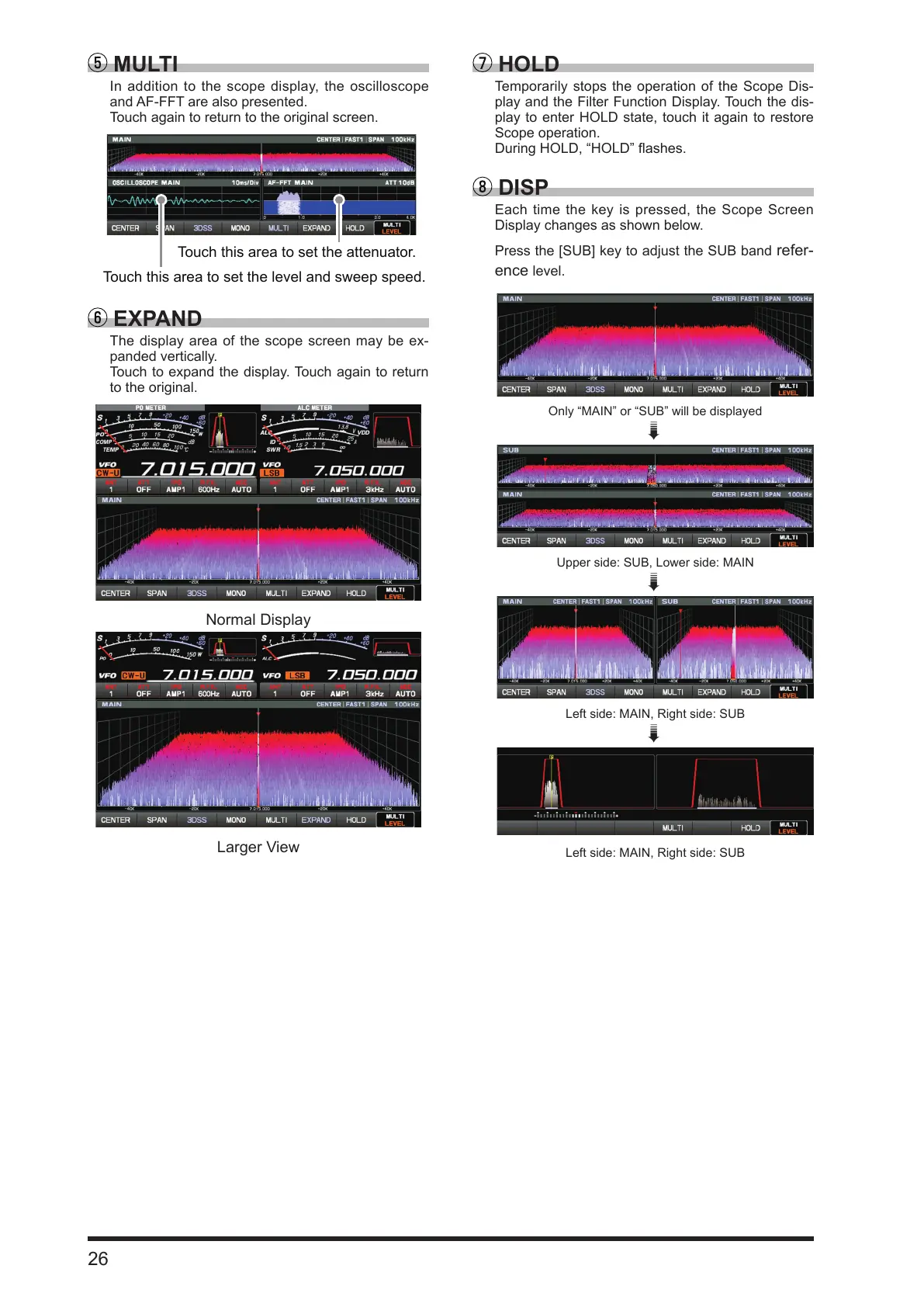

26
MULTI
In addition to the scope display, the oscilloscope
and AF-FFT are also presented.
Touch again to return to the original screen.
Touch this area to set the level and sweep speed.
Touch this area to set the attenuator.
EXPAND
The display area of the scope screen may be ex-
panded vertically.
Touch to expand the display. Touch again to return
to the original.
Normal Display
Larger View
HOLD
Temporarily stops the operation of the Scope Dis-
play and the Filter Function Display. Touch the dis-
play to enter HOLD state, touch it again to restore
Scope operation.
During HOLD, “HOLD” ashes.
DISP
Each time the key is pressed, the Scope Screen
Display changes as shown below.
Press the [SUB] key to adjust the SUB band
refer-
ence
level.
Only “MAIN” or “SUB” will be displayed
à
Upper side: SUB, Lower side: MAIN
à
Left side: MAIN, Right side: SUB
à
Left side: MAIN, Right side: SUB
To Next Page
