Yamaha 01v 96 User Manual

01V96
12
430 (Not included Screw Heads) 436 (Included Screw Heads)
150
540
350101
548
350

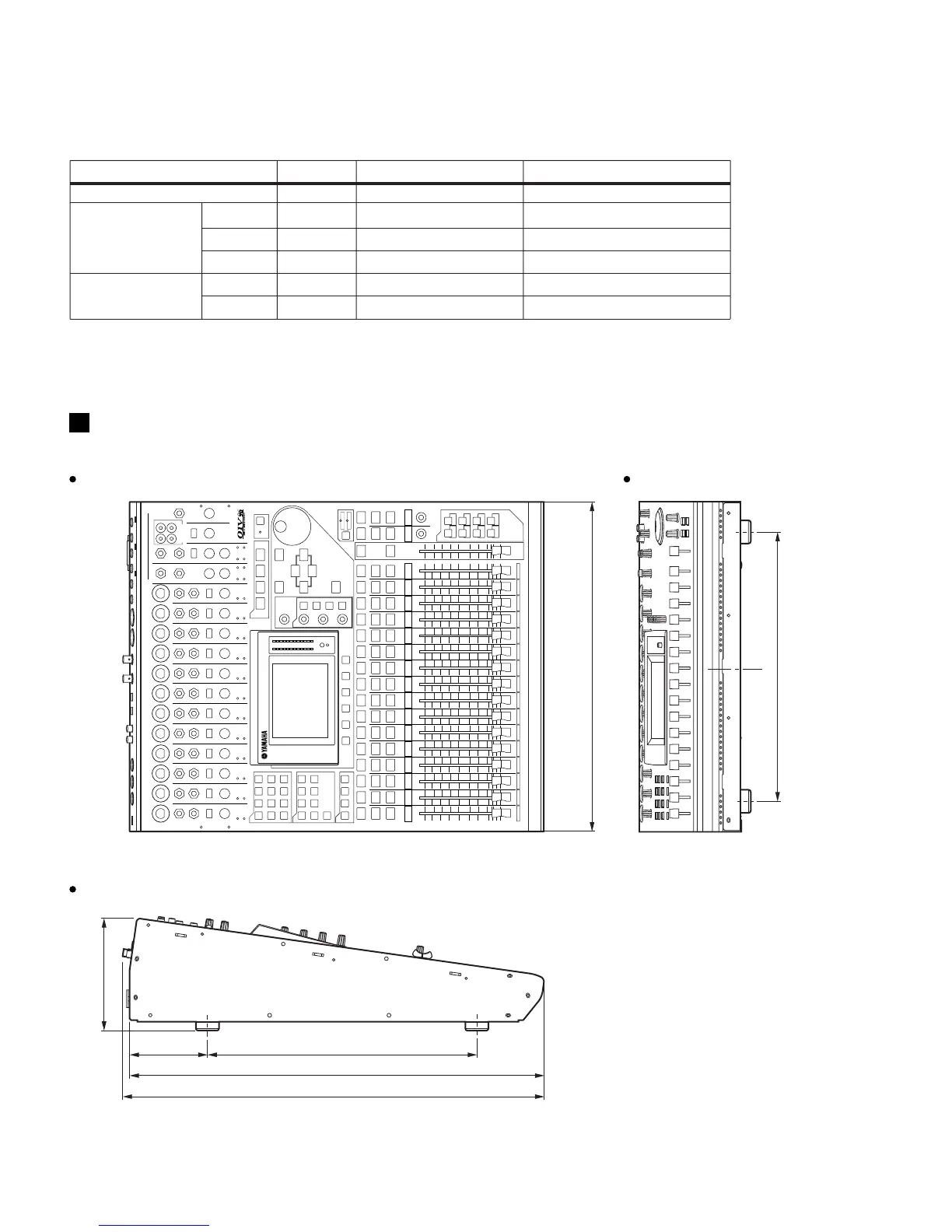

DIMENSIONS
Top view
Side view
Control I/O Spec
I/O Port Format Level Connector in Console
TO HOST USB USB 0 V–3.3 V B type USB connector
MIDI
IN
*1
*1. MIDI IN can use as TIME CODE IN MTC.
MIDI — DIN Connector 5P
OUT
MIDI — DIN Connector 5P
THRU
MIDI — DIN Connector 5P
WORD CLOCK
IN
— TTL/75 Ω BNC Connector
OUT
— TTL/75 Ω BNC Connector
Units: mm
（単位）
Front view
（寸法図）
（コントロールI/O仕様）

Yamaha 01v 96 Specifications

General

Brand	Yamaha
Model	01v 96
Category	Music Mixer
Language	English
