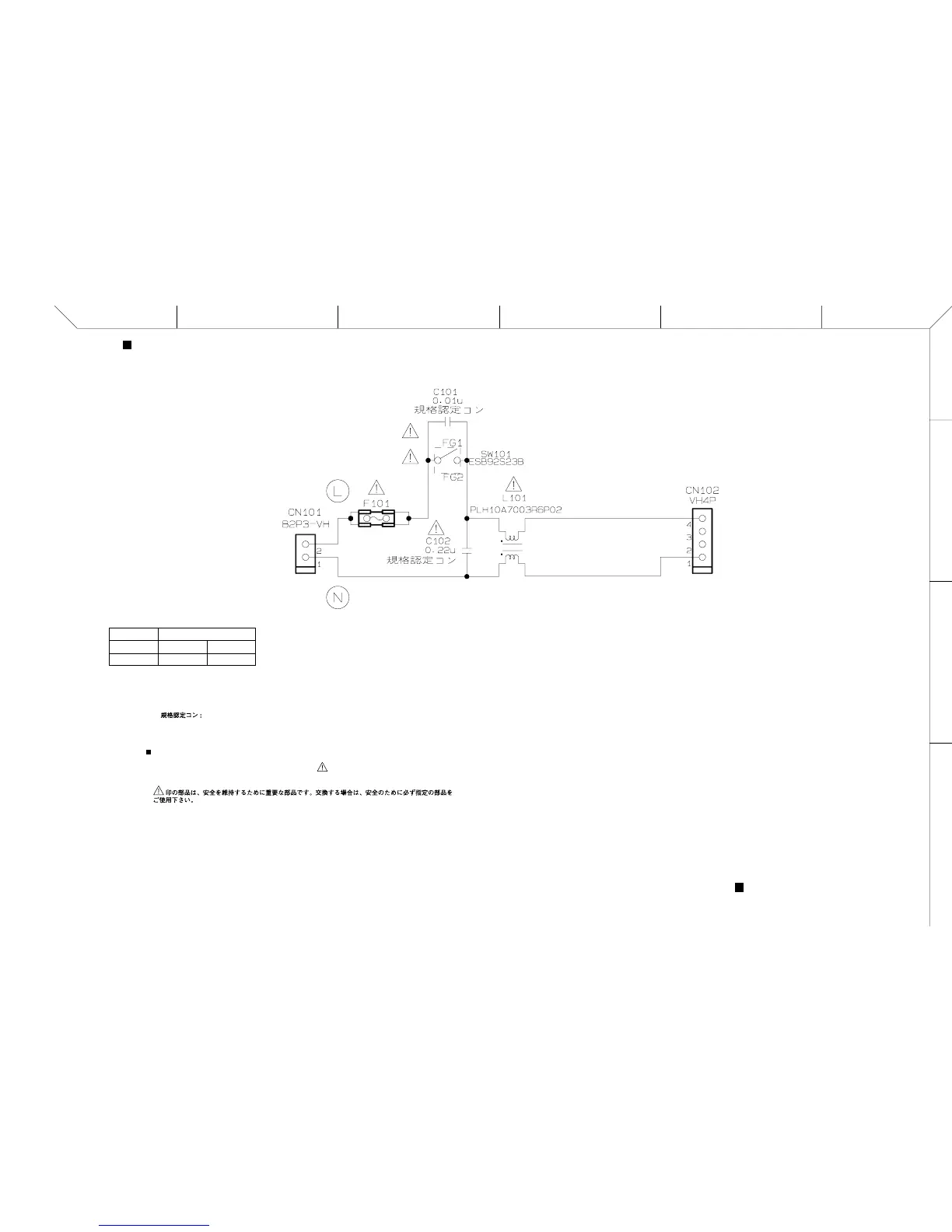

AC CIRCUIT DIAGRAM (01V96)
AC CIRCUIT DIAGRAM (01V96)
01V96
28CC1-8826684-1
9
Capacitor
Components having special characteristics are marked and must be replaced with parts having
specifications equal to those originally installed.
TO SERVICE PERSONNEL
Critical Components Information
to AC Inlet Assembly
（AC
イ
ン
レ
ッ
ト
Ass'y）
POWER ON/OFF
to Power Transformer
Destination
J, U, V
H, B, W, K
F101
KB000790
KB000750
T4AL 250V
T2AL 250V
196
198
Table of Contents
Table of Contents
1
Lithium Battery Handling
3
Specifications
4
General Spec
4
EQ Parameters
7
Gate Parameters
8
Comp Parameters
8
Libraries
9
Analog Input Spec
10
Analog Output Spec
10
I/O Slot Spec
11
Digital Output Spec
11
Digital Input Spec
11
Top View
12
Side View
12
Control I/O Spec
12
Front View
12
Dimensions
12
Control Panel
13
Panel Layout
13
AD Input Section
14
Monitor out & Headphones Section
14
Channel Strip Section
15
STEREO Section
15
ST in Section
16
FADER MODE Section
16
DISPLAY ACCESS Section
16
LAYER Section
16
SCENE MEMORY Section
17
SELECTED CHANNEL Section
17
Display Section
17
USER DEFINED KEYS Section
18
Data Entry Section
18
SOLO Section
18
Rear Panel
19
Phantom +48V
19
AD Output Section
19
Power Section
20
SLOT Section
20
Digital I/O Section
20
MIDI/Control Section
20
Bottom Assembly
21
Circuit Board Layout
21
Control Panel Assembly
22
Disassembly Procedure
23
Replacing the Lithium Battery
24
DCA Circuit Board
24
MAIN Circuit Board
24
Bottom Assembly Section
24
AC Circuit Board
26
AC Inlet Assembly
26
Control Panel Assembly Section
27
ADA Circuit Board
27
HA Circuit Board
27
FD Circuit Board
28
LCD Circuit Board and LCD
29
PN1 (1/2) and PN1 (2/2) Circuit Boards
30
Installing an Optional Card
32
Lsi Pin Description
33
Hd6417709Sf133 (X2081A00) Cpu (Sh3)
34
YSS910-S (XV988A00) DSP6 (Digital Signal Processor)
35
YSS919B-H (XZ693A00) DSP7 (Digital Signal Processor)
36
SGH603064F-62F (XV973A00) Gate Array
37
YM3436DK (XG948E00) DIR2 (Digital Format Interface Receiver)
37
Mbcg61594-130 (X3299A00) Atsc2A
38
CS8415A-CS (X2089A00) dir (Digital Audio Interface Receiver)
39
S1D13704F00A100 (X3498A00) LCDC (LCD Controller)
39
CS5361-KS (X3447A00) ADC (Analog to Digital Converter)
40
CS8405A-CS (XZ349A00) DIT (Digital Audio Interface Transmitter)
40
AK4393-VS-E2 (XW029A00) DAC (Digital to Analog Converter)
40
IC Block Diagram
41
DCCOM (AC) Circuit Board
46
Circuit Boards
46
DCCOM (DCA 1/5) Circuit Board
47
DCD Circuit Board (X3858B0)
48
FD Circuit Board (X3423B0)
50
HACOM (ADA) Circuit Board (X3422B0)
54
HACOM (HA) Circuit Board (X3422B0)
56
MAIN Circuit Board (X3421B0)
62
PNCOM (LCD) Circuit Board (X3424B0)
70
PNCOM (PN1 (1/2, 2/2)) Circuit Board (X3424B0)
70
PNCOM (PN2) Circuit Board (X3424B0)
72
PNCOM (PN2) Circuit Board
74
Program Version Check Method
76
Initialization
76
Writing Programs
76
Inspections
76
Analog In/Out Word Clock Int
77
Group Inspection
77
Recall Inspection
77
2Tr out L/R
77
Monitor out L/R
78
Phones out L/R
78
2Tr in Analog L/R
78
Gain Min
80
DIGITAL IN/OUT Inspection
81
2Tr Digital in
81
Operation Method
90
Screen Explanation
90
List of Check Items
90
Service Check Program
90
PLLP2 Test
91
Battery Test
91
Service Check Connection Diagram
91
Service Check
91
2TR IN/OUT (DIO) Test
92
ADAT Test
92
WORD CLOCK Test
92
MIDI Test
92
LCD Test
93
PANEL LED Test
93
PANEL SW Test
93
ENCODER Test
94
Message Log
95
Panel SW Operation Order Screen
95
Audio Check
98
Outline
98
Check Contents
99
Initializing the 01V96
114
Transmitting Parameter Settings Via MIDI (Bulk Dump)
115
Checking the Battery and the System Version
119
Calibrating the Faders
119
System Common Message
120
Control Change
120
Format Details
120
Exclusive Message
120
MIDI Data Format
120
Program Change
121
Timing Clock
121
Active Sensing
121
System Reset
121
Equalizer Library Bulk Dump Format
124
Equalizer Library Bulk Dump Request Format
124
Program Change Table Bulk Dump Request Format
124
Program Change Table Bulk Dump Format
124
Compressor Library Bulk Dump Request Format
125
Gate Library Bulk Dump Format
125
Gate Library Bulk Dump Request Format
125
Effect Library Bulk Dump Format
125
Channel Library Bulk Dump Request Format
126
Input Patch Library Bulk Dump Format
126
Input Patch Library Bulk Dump Request Format
126
Output Patch Library Bulk Dump Format
126
Basic Behavior
127
Plug-In Effect Card Bulk Dump Format
127
Plug-In Effect Card Bulk Dump Request Format
127
Parameter Change
127
MIDI Implementation Chart
134
Parts List
135
Overall Assembly
136
Electrical Parts
144
Block Diagram
190
Block Diagram
191
Overall Connector Circuit Diagram
196
AC Circuit Diagram
197
DCA Circuit Diagram
198
DCD Circuit Diagram
199
FD Circuit Diagram
200
ADA Circuit Diagram
205
HA Circuit Diagram
208
Main Circuit Diagram
211
LCD Circuit Diagram
223
PN1 Circuit Diagram
224
PN2 Circuit Diagram
227
