25
01V96
MAIN
DCA
DCD

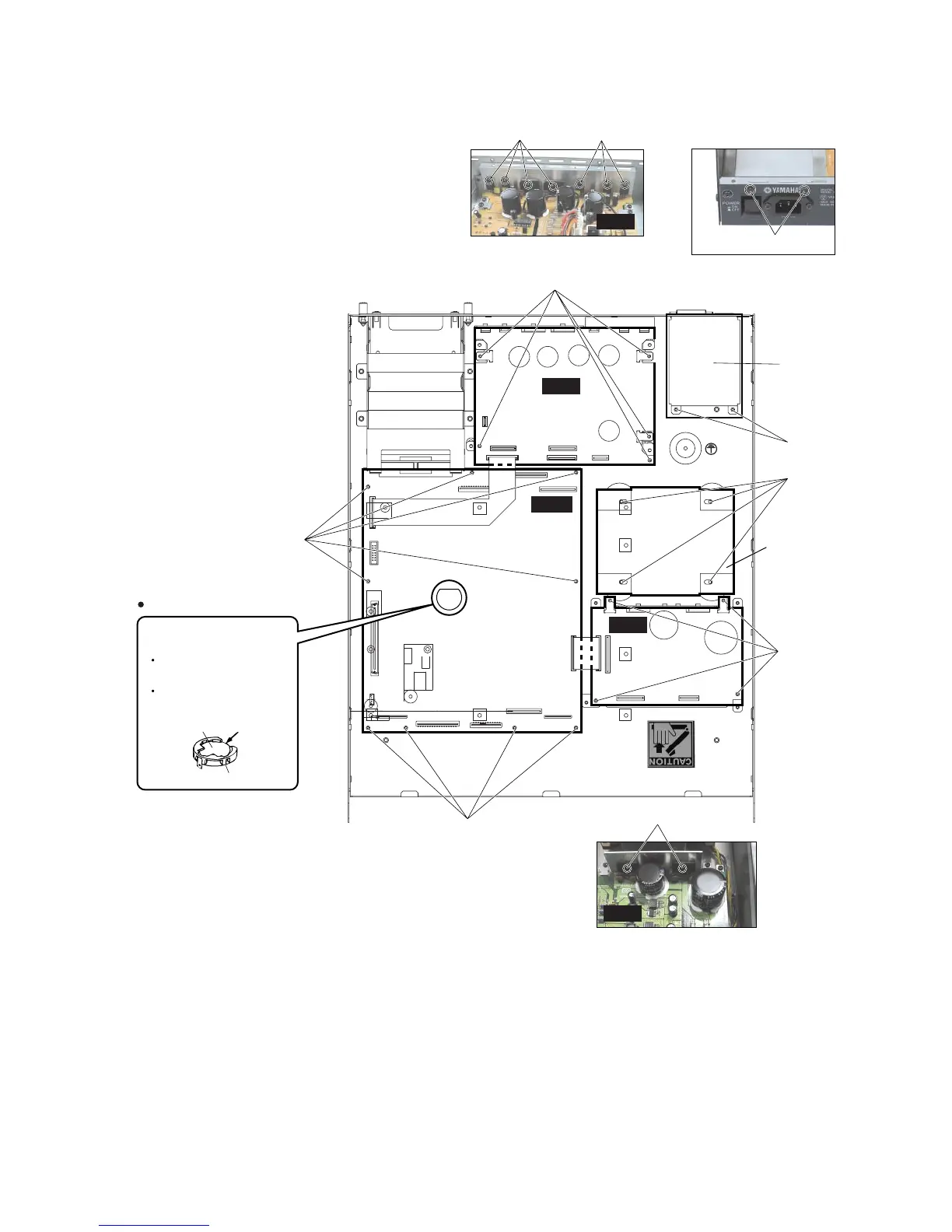

<Top view>
AC shield plate
[291]
[170]
[220]
[130]
[130]
Battery VN103500
VN103600(Battery holder for VN103500)
Notice for back-up battery removal
Push the battery as shown in figure,
then the battery will pop up.
Druk de batterij naar beneden zoals
aangeven in de tekening de batterij
springt dan naar voren.
Battery
Battery holder
[221]
DCD
DCA
[110]
[170]
<Front view>
<Front view>
<Rear view>
Power transformer
（電源トランス）
Lithium Battery（リチウム電池）
（ACシールド金具
[290]
[222]
[110]: Bind Head Tapping Screw-B 4.0X8 MFZN2BL (EG340190)
[130]: Bind Head Tapping Screw-B 3.0X6 MFZN2BL (EP600230)
[170]: Bind Head Tapping Screw-B 3.0X6 MFZN2BL (EP600230)
[220]: Bind Head Tapping Screw-B SP 3.0X10 MFZN2BL (VH741100)
[221]: Bind Head Screw SP 3.0X12 MFZN2Y (VB763800)
[222]: Bind Head Tapping Screw-B 3.0X6 MFZN2BL (EP600230)
[290]: Bind Head Tapping Screw-B 3.0X6 MFZN2BL (EP600230)
[291]: Bind Head Tapping Screw-B SP 3.0X10 MFZN2BL (VH741100)
Fig. 2
Photo.2 (写真2)
Photo.4 (写真4)
Photo.3 (写真3)
(図2)
(＋バインド B タイト)
(＋バインド B タイト)
(＋バインド B タイト)
(＋バインド B タイト)
(＋バインド B タイト)
(＋バインド B タイト)
(＋バインド B タイト)
(＋バインド小ネジ)
To Next Page
