01V96

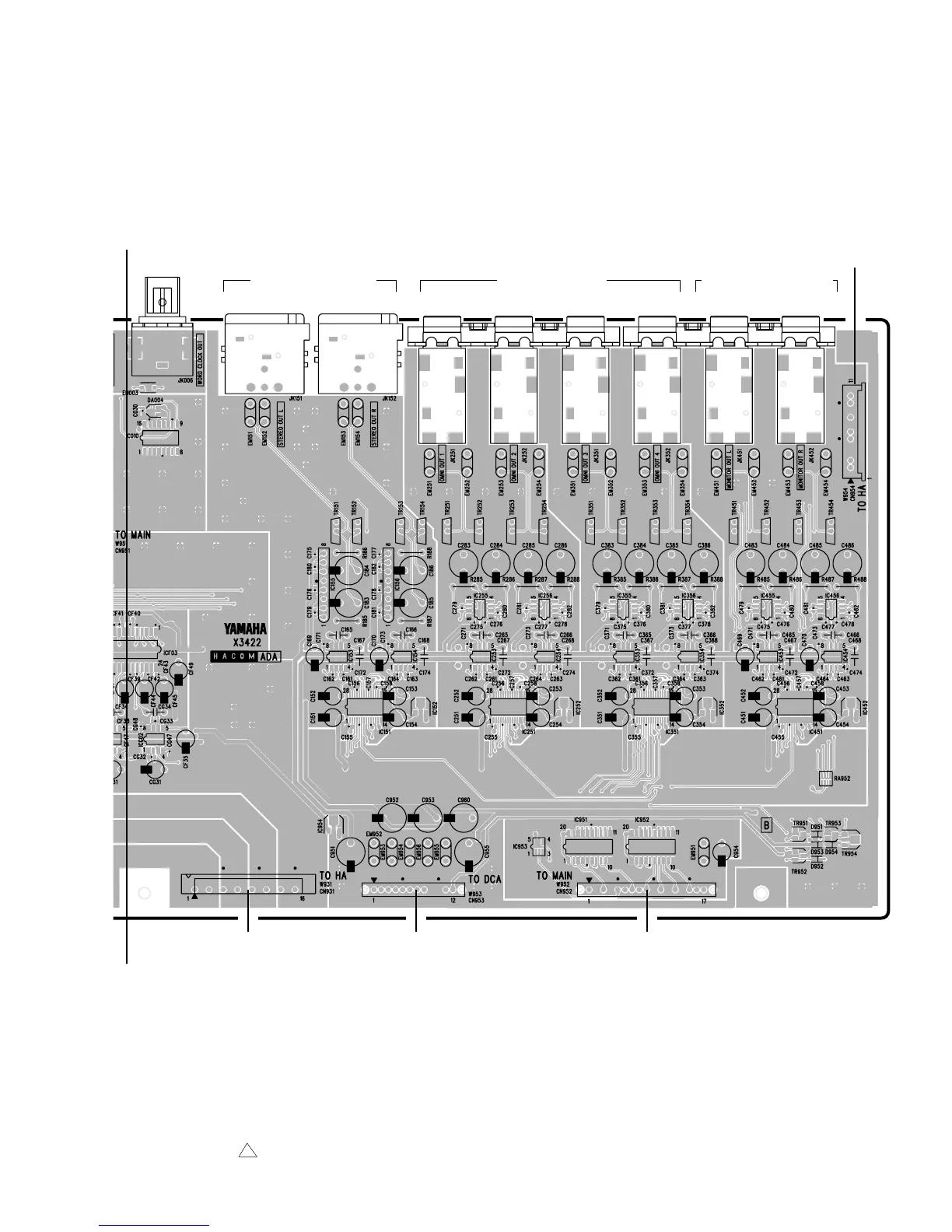

Component side

WORD CLOCK

OUT

STEREO OUT (BAL)

LR LR

to HA-CN901 to DCA 1/5-CN305 to MAIN-CN501

to HA-CN552

OMNI OUT (BAL) MONITOR OUT (BAL)

1234

2NAP-V989280-2 1

（部品側）

Table of Contents1
Lithium Battery Handling3
Specifications4
- General Spec4
- EQ Parameters7
- Gate Parameters8
- Comp Parameters8
- Libraries9
- Analog Input Spec10
- Analog Output Spec10
- I/O Slot Spec11
- Digital Output Spec11
- Digital Input Spec11
- Top View12
- Side View12
- Control I/O Spec12
- Front View12
Dimensions12
Control Panel13
Panel Layout13
- AD Input Section14
- Monitor out & Headphones Section14
- Channel Strip Section15
- STEREO Section15
- ST in Section16
- FADER MODE Section16
- DISPLAY ACCESS Section16
- LAYER Section16
- SCENE MEMORY Section17
- SELECTED CHANNEL Section17
- Display Section17
- USER DEFINED KEYS Section18
- Data Entry Section18
- SOLO Section18
- Rear Panel19
- Phantom +48V19
- AD Output Section19
- Power Section20
- SLOT Section20
- Digital I/O Section20
- MIDI/Control Section20
- Bottom Assembly21
Circuit Board Layout21
Control Panel Assembly22
Disassembly Procedure23
- Replacing the Lithium Battery24
- DCA Circuit Board24
- MAIN Circuit Board24
- Bottom Assembly Section24
- AC Circuit Board26
- AC Inlet Assembly26
- Control Panel Assembly Section27
- ADA Circuit Board27
- HA Circuit Board27
- FD Circuit Board28
- LCD Circuit Board and LCD29
- PN1 (1/2) and PN1 (2/2) Circuit Boards30
Installing an Optional Card32
Lsi Pin Description33
- Hd6417709Sf133 (X2081A00) Cpu (Sh3)34
- YSS910-S (XV988A00) DSP6 (Digital Signal Processor)35
- YSS919B-H (XZ693A00) DSP7 (Digital Signal Processor)36
- SGH603064F-62F (XV973A00) Gate Array37
- YM3436DK (XG948E00) DIR2 (Digital Format Interface Receiver)37
- Mbcg61594-130 (X3299A00) Atsc2A38
- CS8415A-CS (X2089A00) dir (Digital Audio Interface Receiver)39
- S1D13704F00A100 (X3498A00) LCDC (LCD Controller)39
- CS5361-KS (X3447A00) ADC (Analog to Digital Converter)40
- CS8405A-CS (XZ349A00) DIT (Digital Audio Interface Transmitter)40
- AK4393-VS-E2 (XW029A00) DAC (Digital to Analog Converter)40
IC Block Diagram41
DCCOM (AC) Circuit Board46
Circuit Boards46
- DCCOM (DCA 1/5) Circuit Board47
- DCD Circuit Board (X3858B0)48
- FD Circuit Board (X3423B0)50
- HACOM (ADA) Circuit Board (X3422B0)54
- HACOM (HA) Circuit Board (X3422B0)56
- MAIN Circuit Board (X3421B0)62
- PNCOM (LCD) Circuit Board (X3424B0)70
- PNCOM (PN1 (1/2, 2/2)) Circuit Board (X3424B0)70
- PNCOM (PN2) Circuit Board (X3424B0)72
- PNCOM (PN2) Circuit Board74
- Program Version Check Method76
- Initialization76
- Writing Programs76
Inspections76
- Analog In/Out Word Clock Int77
- Group Inspection77
- Recall Inspection77
- 2Tr out L/R77
- Monitor out L/R78
- Phones out L/R78
- 2Tr in Analog L/R78
- Gain Min80
- DIGITAL IN/OUT Inspection81
- 2Tr Digital in81
- Operation Method90
- Screen Explanation90
- List of Check Items90
Service Check Program90
- PLLP2 Test91
- Battery Test91
- Service Check Connection Diagram91
- Service Check91
- 2TR IN/OUT (DIO) Test92
- ADAT Test92
- WORD CLOCK Test92
- MIDI Test92
- LCD Test93
- PANEL LED Test93
- PANEL SW Test93
- ENCODER Test94
- Message Log95
- Panel SW Operation Order Screen95
- Audio Check98
- Outline98
- Check Contents99
Initializing the 01V96114
Transmitting Parameter Settings Via MIDI (Bulk Dump)115
Checking the Battery and the System Version119
Calibrating the Faders119
- System Common Message120
- Control Change120
- Format Details120
- Exclusive Message120
MIDI Data Format120
- Program Change121
- Timing Clock121
- Active Sensing121
- System Reset121
- Equalizer Library Bulk Dump Format124
- Equalizer Library Bulk Dump Request Format124
- Program Change Table Bulk Dump Request Format124
- Program Change Table Bulk Dump Format124
- Compressor Library Bulk Dump Request Format125
- Gate Library Bulk Dump Format125
- Gate Library Bulk Dump Request Format125
- Effect Library Bulk Dump Format125
- Channel Library Bulk Dump Request Format126
- Input Patch Library Bulk Dump Format126
- Input Patch Library Bulk Dump Request Format126
- Output Patch Library Bulk Dump Format126
- Basic Behavior127
- Plug-In Effect Card Bulk Dump Format127
- Plug-In Effect Card Bulk Dump Request Format127
- Parameter Change127
MIDI Implementation Chart134
Parts List135
- Overall Assembly136
- Electrical Parts144
Block Diagram190
Block Diagram191
Overall Connector Circuit Diagram196
- AC Circuit Diagram197
- DCA Circuit Diagram198
- DCD Circuit Diagram199
- FD Circuit Diagram200
- ADA Circuit Diagram205
- HA Circuit Diagram208
- Main Circuit Diagram211
- LCD Circuit Diagram223
- PN1 Circuit Diagram224
- PN2 Circuit Diagram227
