4-8

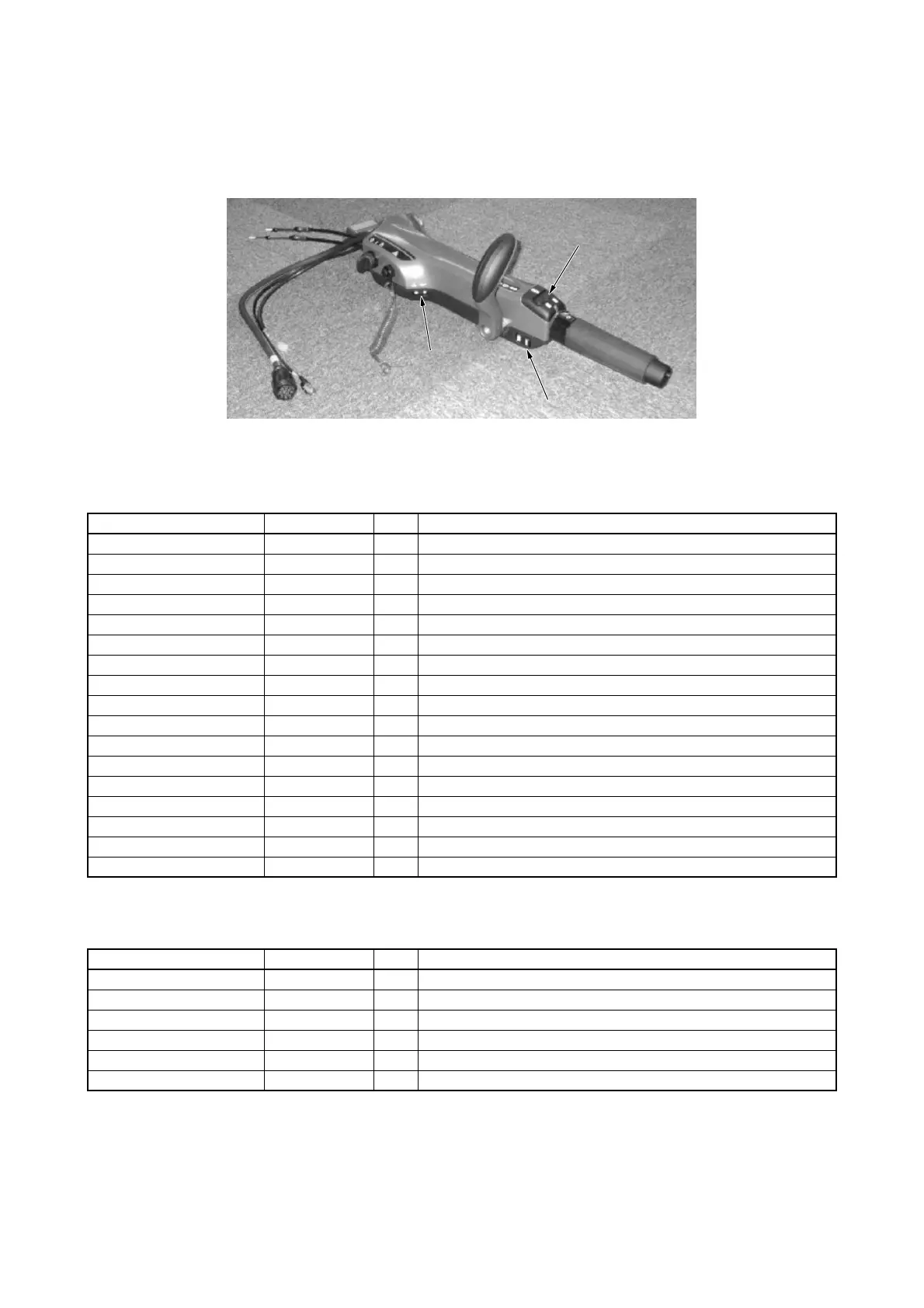

6X4 MULTI-FUNCTION TILLER HANDLE
MULTI-FUNCTION TILLER HANDLE KIT (FOR JAPAN)
The tiller handle kit is prepared for F50 to F90.
For installation procedure, see the instruction supplied with the kit.
TILLER HANDLE KIT CONTENTS
F80B, F90B
KIT P/N:6X4-42103-11
F50F, FT50G, F60C, FT60D
KIT P/N:6X4-42103-22
Part name Part No. Q’ty Remarks
Pipe 1 67G-42541-00 1
Grommet 68V-42725-10 1
Corrugated tube 6G5-83557-00 1 85 mm (3.3 in.)
Corrugated tube 6K3-83557-00 1 65 mm (2.6 in.)
Stay 6X4-24364-00 1
Tiller handle assy 6X4-42101-31 1 With PTT switch (Side), LED indicators
Ext. bracket
6X4-42121-00-4D
1 45 mm (Short)
Stud bolt 90116-10031 2 M10-70 mm
Lock nut 90185-10051 2 M10
Corrugated tube 90447-22007 1 230 mm (9.1 in.)
Clamp 90465-13M24 5
Clamp 90465-13M30 1
Bolt 97595-06516 2
Fuel pipe clamp 63D-24367-00 1
Protector 6X4-42735-00 1
Steering friction assy 67G-42508-10 1
Setup manual 6X4-2819K-01 1 Japanese
Part name Part No. Q’ty Remarks
Grommet 2 6C5-42725-30 1
Tiller handle assy 6X4-42101-V2 1 With PTT switch (Side), LED indicators
Lock nut 90185-10051 2 M10
Clamp 90465-13M36 1
Steering friction assy 6C5-42508-00 1
Setup manual 6X4-2819K-01 1 Japanese
Troll RPM switch
(Fuel injected F50- F90)
Troll RPM switch
(Fuel injected F50-
F90)
PTT switch (Side)
LED indicators
* Overheat warning
* Oil warning
PTT switch (Side)
LED indicators
* Overheat warning
* Oil warning
