WIRING DIAGRAMS
INTERCHANGEABILITY BETWEEN TACHOMETER AND ENGINE
The wire-harness adapter is available for connection between 2006 former engine and 2007 later
gauge or between 2006 former gauge and 2007 later engine. The water detection warning and
check engine warning are no longer activated if either 2007 later engine or 2007 later gauge is
installed.

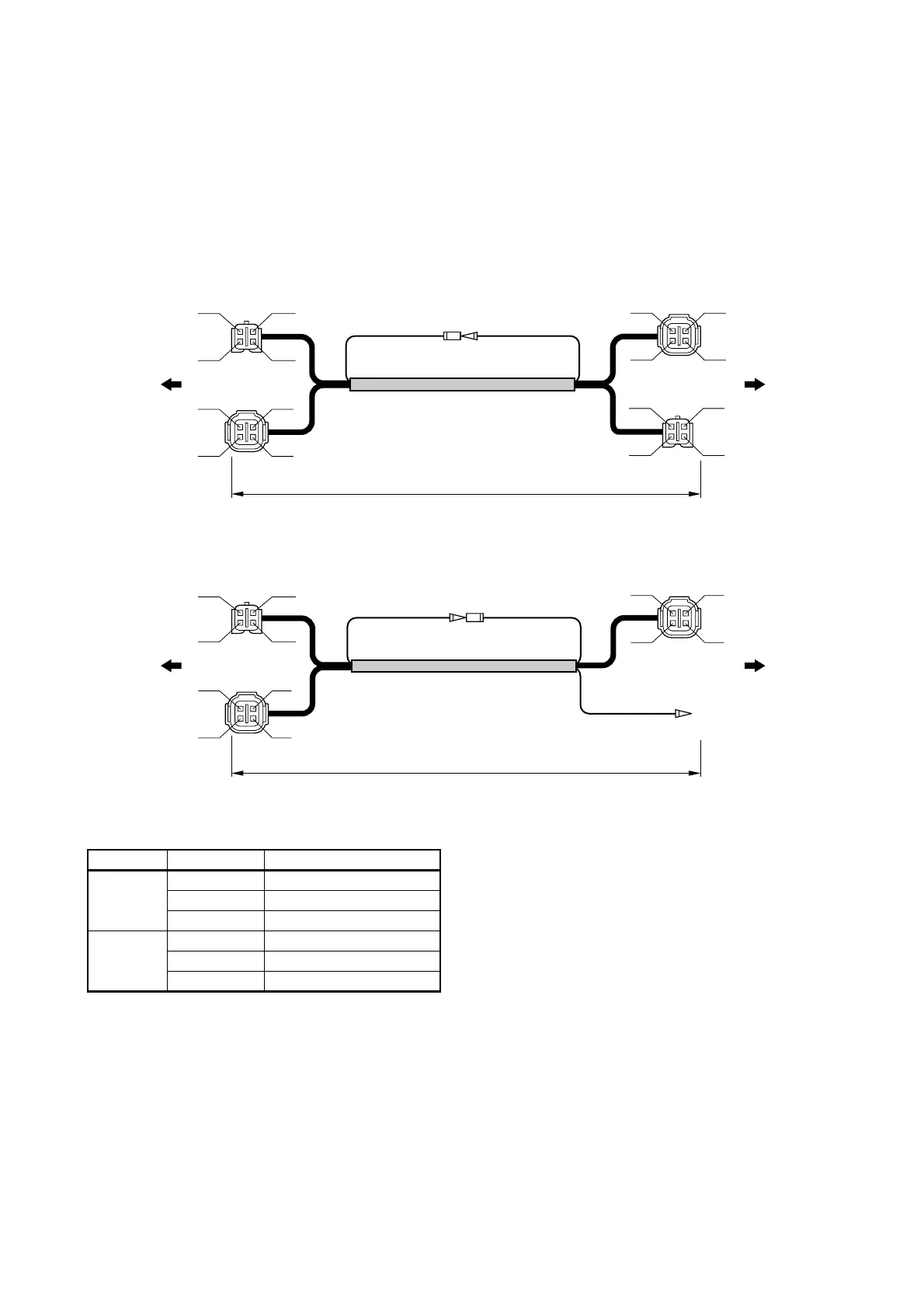

Wire-harness adapter 1
P/N: 6Y5-85335-00
Wire-harness adapter 2
P/N: 6Y5-85335-10
For US and Canada,
The interchangeability between engine and gauge for model year is shown in the table below,
Engine Gauge Interchangeability
- 2003
- 2003 OK
2004 - 2006 OK
2007 - Requires 6Y5-85335-10
2004 -
- 2003 Requires 6Y5-85335-00
2004 - 2006 OK
2007 - OK
PP
30 cm (1 ft)
ENGINE GAUGE
B/W
P
O
Gy
X
G/R
X
G/W
Gy
G/W
P
G/R
O
Gy
B/W
P
GyGy
B
30 cm (1 ft)
ENGINE GAUGE
B
P
X
Gy
P
G/R
Gy
G/W
X
G/W
X
G/R
