1-11
MOUNTING THE REMOTE OIL
TANK

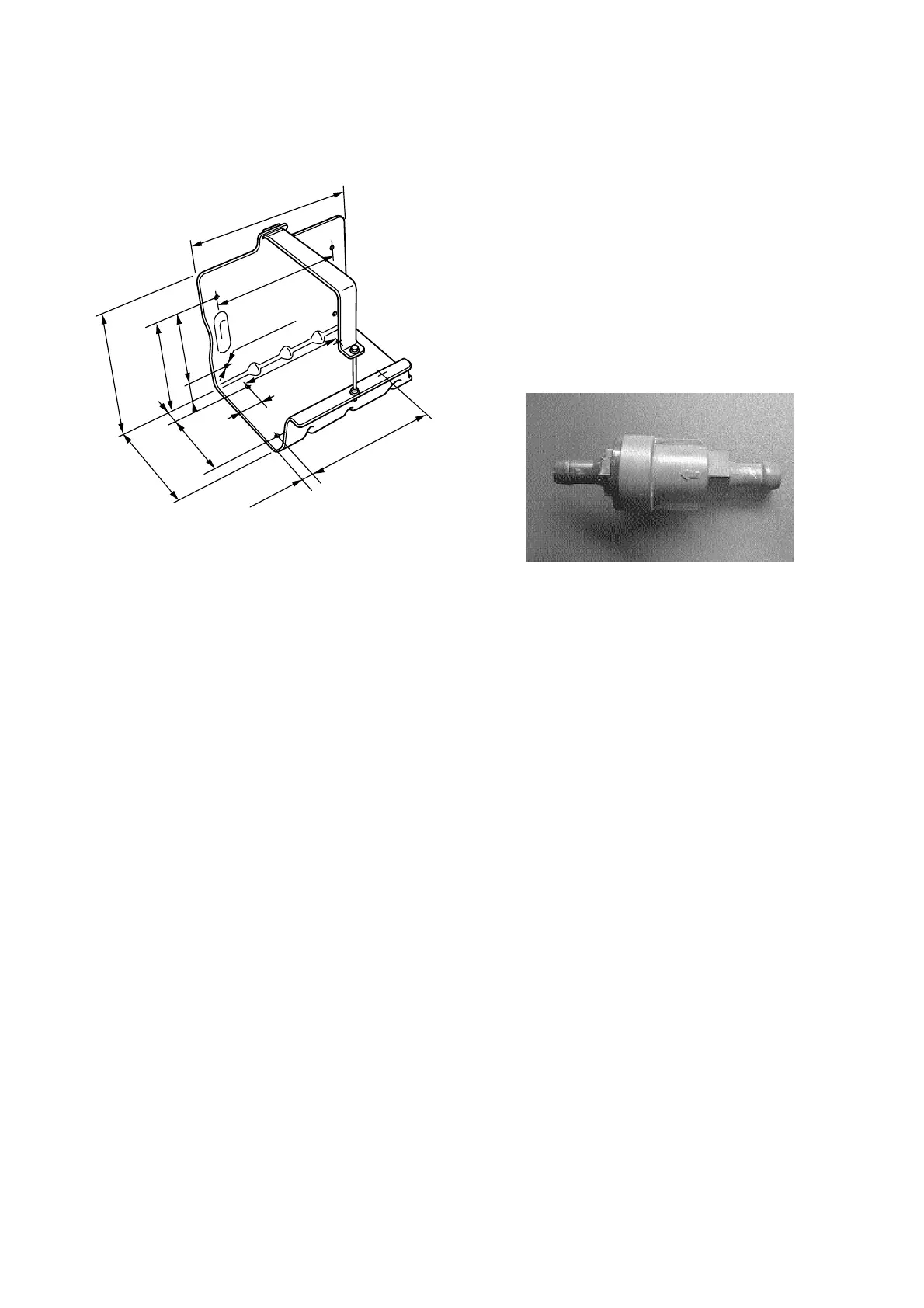

Oil tank holder
NOTICE FOR MOUNTING THE REMOTE
OIL TANK
Follow the notifications below, for the remote
oil tank installation.
• Mount the oil tank in as dry as possible loca-
tion to avoid water entering into the oil tank.
• Mount in a location that will allow service to
the filter located on the remote oil tank.
• Mount the remote oil tank lower than the
engine oil tank.
If the remote oil tank is mounted higher than
the top of the engine because of a boat type,
an optional check valve (P/N: 6R5-24408-
00) shown below is required.
Install it on the oil hose between the engine
and remote oil tank to prevent siphoning of
oil to the engine and spillage.
• Route the oil hose between the engine and
the remote oil tank without pinching and
kinking.
250 (9.8)
200 (7.9)
170 (6.7)
6.5 (0.26)
40 (1.6)
200 (7.9)
25 (1.0)
112
(4.4)
30
(1.2)
173
(6.8)
210 (8.3)
160 (6.3)
130 (5.1)
30
(1.2)
mm (in.)
