DIGITAL TACHOMETER
A tachometer is essential for suitable outboard performance.
The engine speed can be monitored for most efficient operation.
In dual-engine applications, the tachometers can be used to set the throttle of each engine accu-
rately.
The digital tachometer includes the elapsed hour meter, the trim meter and the oil warning indicator.
Also, this meter can be used for both 2 and 4 stroke models by the switch settings.
DIGITAL TACHOMETER APPLICATIONS
* If the current tachometer does not fit the older engine, use the wire-harness adapter which is shown in page
5-43.

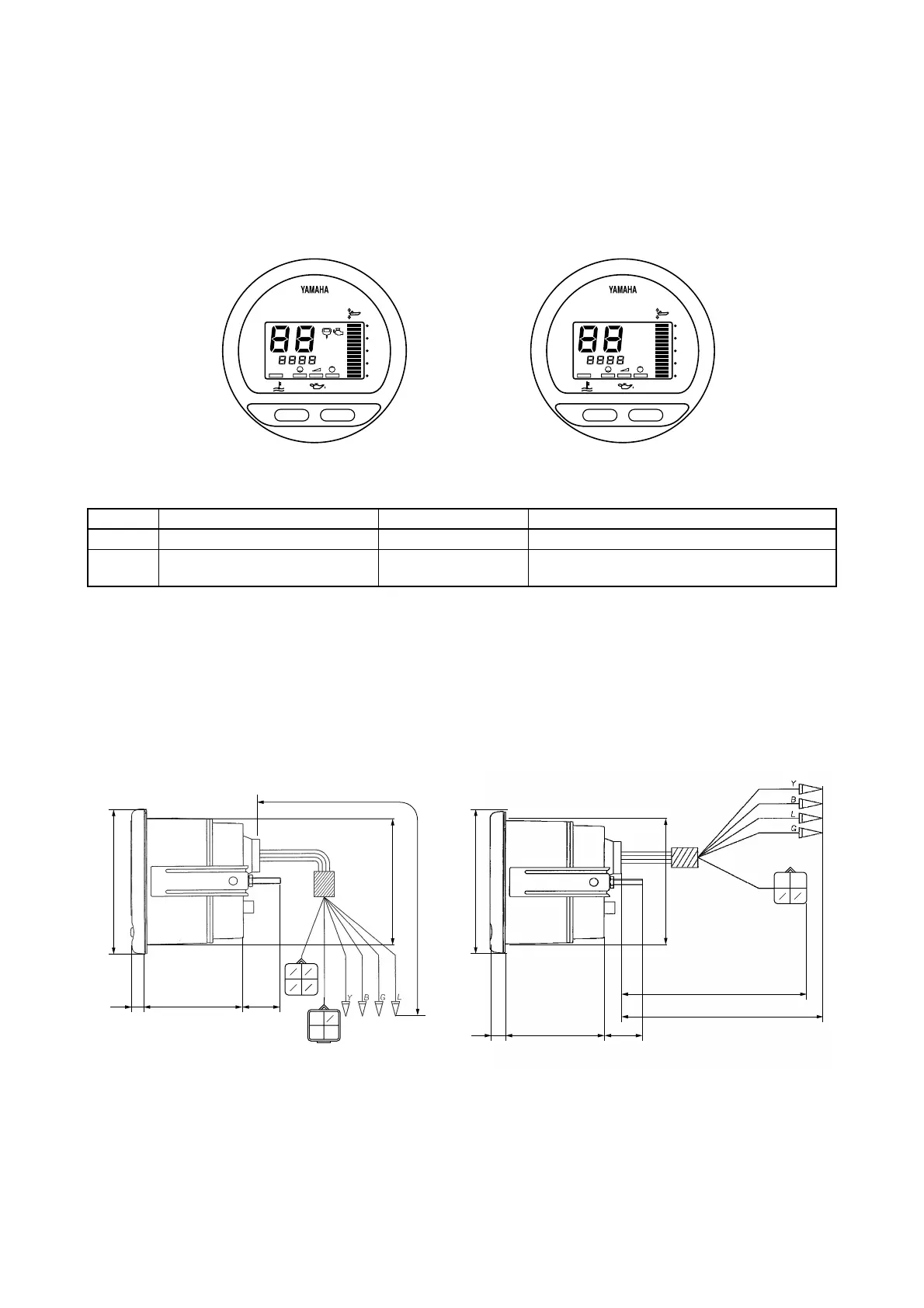

DIGITAL TACHOMETER DIMENSIONS
Ref. No. Description Part No. Applicable model
1 Multifunction 6Y5-8350T-03 250G,L250G
2
Multifunction w/o “Check engine”
and “Water in fuel” indicators
6Y5-8350T-90
40 (3-cyl)-300 w/ oil injection, PTT (except
250G/L250G), F30-F250 [6P2] w/ PTT
12
1
2
3
4
5
TACH
x100
r/min
set mode
h
1
2
3
4
5
TACH
x100
r/min
set mode
h
97 (3.82)
8.5 (0.33) 25 (0.98)
65.5 (2.58)
210 (8.27)
190 (7.48)
84.5 (3.33)
97 (3.82)
8.5 (0.33) 25 (0.98)
65.5 (2.58)
84.5 (3.33)
210 (8.27)
W
R
G
R
L
W
G
W
B
W
Or
Gy P
G
R
G
W
GyP
mm (in.)mm (in.)
1. With twin 4-pin couplers 2. With single 4-pin coupler
