3-2
REMOTE CONTROL APPLICATIONS
A Yamaha outboard motor has one of two throttle control systems, either “Push To Open” or “Pull
To Open”.
For example, “Push To Open” means the throttle valve opens when the remote control inner cable is
extended and then the throttle arm is pushed.
Most models have “Push To Open” system.
However, some following models have “Pull To Open” system.
The 10-pin connector is usually used for PTT and/or PT (Power Tilt) models.
The 7-pin connector is for manual tilt models. But, F9.9F (F9.9[F]), FT9.9G (T9.9[G]), F15C (F15[C])
and F20B (F20) have the 10-pin connector.
Install the remote control box so that there is sufficient clearance between steering wheel and
remote control lever operation area.

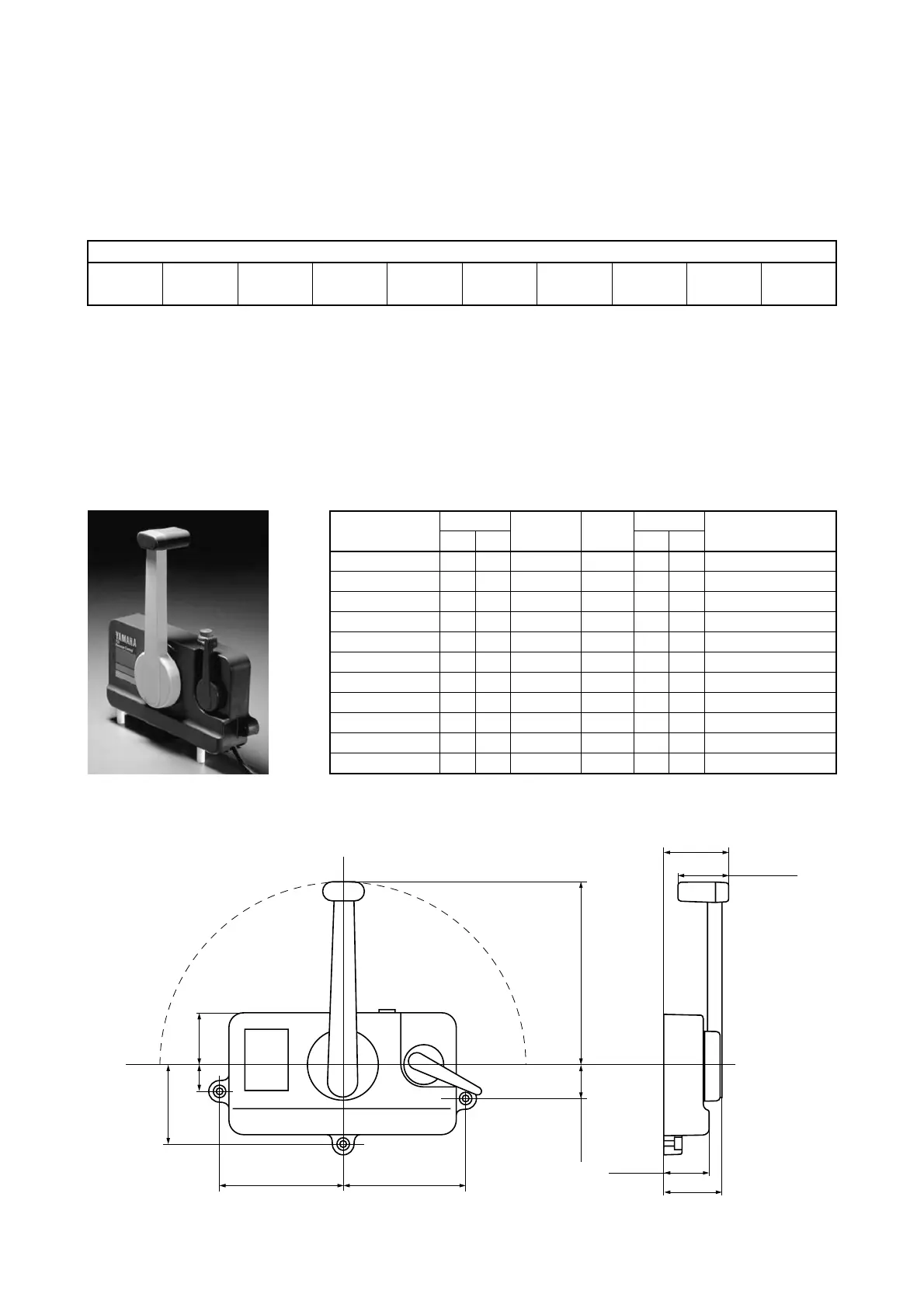

701 REMOTE CONTROL
Designed for especially for smaller models.
The attachment kit may be required to setup the remote control.
701 REMOTE CONTROL DIMENSIONS
“Pull to Open” models
20D
(20)
25B
E25B
25N
(25)
30D 30H
E30H
40J
E40J EK40J E40G 55B E60H
Part No.
Throttle
Lanyard
stop S/W
Neutral
lock
Mount
Remarks
Push
Pull R L
701-48101-23 1 1 1
701-48101-51 1 1
701-48101-E2 1 1 1 1
701-48101-G1 1 1 1
701-48102-23 1 1 1
701-48102-51 1 1
701-48102-E2 1 1 1 1
701-48102-G1 1 1 1
701-48130-23 1 1 1
701-48130-E0 1 1 1 1
701-48140-E0 1 1 1 1
63 (2.48)32 (1.26)
41.1 (1.62) 222.5 (8.76)
94.5 (3.72)
144 (5.67) 146 (5.75)
76.6 (3.02)
62.5 (2.46)
52 (2.05)
67.5 (2.66)
mm (in.)
