COOLANT TEMP. METER
SENDER INSTALLATION
F150
F200, F225
NOTICE
Install the coolant pressure sender on the
port side cylinder. If it is installed on the
top of the starboard side cylinder, the
sender tube could cause a damage by hard
bending.

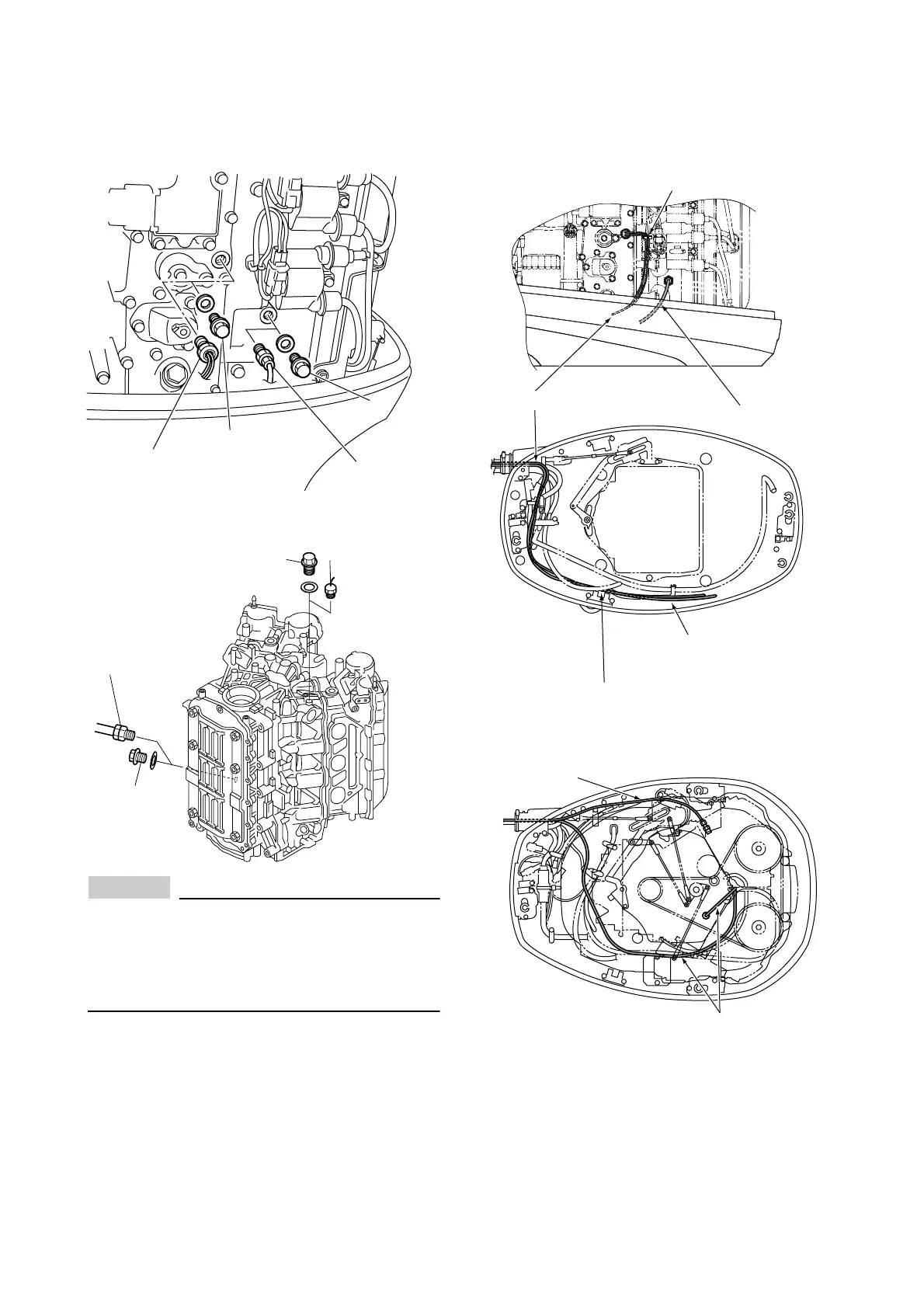

ROUTING THE COOLANT TEMP. LEAD
& COOLANT PRESS. TUBE
F150
F200, F225
(1)
(2)
(1)
(2)
Coolant temp.
sender
Coolant press.
sender
(1)
(1)
(2)
Coolant press.
sender
(2)
Coolant press.
sender
Coolant temp. lead
Coolant press. tube
Water press. tube
Secure with clamp coolant temp. lead first
Secure with clamp
Coolant press. tube
Coolant temp. lead
To Next Page
