Components
EMU2579T

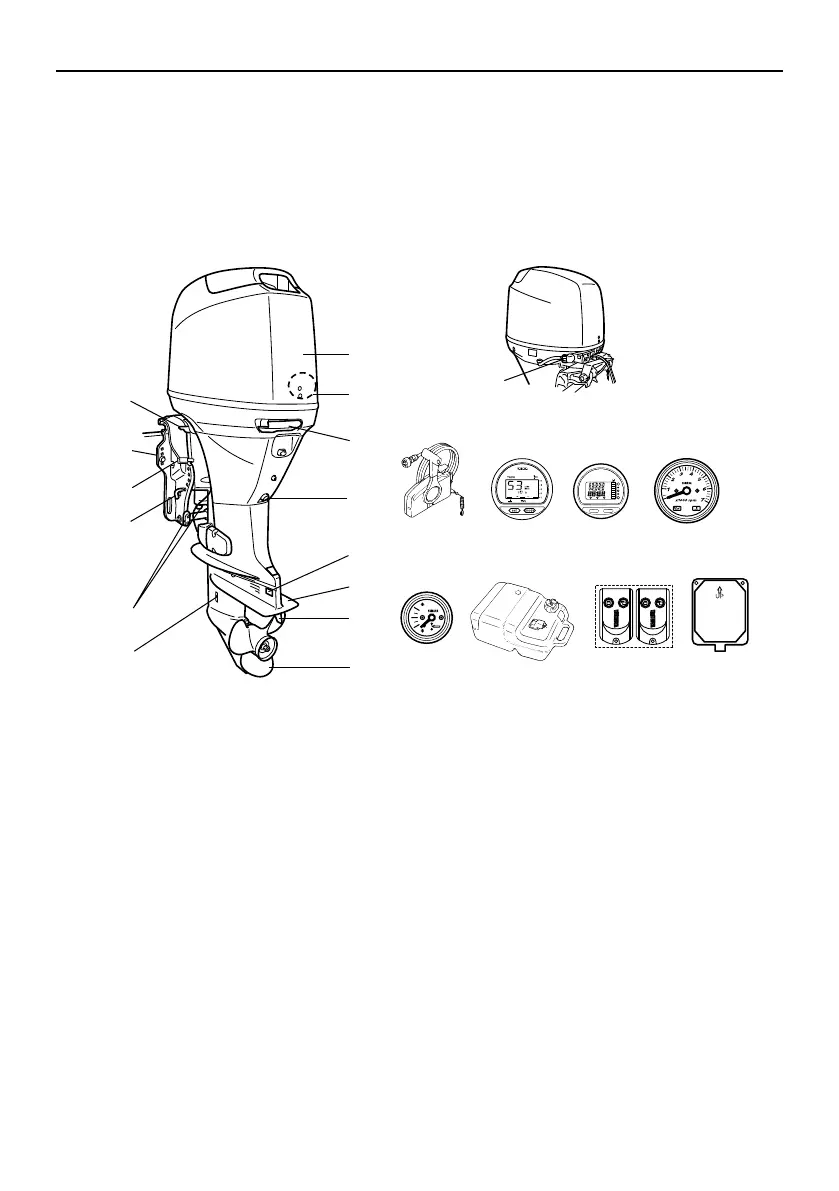

Components diagram
TIP:
* May not be exactly as shown; also may not be included as standard equipment on all mod-
els (order from dealer).
F50F, F60C, FT60D
2
3
4
TRIP TIME BATT
Km/h
knot
mph
km
mile
SPEED
YAMAHA
set
mode
13
14
1
9
11
6
7
5
10
8
12
15
18
16 17
19 20
21
22
ZMU05107
1. Top cowling
2. Water separator
3. Cowling lock lever
4. Drain screw
5. Anode*
6. Anti-cavitation plate
7. Trim tab (anode)
8. Propeller
9. Cooling water inlet
10. Anode(s)
11. Clamp bracket
12. Tilt support lever
13. Flushing device
14. Tiller handle*
15. Remote control box (side mount type)*
16. Remote control box (binnacle mount type)*
17. Switch panel (for use with binnacle type)*
18. Digital tachometer*
19. Digital speedometer*
20. Tachometer*
21. Trim meter*
22. Fuel tank
