Instruments and indicators
EMU36014
Indicators
EMU36024
Low oil pressure-alert indicator
If oil pressure drops too low, this indicator will
light up. For further information, see page 43.
NOTICE
ECM00022
● Do not continue to run the engine if the
low oil pressure-alert indicator is on
and the engine oil level is lower. Seri-
ous engine damage will occur.
● The low oil pressure-alert indicator
does not indicate the engine oil level.
Use the oil dipstick to check the re-
maining oil quantity. For further infor-
mation, see page 51.
EMU36033
Overheat-alert indicator
If the engine temperature rises too high, this
indicator will light up. For further information
on reading the indicator, see page 43.
NOTICE
ECM00052
Do not continue to run the engine if the
overheat-alert indicator is on. Serious en-
gine damage will occur.
EMU26493
Digital tachometer
The tachometer shows the engine speed
and has the following functions.

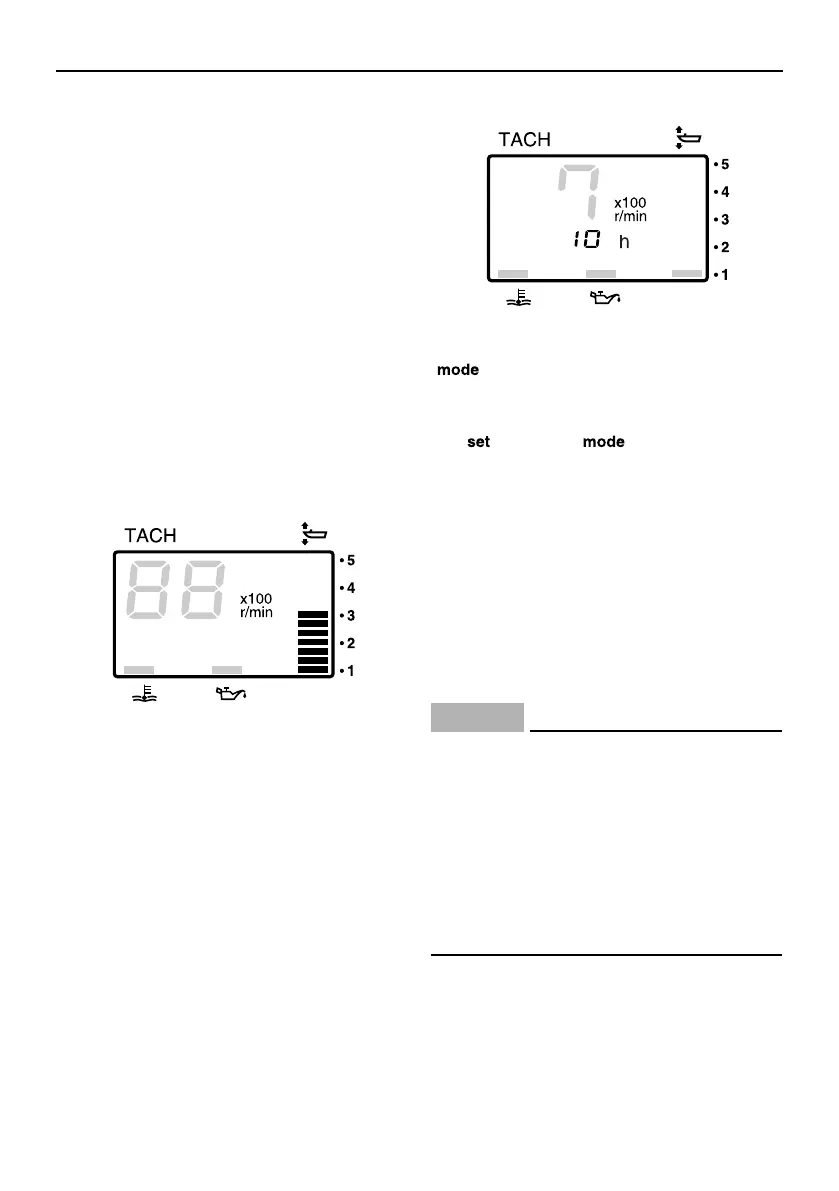

All segments of the display will light momen-
tarily after the main switch is turned on and
will return to normal thereafter.
TIP:
The water separator and engine trouble-alert
indicators only operate when the engine is
equipped with the appropriate functions.

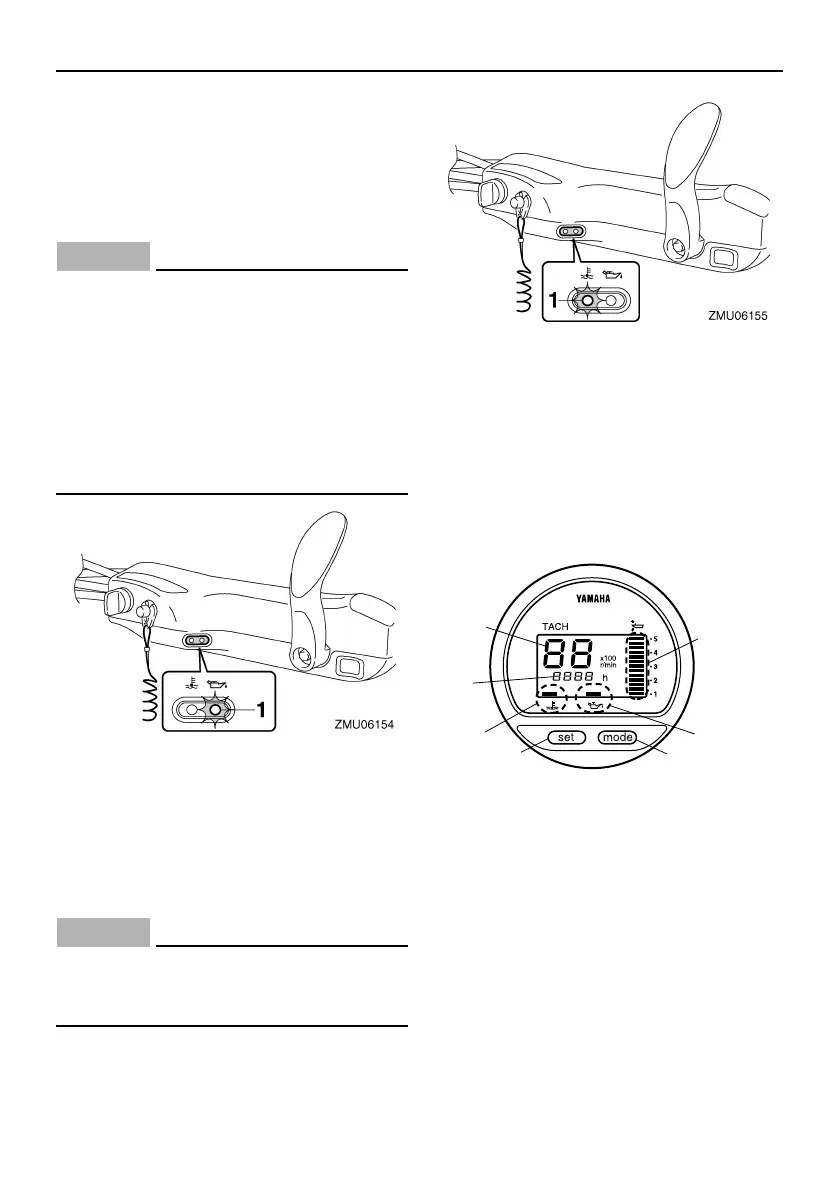

1. Low oil pressure-alert indicator
1. Overheat-alert indicator
1. Tachometer
2. Trim meter
3. Hour meter
4. Low oil pressure-alert indicator
5. Overheat-alert indicator
6. Set button
7. Mode button
1
5
2
4
3
6
7
ZMU03601
