Operation
52
EMU36954

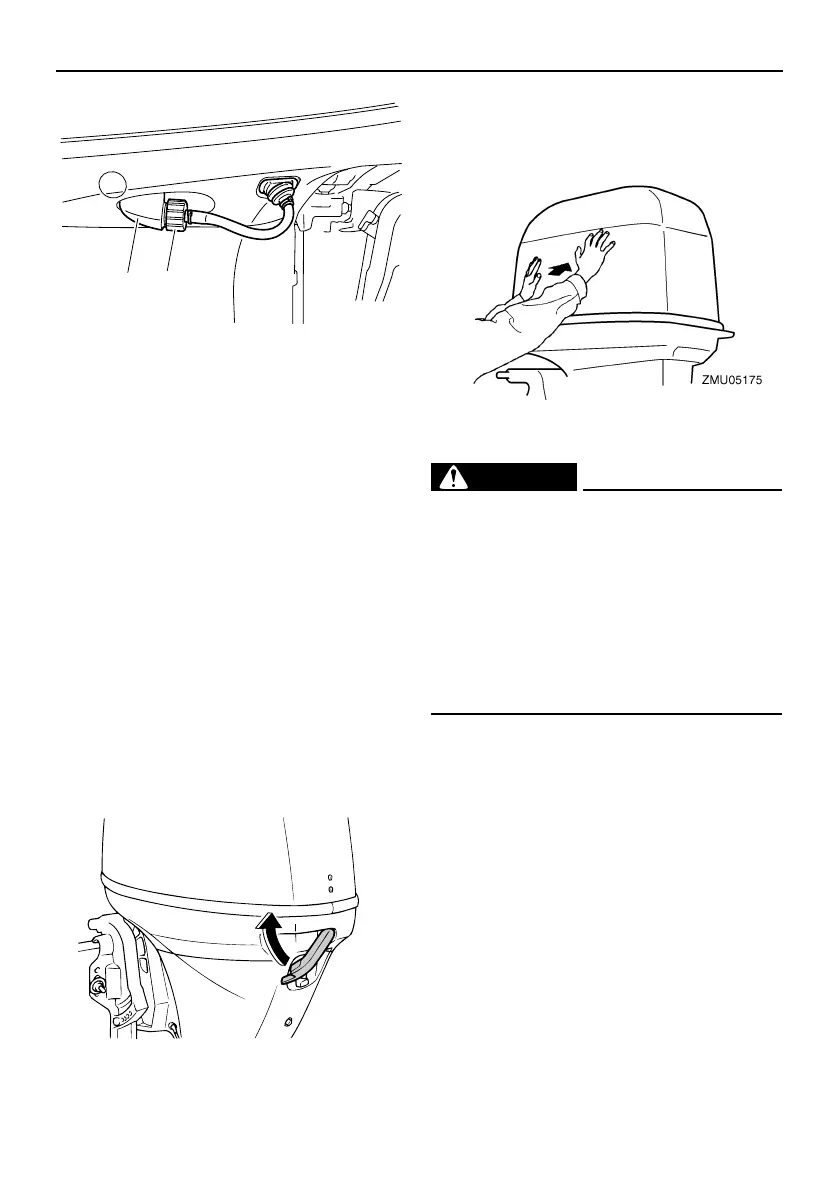

Install top cowling
1. Be sure that the cowling lock lever is re-
leased.
2. Be sure that the rubber seal is seated all
the way around the top cowling.
3. Place the top cowling on the bottom
cowling.
4. Check to be sure the rubber seal is seat-
ed correctly between the top cowling
and the bottom cowling.
5. Move the lever to lock the cowling as
shown. NOTICE: If the top cowling is
not installed correctly, water spray
under the top cowling can damage
the engine, or the top cowling can
blow off at high speeds.
[ECM01991]
After installing, check the fitting of the top
cowling by pushing it with both hands. If the
top cowling is loose, have it repaired by your
Yamaha dealer.
EMU34581

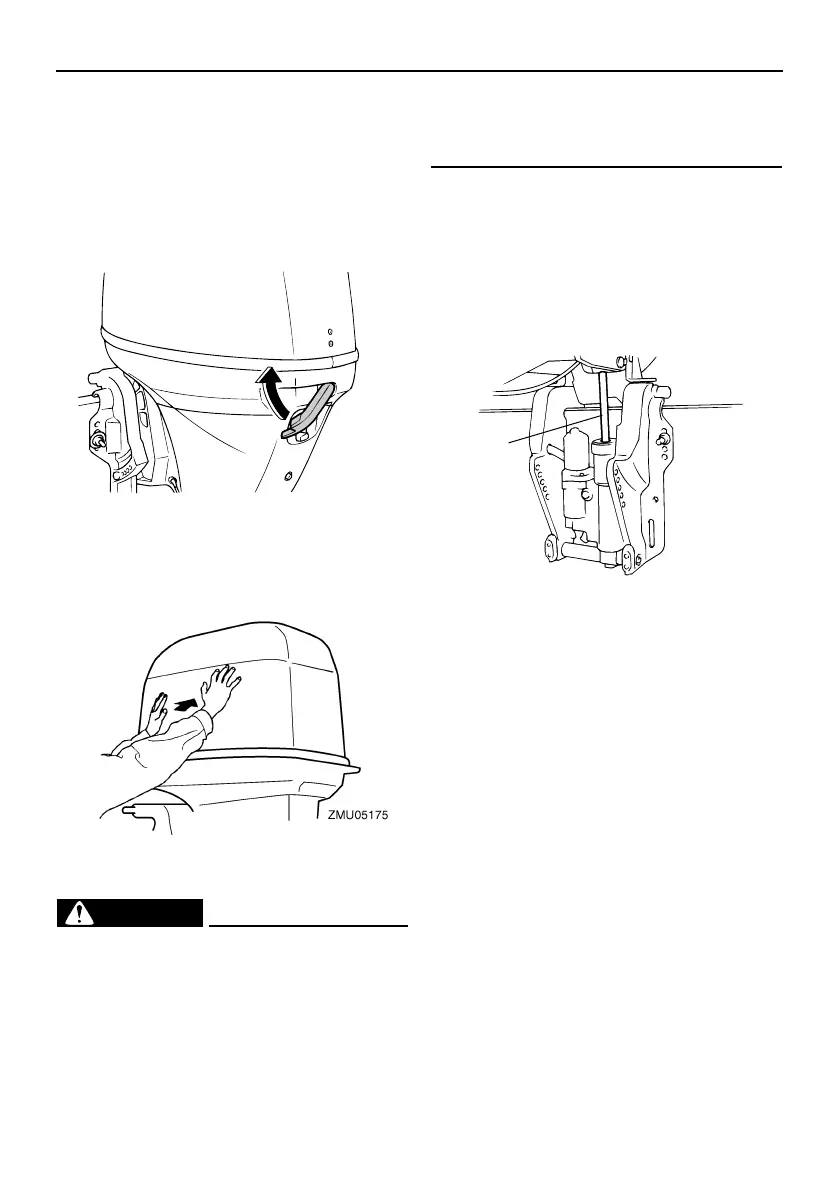

Power trim and tilt system
EWM01930
● Never get under the lower unit while it
is tilted, even when the tilt support lever
is locked. Severe injury could occur if
the outboard motor accidentally falls.
● Body parts can be crushed between the
motor and the clamp bracket when the
motor is trimmed or tilted.
● Be sure no one is near the outboard
motor before performing this check.
1. Check the power trim and tilt unit for any
sign of oil leaks.
2. Operate each of the power trim and tilt
switches to check that all switches work.
3. Tilt the outboard motor up and check
that the trim and tilt rod is pushed out
completely.
1. Fitting
2. Flushing device
