Instruments and indicators
36
EMU36080
Voltmeter
The voltmeter displays the charge of the bat-
tery in volts(V).
EMU26721
Fuel level-alert indicator
If the fuel level decreases to one segment,
the fuel level alert segment will blink.
Do not continue to operate the engine with
full throttle if an alert device has activated.
Get back to the port within trolling engine
speed. NOTICE: Running out of fuel can
damage the engine.
[ECM01770]
EMU26732
Low battery voltage-alert indicator
If battery voltage drops, the display will auto-
matically turn on and blink.
Get back to the port soon if an alert device
has activated. For charging the battery, con-
sult your Yamaha dealer.
EMU26471
Analog tachometer
This gauge shows the engine speed and has
the following functions.
EMU26506

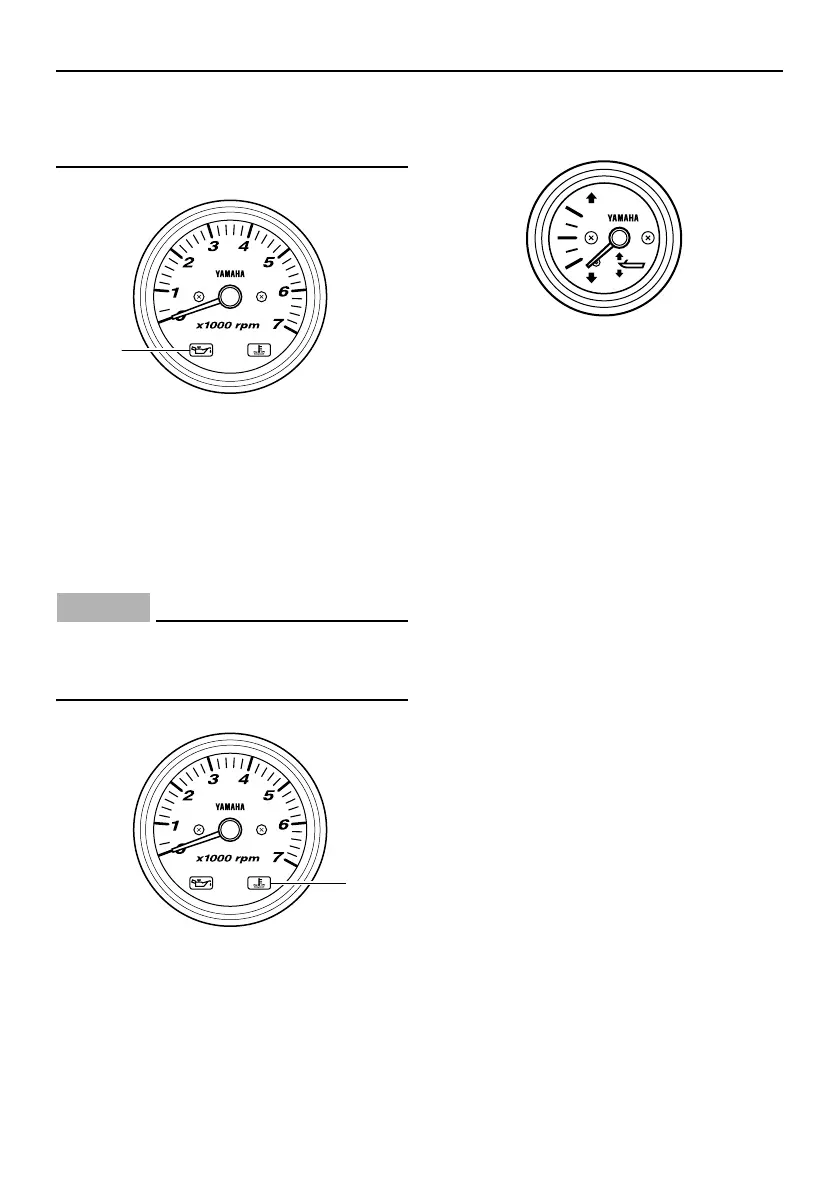

Low oil pressure-alert indicator
If oil pressure drops too low, this indicator will
flash. For further information, see page 43.
ECM00022
● Do not continue to run the engine if the
low oil pressure-alert indicator is on
and the engine oil level is lower. Seri-
ous engine damage will occur.
● The low oil pressure-alert indicator
does not indicate the engine oil level.

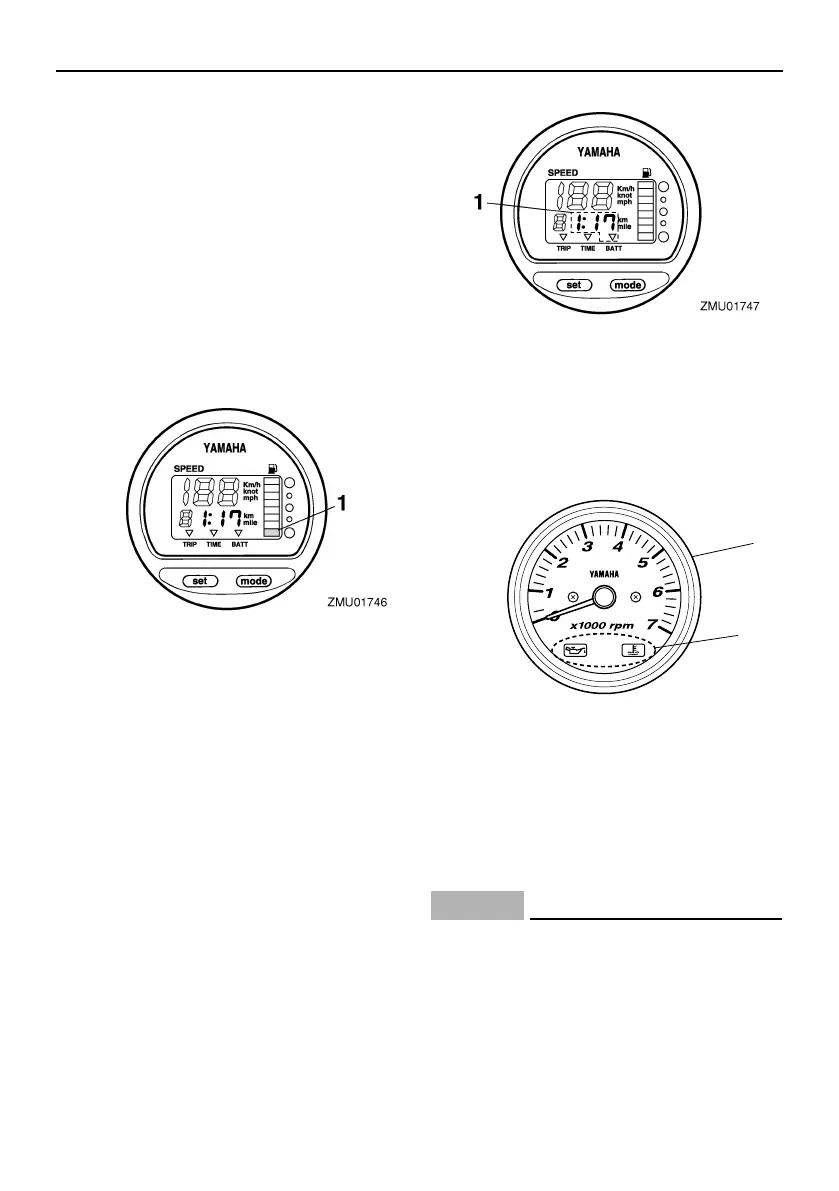

1. Fuel level-alert segment
1. Low battery indicator
1. Tachometer
2. Alert indicator(s)
