Instruments and indicators
40
ECM00910
Gasoline mixed with water could cause
damage to the engine.
EMU36160

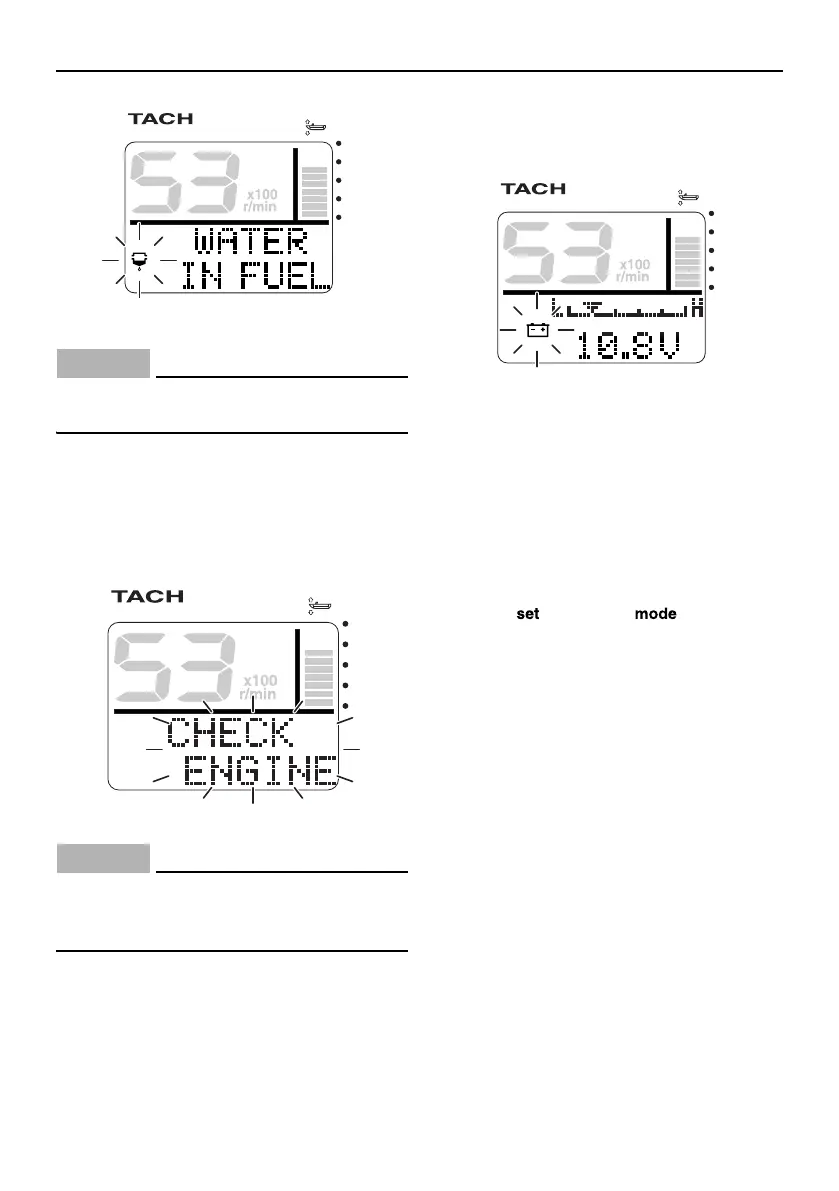

Engine trouble alert
This indicator will blink if the engine malfunc-
tions while cruising. Get back to the port
soon and consult a Yamaha dealer immedi-
ately.
ECM00920
In such an event, the engine will not oper-
ate properly. Consult a Yamaha dealer im-
mediately.
EMU36170
Low battery voltage-alert
If the battery voltage drops, the low battery
voltage-alert indicator and the battery volt-
age value will start to blink. Get back to the
port soon if the low battery voltage-alert de-
vice has activated. For charging the battery,
consult your Yamaha dealer.
EMU36232
6Y8 Multifunction speed & fuel
meters
The speed & fuel meter unit shows the boat
speed and has the functions of fuel meter, to-
tal fuel consumption display, fuel economy
display, fuel flow display, and system voltage
display. The chosen display is selected by
using the “ ” (set) and “ ” (mode) but-
tons as described in this section. If the speed
sensor is installed, the unit can also show the
trip display. However, even if the speed sen-
sor is not installed, the trip display can be
shown by connecting an optional sensor to
the unit. In addition, if optional sensors are
connected to the unit, water surface temper-
ature display, depth display, and clock will
also be available. For the optional sensors,
consult your Yamaha dealer.
The speed & fuel meter unit is available in
round or square types. Check your speed &
fuel meter unit type for operation information.
After the main switch is first turned on, all the
displays come on as a test. After a few sec-
onds, the gauge will change to normal oper-
ation.
For more information, see the operation
manual originally supplied with the meter.
