Instruments and indicators
37
Use the oil dipstick to check the re-
maining oil quantity. For further infor-
mation, see page 51.
EMU26574

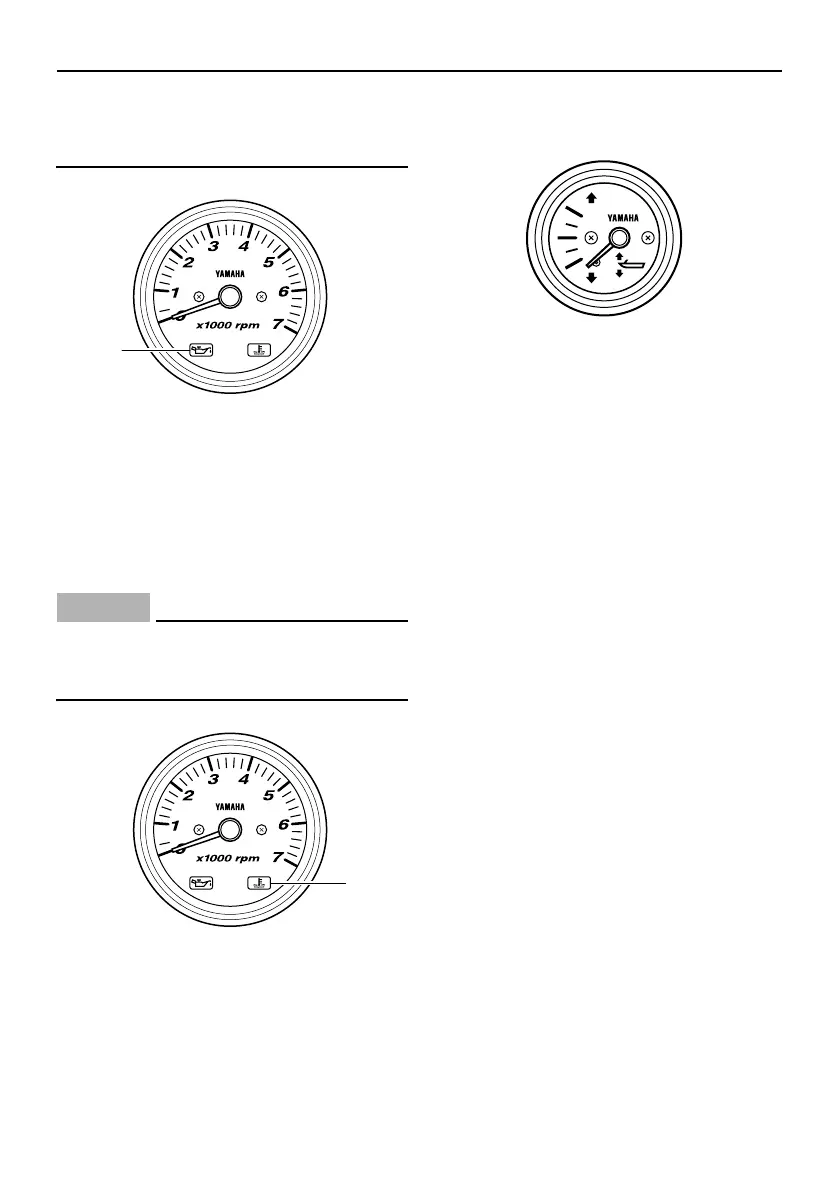

Overheat-alert indicator
If the engine temperature rises too high, this
indicator will flash. For further information on
reading the indicator, see page 43.
ECM00052
Do not continue to run the engine if the
overheat-alert indicator is on. Serious en-
gine damage will occur.
EMU26611
Analog trim meter
This gauge shows the trim angle of your out-
board motor.
Memorize the trim angles that work best for
your boat under different conditions. Adjust
the trim angle to the desired setting with the
power trim and tilt switch.
EMU31653
6Y8 Multifunction meters
Multifunction meters have 6 kinds of meter
units; tachometer unit (square or round
types), speedometer unit (square type),
speed & fuel meter unit (square or round
types), and fuel management meter (square
type). The indicator system is slightly differ-
ent between the round and square types.
Check the model and type of your unit care-
fully. This manual describes mainly the alert
indicators. For more details on setting
meters or changing indicator systems, see
the attached operation manual.
EMU36184

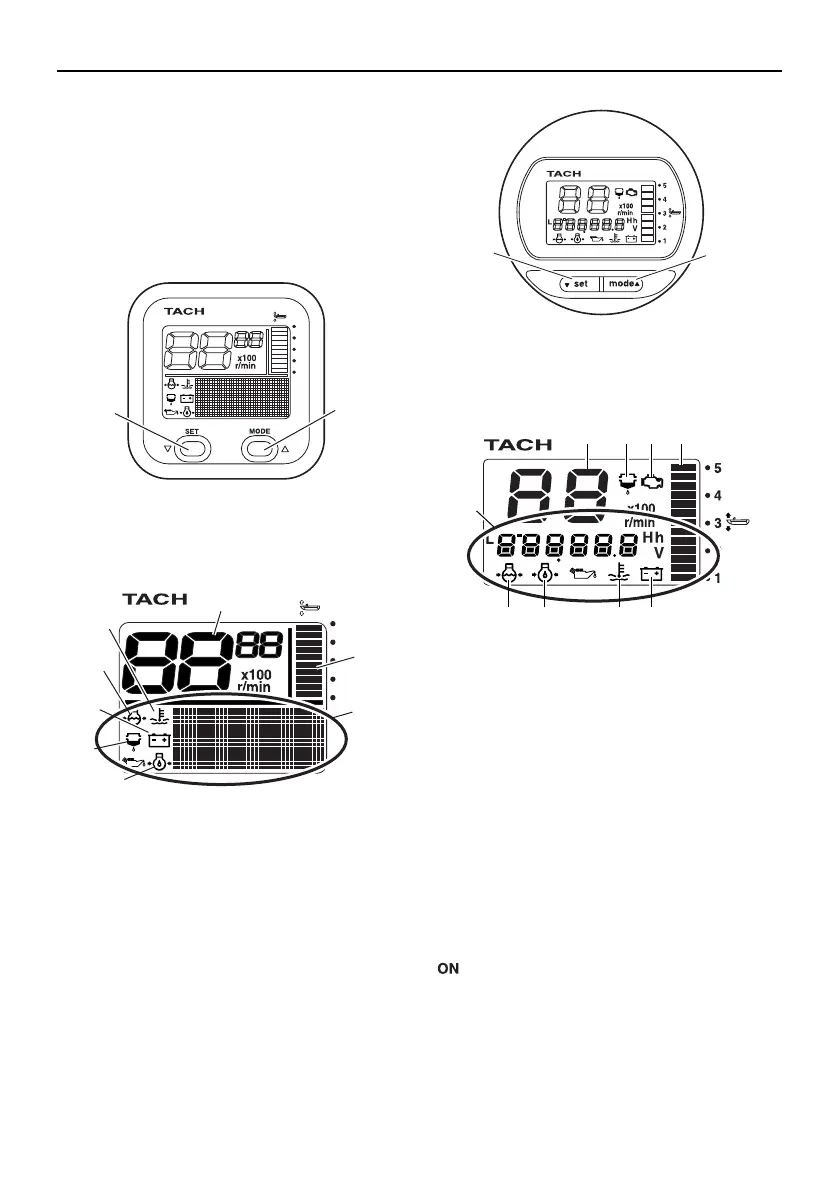

6Y8 Multifunction tachometers
The tachometer shows the engine revolu-
tions per minute. It has functions of trim
meter, adjusting trolling speed, cooling wa-
ter/engine temperature display, battery volt-
age display, total hour/trip hour display, oil
pressure display, water detection alert, en-
gine trouble alert, and periodic maintenance
notification. If the cooling water pressure
sensor is installed, the unit can also show the
cooling water pressure display. However,
1. Low oil pressure-alert indicator
1. Overheat-alert indicator
