Components
28
For instructions on using the power trim and
tilt switch, see page 65.
EWM01031
Use the power trim and tilt switch located
on the bottom cowling only when the boat
is at a complete stop with the engine off.
Attempting to use this switch while the
boat is moving could increase the risk of
falling overboard and could distract the
operator, increasing the risk of collision
with another boat or an obstacle.
EMU30901
Variable trolling RPM switches
The trolling speed can be adjusted when the
outboard motor is trolling. Press the “ ”
switch to increase the trolling speed and
press the “ ” switch to decrease the trolling
speed.
● The trolling speed changes approximately
50 r/min each time a switch is pressed.
● If the trolling speed has been adjusted, the
engine returns to the normal trolling speed
when the engine is stopped and restarted
or when the engine speed exceeds ap-
proximately 3000 r/min.
● For instructions on using the variable troll-
ing RPM switches, see page 61.
EMU26244

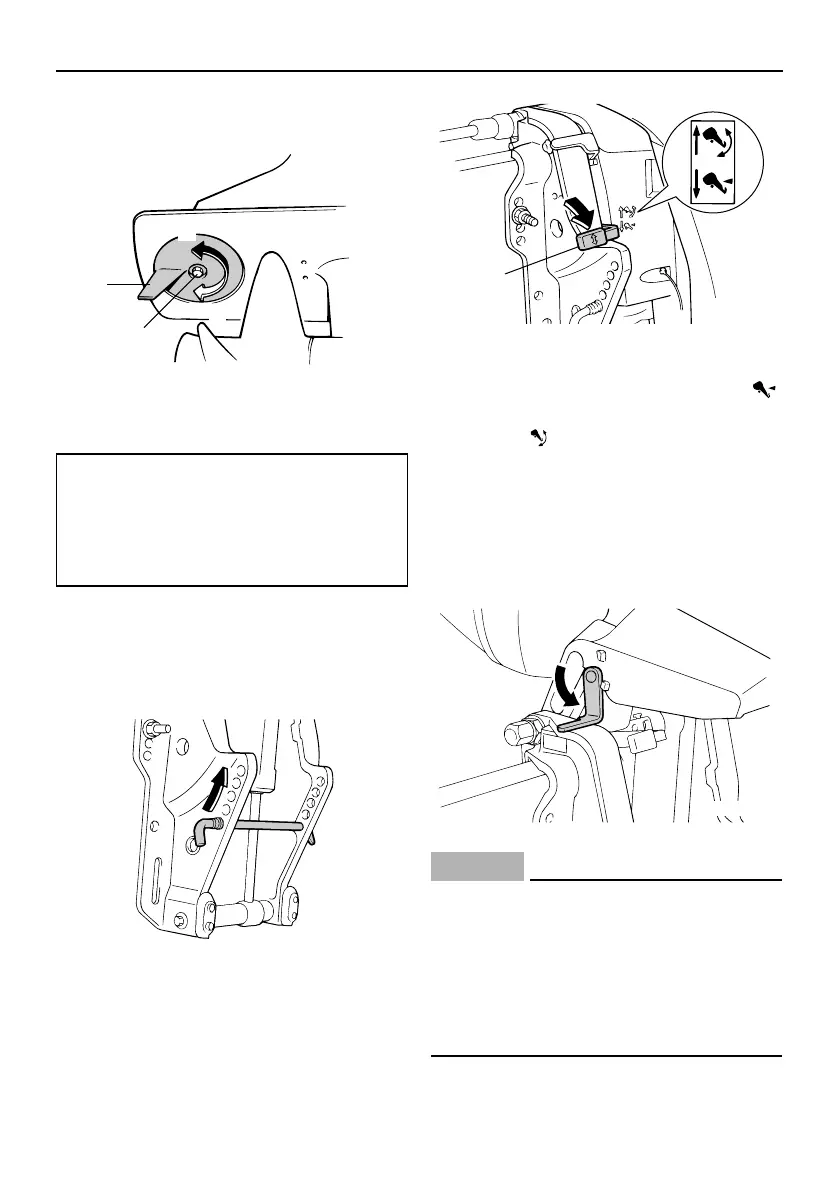

Trim tab with anode
EWM00840
An improperly adjusted trim tab could
cause difficult steering. Always test run
after the trim tab has been installed or re-
placed to be sure steering is correct. Be
sure you have tightened the bolt after ad-
justing the trim tab.
The trim tab should be adjusted so that the
steering control can be turned to either the
right or left by applying the same amount of
force.
If the boat tends to veer to the left (port side),
turn the trim tab rear end to the port side “A”
in the figure. If the boat tends to veer to the
right (starboard side), turn the trim tab end to
the starboard side “B” in the figure.

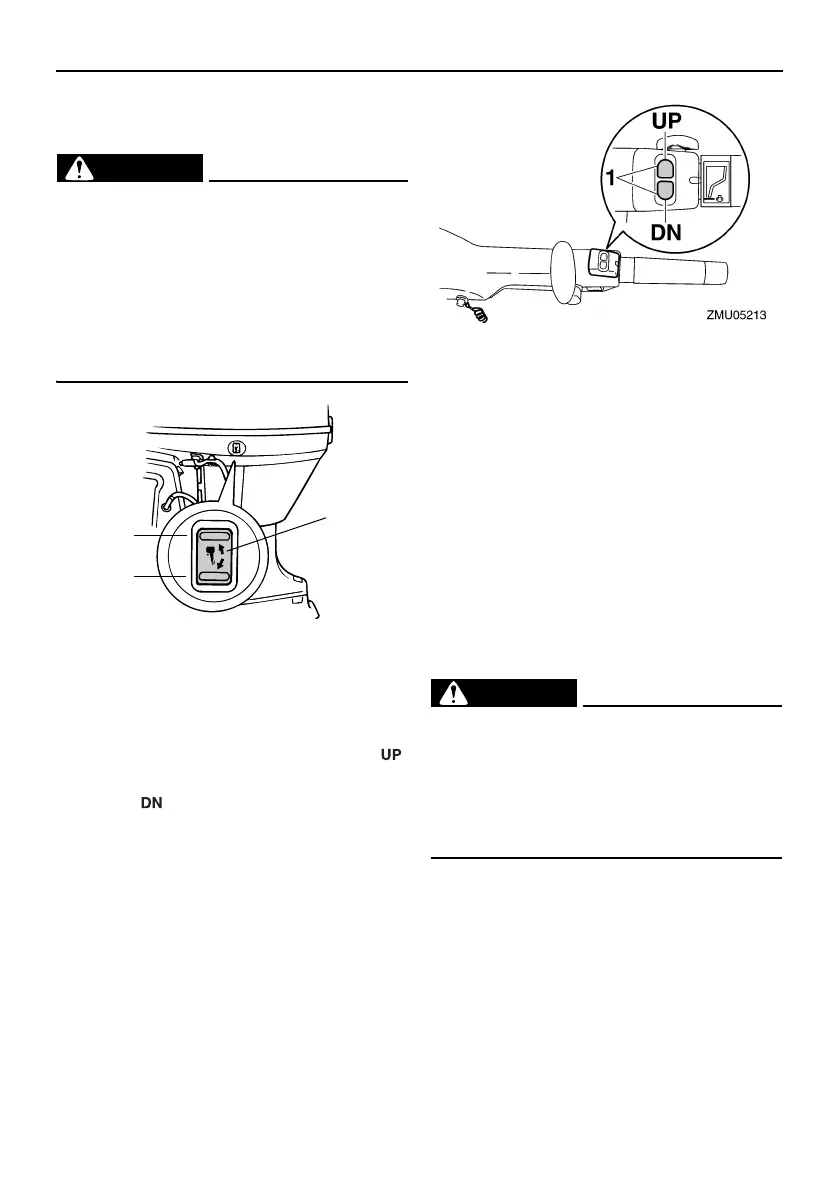

1. Power trim and tilt switch
1. Variable trolling RPM switch
