Instruments and indicators
EMU36016
Indicators
EMU36025
Low oil pressure-alert indicator
If oil pressure drops too low, this indicator will
light up. For further information, see page 39.
NOTICE
ECM00023
 Do not continue to run the engine if the
low oil pressure-alert indicator is on
and the engine oil level is lower. Seri-
ous engine damage will occur.
 The low oil pressure-alert indicator
does not indicate the engine oil level.
Use the oil dipstick to check the re-
maining oil quantity. For further infor-
mation, see page 45.
EMU36034
Overheat-alert indicator
If the engine temperature rises too high, this
indicator will light up. For further information
on reading the indicator, see page 39.
NOTICE
ECM00053
Do not continue to run the engine if the
overheat-alert indicator is on. Serious en-
gine damage will occur.
EMU26494
Digital tachometer
The tachometer shows the engine speed
and has the following functions.
All segments of the display will light momen-
tarily after the main switch is turned on and
will return to normal thereafter.
TIP:
The water separator and engine trouble-alert
indicators only operate when the engine is
equipped with the appropriate functions.

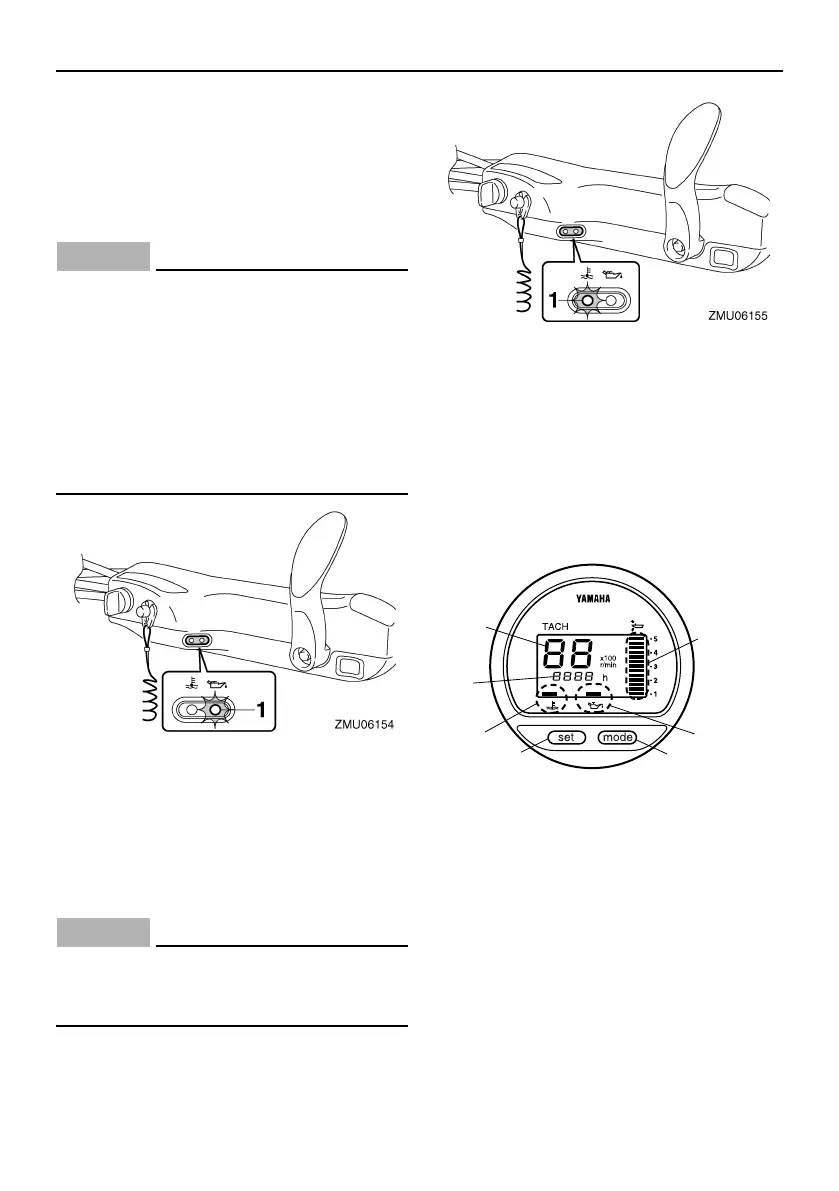

1. Low oil pressure-alert indicator
1. Overheat-alert indicator
1. Tachometer
2. Trim meter
3. Hour meter
4. Low oil pressure-alert indicator
5. Overheat-alert indicator
6. Set button
7. Mode button
1
5
2
4
3
6
7
ZMU03601
