Instruments and indicators
31
EMU36081
Voltmeter
The voltmeter displays the charge of the bat-
tery in volts(V).
EMU26723
Fuel level-alert indicator
If the fuel level decreases to one segment,
the fuel level alert segment will blink.
Do not continue to operate the engine at full
throttle if an alert device has activated. Get
back to the port using trolling engine speed.
NOTICE: Running out of fuel can damage
the engine.
[ECM01771]
EMU26733
Low battery voltage-alert indicator
If battery voltage drops, the display will auto-
matically turn on and blink.
Get back to the port soon if an alert device
has activated. For charging the battery, con-
sult your Yamaha dealer.
EMU31654
6Y8 Multifunction meters
Multifunction meters have 6 kinds of meter
units; tachometer unit (square or round
types), speedometer unit (square type),
speed & fuel meter unit (square or round
types), and fuel management meter (square
type). The indicator system is slightly differ-
ent between the round and square types.
Check the model and type of your unit care-
fully. This manual describes mainly the alert
indicators. For more details on setting me-
ters or changing indicator systems, see the
attached operation manual.
EMU36185
6Y8 Multifunction tachometers
The tachometer shows the engine revolu-
tions per minute. It has functions of trim me-
ter, adjusting trolling speed, cooling
water/engine temperature display, battery
voltage display, total hour/trip hour display,
oil pressure display, water detection alert,
engine trouble alert, and periodic mainte-
nance notification. If the cooling water pres-
sure sensor is installed, the unit can also
show the cooling water pressure display.
However, even if the cooling water pressure
sensor is not installed, the cooling water
pressure display can be shown by connect-

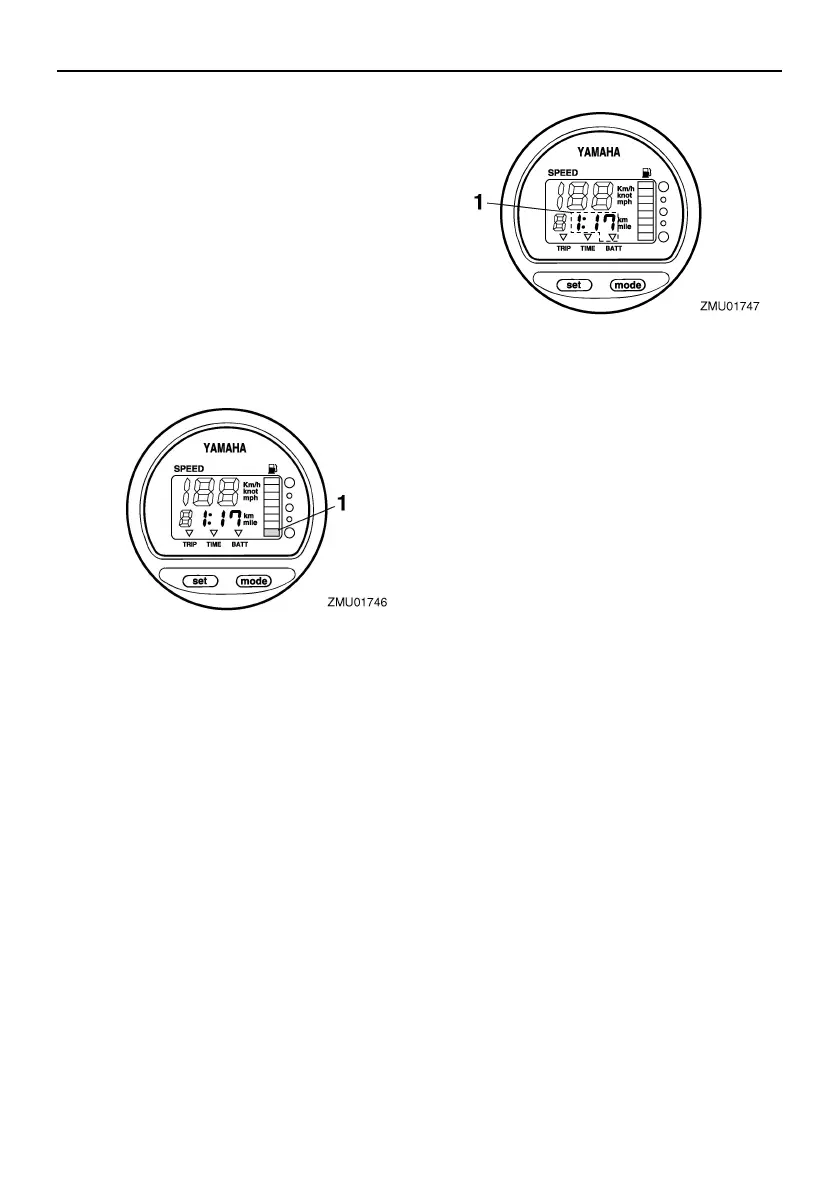

1. Fuel level-alert segment
1. Low battery indicator
