Yamaha F60 User Manual

25
Components
EMU2579Y

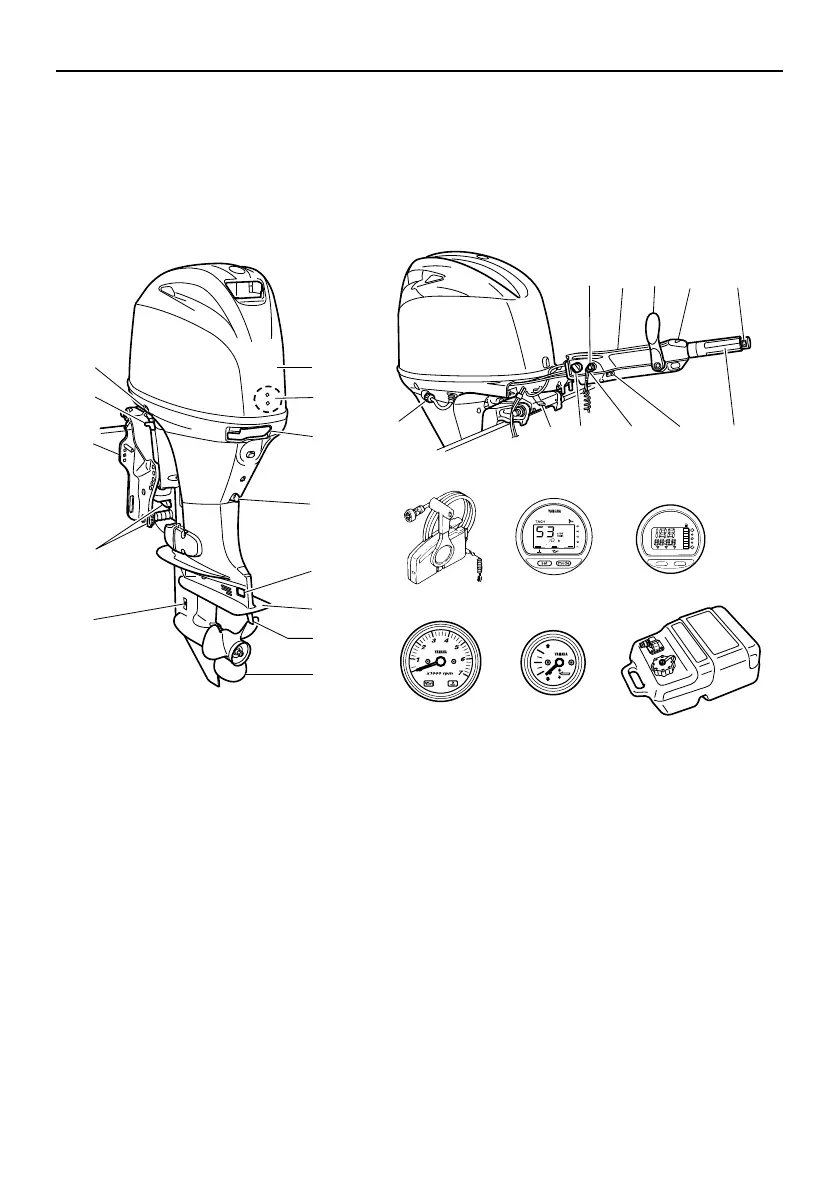

Components diagram
TIP:
* May not be exactly as shown; also may not be included as standard equipment on all mod-
els (order from dealer).
F50B, F50HB, T50B, F60B, F60HB, T60B
TRIP TIME BATT
Km/h
knot
mph
km
mile
SPEED
YAMAHA
set
mode
9
12
11
6
7
5
10
8
13
14 15
1
3
4
2
16 17 18
19202123 22
24
25 26 27
28 29 30
ZMU07948
1. Top cowling
2. Water separator
3. Cowling lock lever
4. Drain screw
5. Anode*
6. Anti-cavitation plate
7. Trim tab (anode)
8. Propeller*
9. Cooling water inlet
10. Anode(s)
11. Clamp bracket
12. Tilt support lever
13. Power trim and tilt switch*
14. Engine stop button/Engine shut-off switch*
15. Tiller handle*
16. Gear shift lever*
17. Variable trolling RPM switch*
18. Power trim and tilt switch*
19. Throttle grip*
20. Alert indicator*
21. Clip*
22. Main switch*
23. Steering friction adjuster*
24. Flushing device
25. Remote control box (side mount type)*
26. Digital tachometer*
27. Digital speedometer*
28. Tachometer*
29. Trim meter*
30. Fuel tank*
6C1-9-3B-1E0.book 25 ページ ２０１２年１１月１９日 月曜日 午前１０時３５分

Yamaha F60 Specifications

General

Displacement	996cc
Prop Shaft Horsepower	60 hp
Full Throttle RPM Range	5000-6000 rpm
Fuel Induction System	EFI (Electronic Fuel Injection)
Ignition System	TCI
Starting System	Electric
Steering	Remote
Bore x Stroke	65.0 mm x 75.0 mm
Recommended Fuel	Regular unleaded gasoline (min 87 octane)
Shaft Length	20 in
Engine Type	4-stroke, SOHC
