Instruments and indicators
48
& fuel meter unit type.
After the main switch is first turned to the
“ ” (on) position, all of the displays come on
as a test. After a few seconds, the unit will
change to normal operation.
For more information, see the operation
manual for the meters.
EMU41042

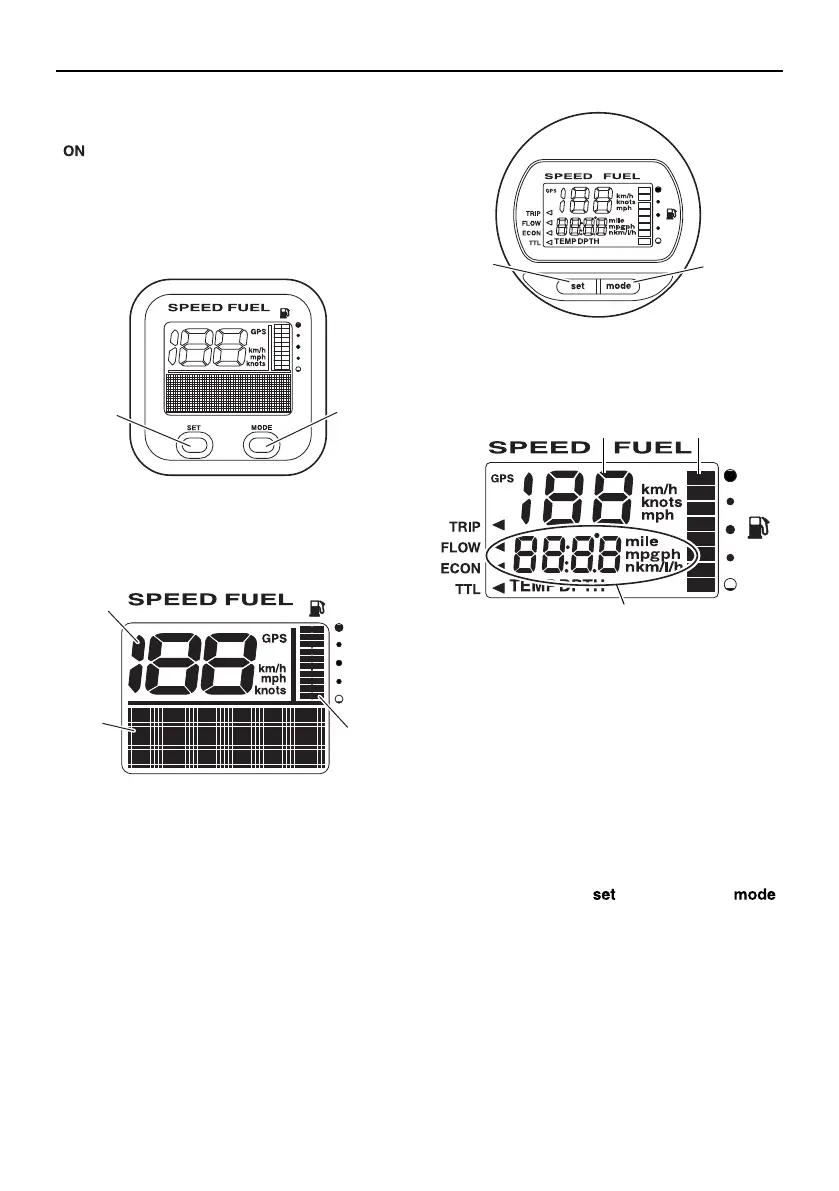

Command Link Multifunction
Speedometer
The speedometer unit shows the boat speed
and has functions of fuel meter and system
voltage display. The chosen display is se-
lected using the “ ” (set) and “ ”
(mode) buttons as described in this section.
In addition, the speedometer can show the
desired unit of measurement such as km/h,
mph, or knots. If the speed sensor is in-
stalled, the unit can also show the trip dis-
play. However, even if the speed sensor is
not installed, the trip display can be shown
1. Set button
2. Mode button
1. Speedometer
2. Fuel meter
3. Multifunction display
2
1
ZMU05432
1
2
3
ZMU05433
1. Set button
2. Mode button
1. Speedometer
2. Fuel meter
3. Multifunction display
2
1
ZMU05434
12
3
ZMU05435
6C1-9-3B-1E0.book 48 ページ ２０１２年１１月１９日 月曜日 午前１０時３５分

Yamaha F60 Specifications

General

Displacement	996cc
Prop Shaft Horsepower	60 hp
Full Throttle RPM Range	5000-6000 rpm
Fuel Induction System	EFI (Electronic Fuel Injection)
Ignition System	TCI
Starting System	Electric
Steering	Remote
Bore x Stroke	65.0 mm x 75.0 mm
Recommended Fuel	Regular unleaded gasoline (min 87 octane)
Shaft Length	20 in
Engine Type	4-stroke, SOHC
