Instruments and indicators
39

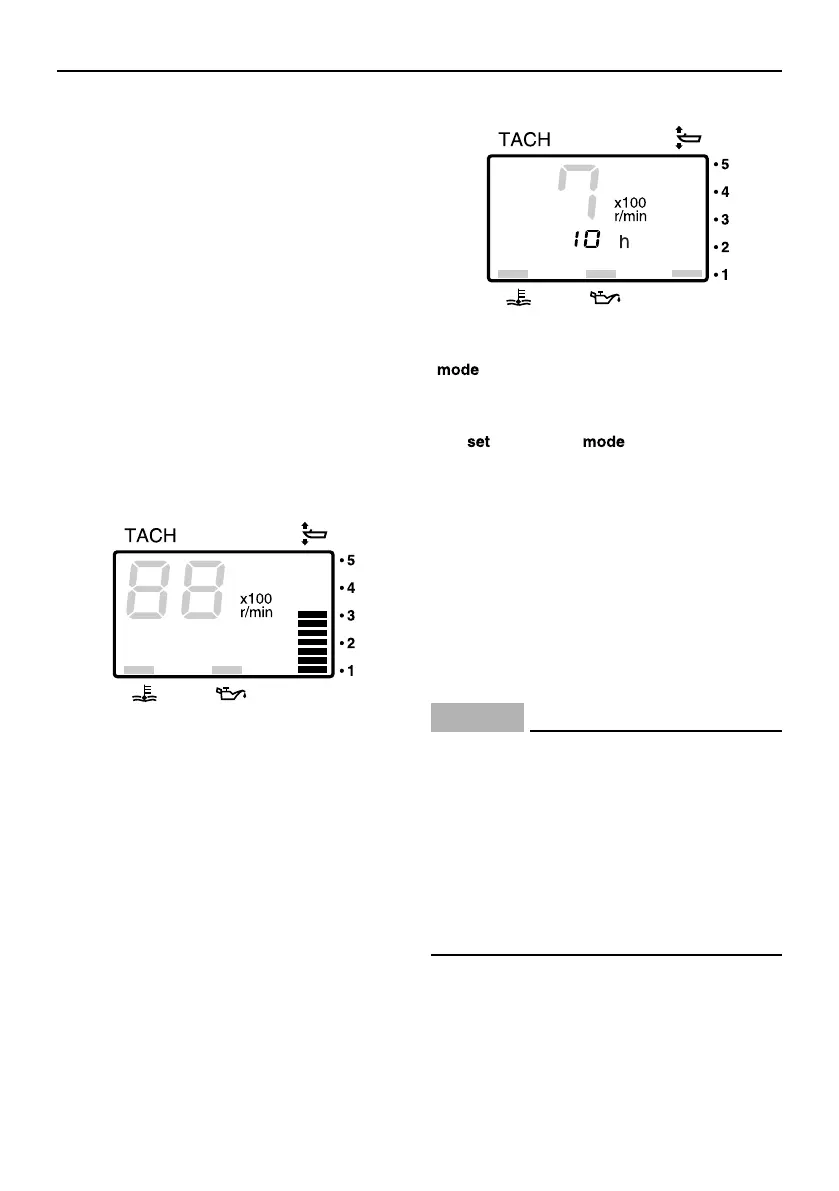

EMU36050
Tachometer
The tachometer displays engine speed in
hundreds of revolutions per minute (r/min).
For example, if the tachometer display reads
“22” then the engine speed is 2200 r/min.
EMU26621
Trim meter
This meter shows the trim angle of your out-
board motor.
Memorize the trim angles that work best
for your boat under different conditions.
Adjust the trim angle to the desired using
the power trim and tilt switch.
If the trim angle of your motor exceeds the
trim operating range, the top segment on
the trim meter display will blink.
EMU26651
Hour meter
This meter shows the number of hours the
engine has been run. It can be set to show
the total number of hours or the number of
hours for the current trip. The display can
also be turned on and off.
To change the display format, press the
“ ” (mode) button. The display can show
total hours or trip hours, or turn off.
To reset the trip hours, simultaneously press
the “ ” (set) and “ ” (mode) buttons for
more than 1 second while the trip hours are
displayed. This resets the trip counter to 0
(zero).
The total number of hours the engine has
been run cannot be reset.
EMU26524
Low oil pressure-alert indicator
If oil pressure drops too low, the alert indica-
tor will start to blink. For further information,
see page 50.
ECM00022
Do not continue to run the engine if the
low oil pressure-alert indicator is on
and the engine oil level is lower. Seri-
ous engine damage will occur.
The low oil pressure-alert indicator
does not indicate the engine oil level.
Use the oil dipstick to check the re-
maining oil quantity. For further infor-
mation, see page 56.
