10 En
Connections
The speaker layout below shows the speaker setting we recommend. You can use it to enjoy CINEMA DSP and
multi-channel audio sources.
Front left and right speakers (FL and FR)
The front speakers are used for the main source sound plus effect sounds. Place these speakers at an equal distance from the
ideal listening position. The distance of each speaker from each side of the video monitor should be the same.
Center speaker (C)
The center speaker is for the center channel sounds (dialog, vocals, etc.). If for some reason it is not practical to use a
center speaker, you can do without it. Best results, however, are obtained with the full system.
Surround left and right speakers (SL and SR)
The surround speakers are used for effect and surround sounds.
Subwoofer (SW)
The use of a subwoofer with a built-in amplifier, such as the Yamaha Active Servo Processing Subwoofer System, is
effective not only for reinforcing bass frequencies from any or all channels, but also for high fidelity sound reproduction
of the LFE (low-frequency effect) channel included in Dolby Digital and DTS sources. The position of the subwoofer is
not so critical, because low bass sounds are not highly directional. But it is better to place the subwoofer near the front
speakers. Turn it slightly toward the center of the room to reduce wall reflections.

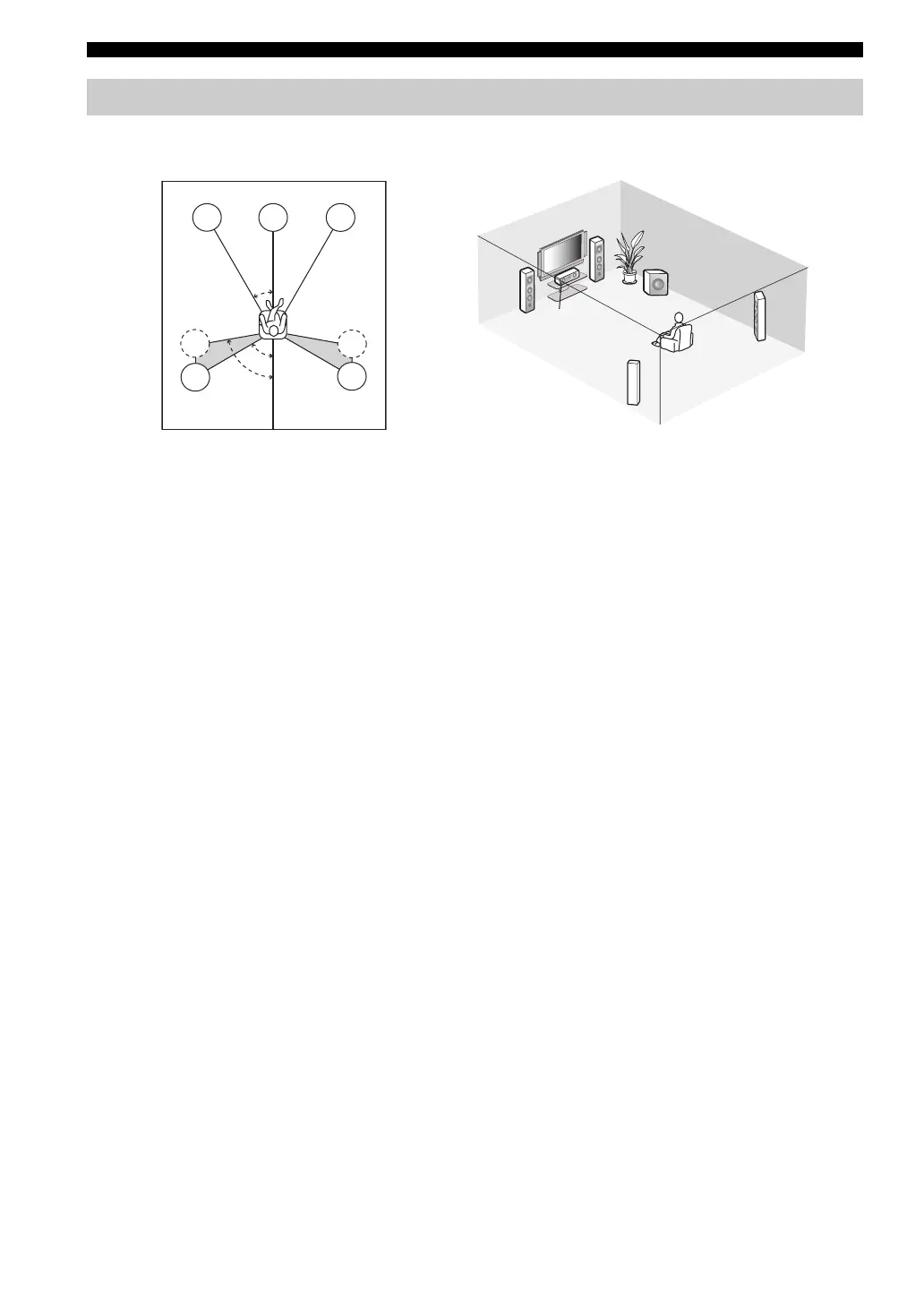

Placing speakers
60˚
30˚
FL
FR
C
SL
SR
SR
80˚
SL
FR
FL
C
SL
SR
SW

Yamaha HTR-6130 Specifications

General

Channels	5.1
HDMI Inputs	2
HDMI Outputs	1
Dolby Digital	Yes
DTS	Yes
FM/AM Tuner	Yes
Response Bandwidth	10 Hz - 100 kHz
Signal-To-Noise Ratio	100 dB
Total Harmonic Distortion	0.9%
Input Impedance	47 kOhm
Input Sensitivity	200 mV
Audio D/A Converter	192kHz/24-bit
Surround System Class	5.1 channel
Digital Sound Processor (DSP)	Yes
DSP Preset Qty	17
Tuner Bands	AM/FM
Preset Station Qty	40
HDMI	Yes
Frequency Response	10 Hz - 100 kHz
Dimensions	435 x 151 x 315 mm
Additional Features	Compressed Music Enhancer
Connector Type	HDMI
Video Inputs/Outputs	2 HDMI inputs, 1 HDMI output, Composite video inputs/outputs
Audio Inputs/Outputs	digital audio input (optical)
