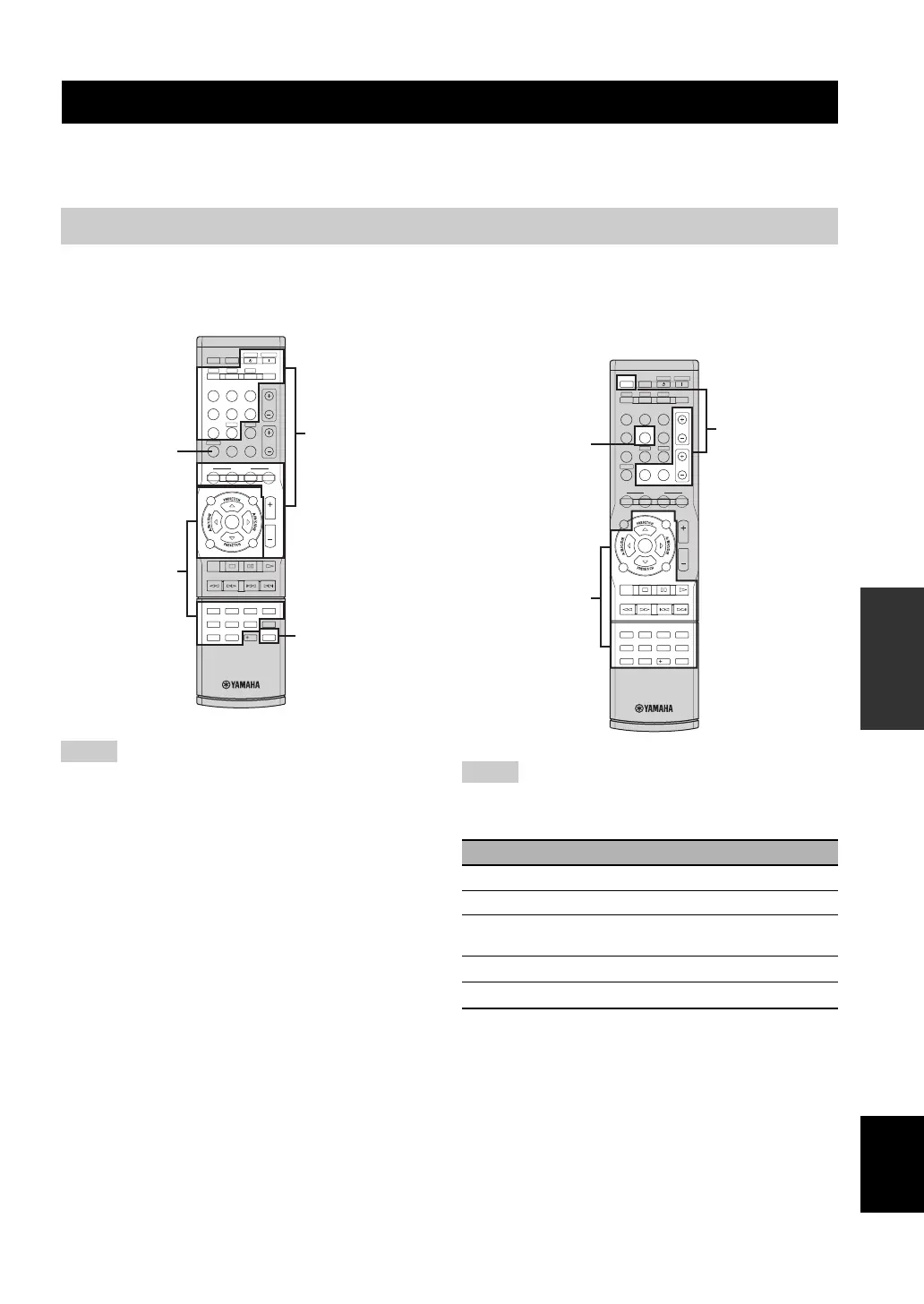

Yamaha HTR-6130 User Manual

Remote control features
51 En
ADVANCED
OPERATION
English
In addition to controlling this unit, the remote control can also operate other audiovisual components made by Yamaha
and other manufacturers. To control your TV or other components, you must set up the appropriate remote control code
for each input source (see page 53).
-
■ Controlling this unit
Press
4
AMP to control this unit.
*1
These buttons always control this unit.
*2
These buttons control this unit only when
4
AMP is pressed.
■ Controlling a TV
Press
3
DTV/CBL to control your TV. To control your
TV, set the appropriate remote control code for
3
DTV/CBL (see page 53).
*1
These buttons always control your TV regardless of whether
you press
3
DTV/CBL or not.
*2
These buttons control your TV only when
3
DTV/CBL is
pressed. For details, see the “Digital TV/Cable TV” column on
page 52.
y
You can control more than one TV by setting the appropriate
remote control code for any input source selector buttons other
than
3
DTV/CBL. In such a case, you can control the buttons
highlighted above (*1 and *2) when you press the input source
selector button.
Remote control features
Controlling this unit, a TV, or other components
Notes
REC
SUR. DECODE
NIGHT STRAIGHT
MULTI CH IN AUDIO SEL SLEEP
ENHANCER
l PROG h
TV MUTE
TV INPUT
TV VOL
TV CH
POWER
AMP
STANDBY
POWER
MUTE
POWER
8
10
7
09
65
4321
ENT
DVD
V-AUX/DOCK
DE
DTV/CBL DVR
CD MD/CD-R TUNER
MENU
VOLUME
TITLE
ENTER
BAND LEVEL
DISPLAY
RETURN
AVTV
SCENE
4321
A B C
AMP
*2
*1
*2
Notes
Remote control Digital TV/Cable TV
TV POWER
Turns on or off the power.
TV CH +/– Changes the channel number.
TV VOL +/–
Increases or decreases the volume
level.
TV INPUT
Changes the input source.
TV MUTE
Mutes the audio output.
REC
SUR. DECODE
NIGHT STRAIGHT
MULTI CH IN AUDIO SEL SLEEP
ENHANCER
l PROG h
TV MUTE
TV INPUT
TV VOL
TV CH
POWER
AMP
STANDBY
POWER
MUTE
POWER
8
10
7
09
65
4321
ENT
DVD
V-AUX/DOCK
DE
DTV/CBL DVR
CD MD/CD-R TUNER
MENU
VOLUME
TITLE
ENTER
BAND LEVEL
DISPLAY
RETURN
AVTV
SCENE
4321
A B C
DTV/CBL
*2
*1

Yamaha HTR-6130 Specifications

General

Channels	5.1
HDMI Inputs	2
HDMI Outputs	1
Dolby Digital	Yes
DTS	Yes
FM/AM Tuner	Yes
Response Bandwidth	10 Hz - 100 kHz
Signal-To-Noise Ratio	100 dB
Total Harmonic Distortion	0.9%
Input Impedance	47 kOhm
Input Sensitivity	200 mV
Audio D/A Converter	192kHz/24-bit
Surround System Class	5.1 channel
Digital Sound Processor (DSP)	Yes
DSP Preset Qty	17
Tuner Bands	AM/FM
Preset Station Qty	40
HDMI	Yes
Frequency Response	10 Hz - 100 kHz
Dimensions	435 x 151 x 315 mm
Additional Features	Compressed Music Enhancer
Connector Type	HDMI
Video Inputs/Outputs	2 HDMI inputs, 1 HDMI output, Composite video inputs/outputs
Audio Inputs/Outputs	digital audio input (optical)
