16 En
Connections

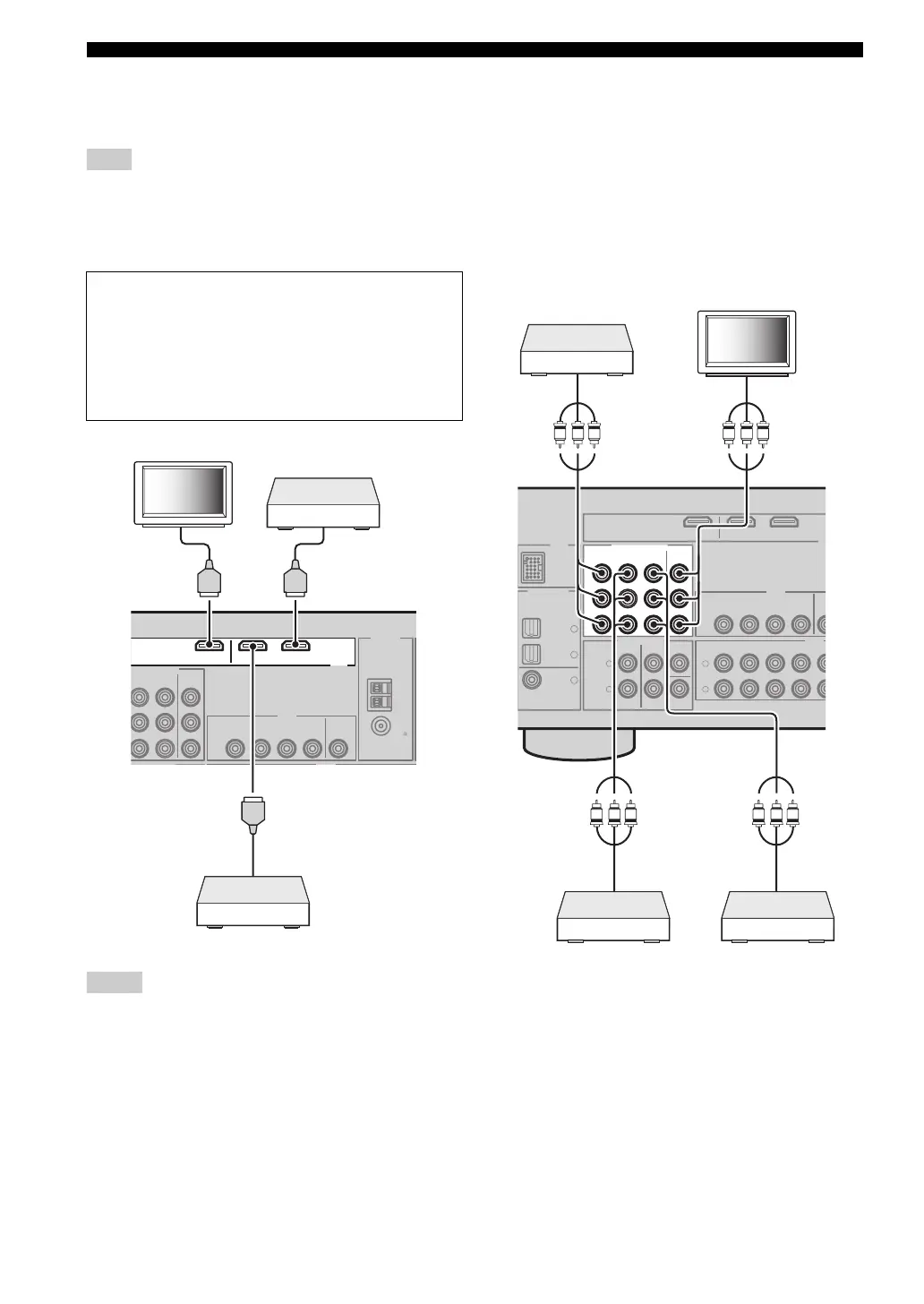

■ Connecting to the HDMI or COMPONENT VIDEO jacks
You can enjoy high-quality pictures by connecting your video monitor and video source components to this unit using
HDMI or COMPONENT VIDEO connections.
Be sure to connect your video components in the same way you connect your video monitor to this unit. For example, if you connect
your video monitor to this unit using an HDMI or COMPONENT VIDEO connection, connect your video components to this unit using
the HDMI or COMPONENT VIDEO connection.
HDMI connection
• Connect the input source components to the HDMI DVD or
HDMI DTV/CBL jack to display the video images on the video
monitor connected to the HDMI OUT jack.
• Audio/video signals output from the connected component
(such as DVD player etc.) are output to the connected video
monitor only when this unit is turned on and set to the input
source (DVD or DTV/CBL).
• Available audio/video signals depend on the specification of the
connected video monitor. Refer to the instruction manual of
each connected component.
Connecting to the COMPONENT VIDEO jacks
Note
Audio signals input at the HDMI jack are not output
from any speaker terminals but output from the
connected video monitor.
To enjoy the sound from speakers connected to this unit,
– make an analog or digital connection besides the
HDMI connection (see page 15).
– mute the volume of the connected video monitor.
Notes
MPONENT VIDEO
HDMI
VIDEO
ANTENNA
TV/CBL DVR
DVD DTV/CBL
DVDOUT DTV/CBL
MONITOR
OUT
DVR
IN
OUT
MONITOR
OUT
AM
GND
FM
75
UNBAL.
Video monitor
Cable TV or
satellite tuner
DVD player
L
R
L
R
DOCK
COMPONENT VIDEO
H
VIDEO
AUDIOMULTI CH INPUT
DIGITAL INPUT
1
2
3
DVD DTV/CBL DVR
DVD
DVD
COAXIAL
OPTICAL
CD
DTV/CBL
DTV/
CBL
DVDOUT DTV/CBL
MO
DVR
DVD
FRONT CENTER
SUBWOOFER
SURROUND
DTV/CBL DVR
IN
OUT
IN
OUT
MONITOR
OUT
Y
P
R
P
B
P
R
P
B
Y
P
R
P
B
Y
P
R
P
B
Y
P
R
P
B
Y
DVD player
Video monitor
Cable TV or
satellite tuner
DVD recorder
Video in
Video out
Video out
Video out
