18 En
Connections
This unit is equipped with the DOCK terminal on the rear
panel that allows you to connect a Yamaha iPod universal
dock (such as YDS-10, sold separately) or Bluetooth
adapter (such as YBA-10, sold separately). Connect a
Yamaha iPod universal dock or Bluetooth adapter to the
DOCK terminal on the rear panel of this unit using its
dedicated cable.
y
Refer to “Using iPod™” on page 40 for playback of your iPod
and “Using Bluetooth™ components” on page 41 for playback of
your Bluetooth components.
Use the VIDEO AUX jacks on the front panel to connect a
game console or a video camera to this unit.
• The audio signals input at the DOCK terminal on the rear panel
take priority over the ones input at the VIDEO AUX jacks.
• To reproduce the source signals input at these jacks, select
“V-AUX” as the input source.
• The audio signals input at the PORTABLE mini jack take
priority over the ones input at the AUDIO L/R jacks.

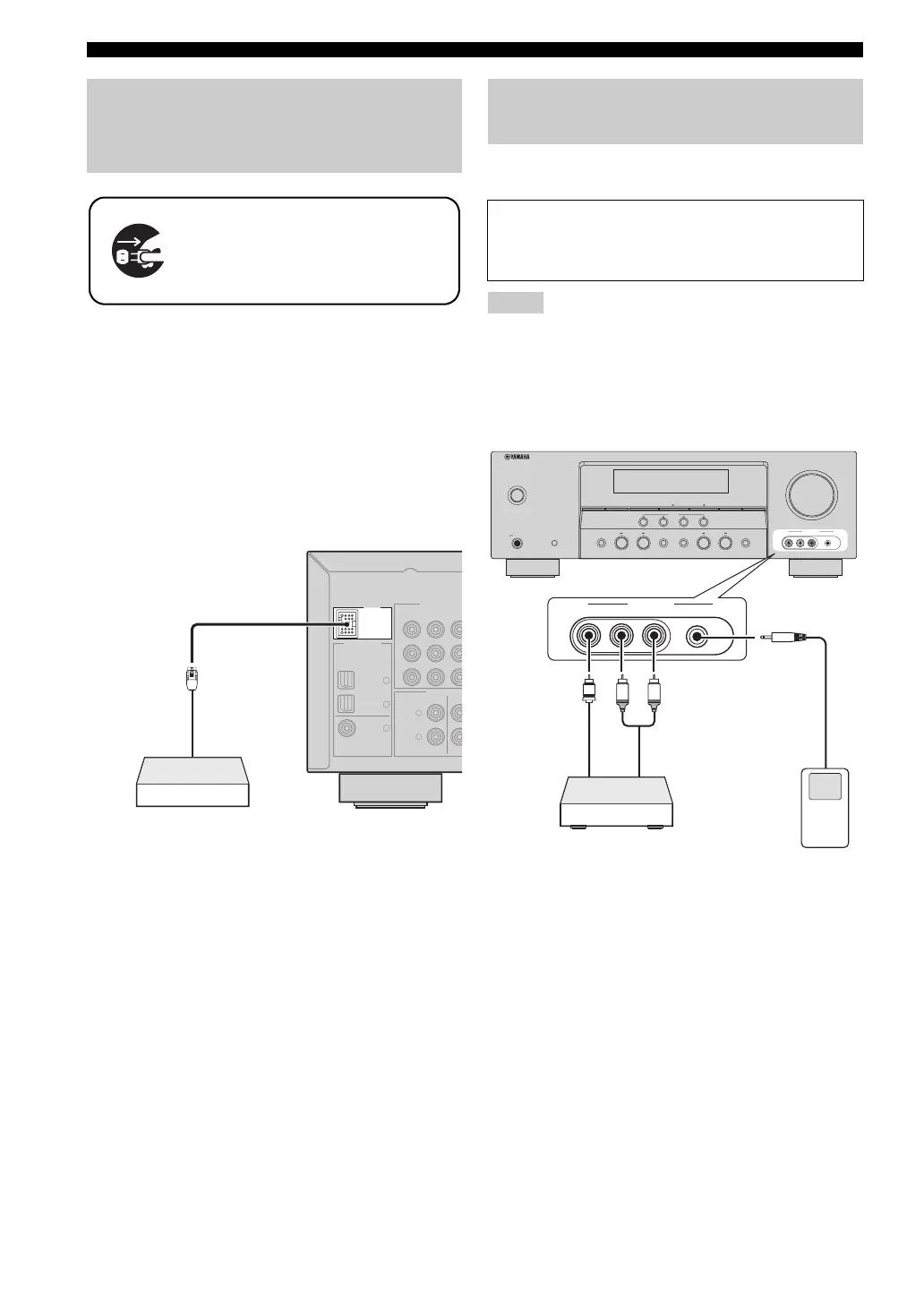

Connecting a Yamaha iPod™
universal dock and Bluetooth™
adapter
Make sure that this unit and other
components are unplugged from the
AC wall outlets.
MULTI CH INP
COMPONENT VI
DOCK
DIGITAL INPUT
L
1
2
3
R
SURRO
FRONT
DVD
OPTICAL
COAXIAL
CD
DTV/
CBL
DVD
P
R
P
B
Y
DTV/CBL DV
Yamaha iPod universal dock or
Bluetooth adapter
Connecting to the VIDEO AUX jacks
on the front panel
Caution
Be sure to turn down the volume of this unit and other
components before making connections.
Notes
STANDBY
/ON
PHONES
SPEAKERS
A/B/OFF
SILENT CINEMA
EDIT
PRESET/TUNING
BAND A/B/C/D/E
TONE CONTROL
PROGRAM
STRAIGHT NIGHT
EFFECT
SCENE
PRESET/TUNING MEMORY TUNING AUTO/MAN'L
AUDIO SELECT
INPUT
1234
VOLUME
R
L
AUDIO PORTABLE
VIDEO AUX
VIDEO
VIDEO L AUDIO R PORTABLE
VIDEO AUX
V
L
R
Game console or
video camera
3.5 mm
stereo mini
plug
Audio out
Video out
