Yamaha HTR-6130 User Manual

14 En
Connections
You can play back pictures by connecting your video monitor and video source component to this unit using HDMI
connections.
At that time, audio/video signals output from the connected component (such as DVD player etc.) are output to the
connected video monitor only when this unit is turned on and set to the input source (DVD or DTV/CBL).
Furthermore, available audio/video signals depend on the specification of the connected video monitor. Refer to the
instruction manual of each connected component.

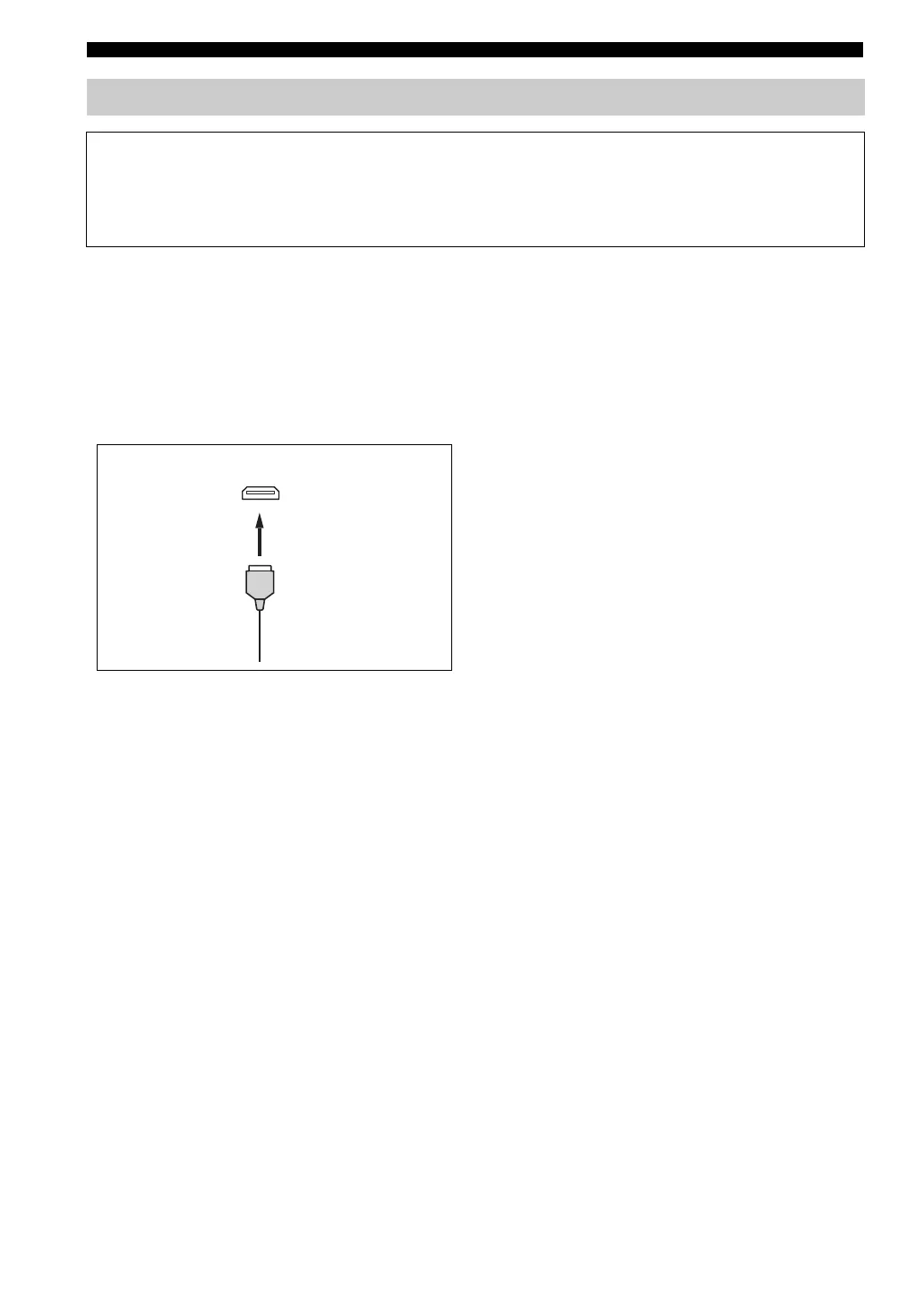

■ HDMI jack and cable plug
y
• We recommend using an HDMI cable shorter than 5 meters
(16 feet) with the HDMI logo printed on it.
• Use a conversion cable (HDMI jack
↔ DVI-D jack) to connect
this unit to other DVI components.
Information on HDMI™
Audio signals input at the HDMI jack are not output from any speaker terminals but output from the connected video
monitor.
To enjoy the sound from speakers connected to this unit,
– make an analog or digital connection besides the HDMI connection (see page 16).
– mute the volume of the connected video monitor.
HDMI cable
plug
HDMI

Yamaha HTR-6130 Specifications

General

Channels	5.1
HDMI Inputs	2
HDMI Outputs	1
Dolby Digital	Yes
DTS	Yes
FM/AM Tuner	Yes
Response Bandwidth	10 Hz - 100 kHz
Signal-To-Noise Ratio	100 dB
Total Harmonic Distortion	0.9%
Input Impedance	47 kOhm
Input Sensitivity	200 mV
Audio D/A Converter	192kHz/24-bit
Surround System Class	5.1 channel
Digital Sound Processor (DSP)	Yes
DSP Preset Qty	17
Tuner Bands	AM/FM
Preset Station Qty	40
HDMI	Yes
Frequency Response	10 Hz - 100 kHz
Dimensions	435 x 151 x 315 mm
Additional Features	Compressed Music Enhancer
Connector Type	HDMI
Video Inputs/Outputs	2 HDMI inputs, 1 HDMI output, Composite video inputs/outputs
Audio Inputs/Outputs	digital audio input (optical)
