Yamaha Mio User Manual

4 - 42
ENG
KICKSTARTER
EAS00340

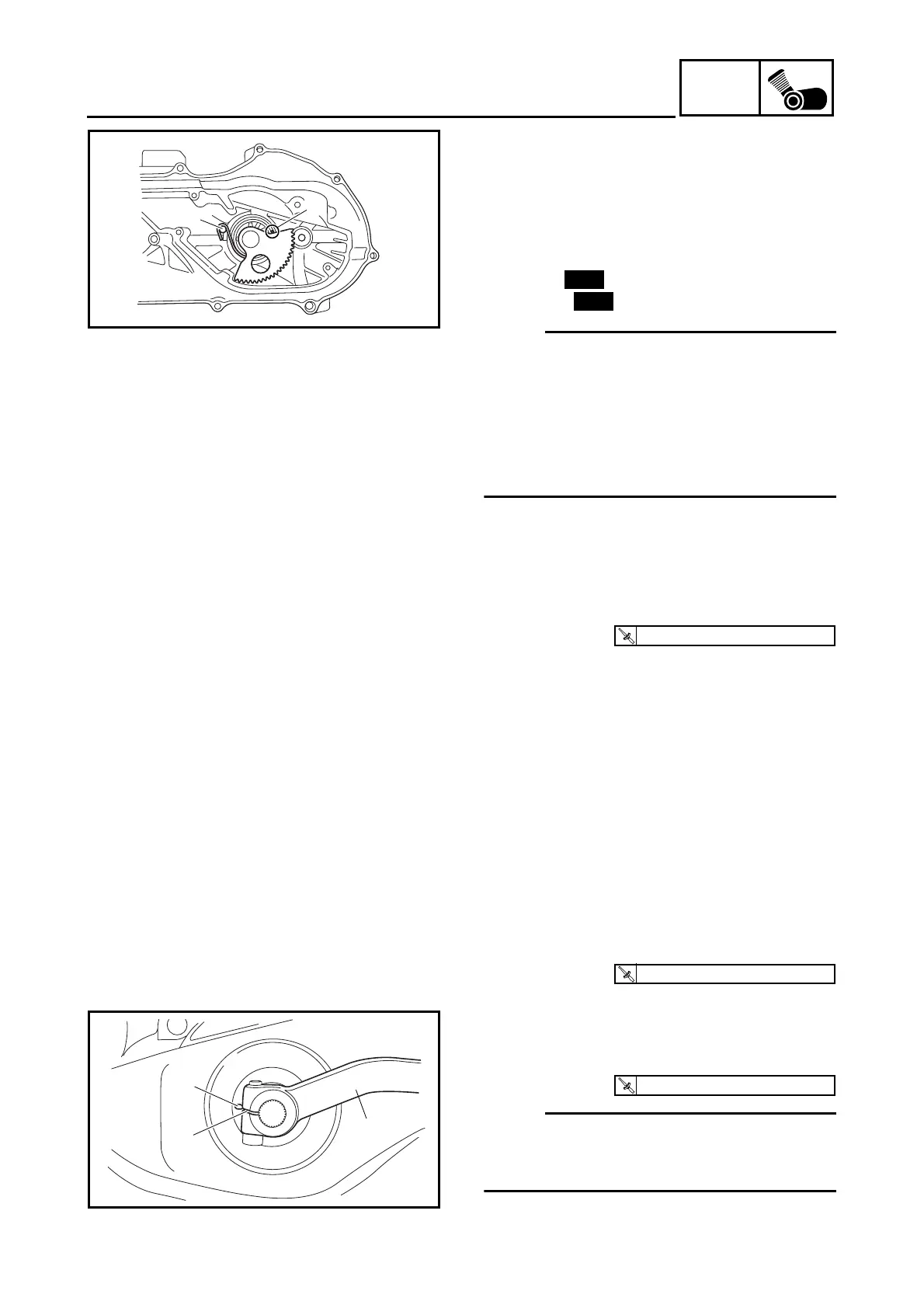

ASSEMBLING THE KICKSTARTER
1. Install:
• spacer
• kickstarter spring
• kickstarter shaft
• washer
• circlip
• oil seal
NOTE:
_
• Hook the straight end of the kickstarter
spring onto the notch
1
in the kickstarter
shaft and hook the hooked end of the kick-
starter spring onto the projection
2
as
shown.
• Install the circlip securely into the groove on
the kickstarter shaft.
2. Install:
• kickstarter pinion gear clip
• kickstarter pinion gear
• kickstarter shaft plate
• kickstarter shaft plate screws
2
1
New
New
T
R
.
.
9 Nm (0.9 m · kg, 6.5 ft · lb)
INSTALLING THE KICKSTARTER
For installation, reverse the removal proce-
dure.
1. Install:
• dowel pins
• V-belt case cover
• fuel overflow hose holder
• V-belt case cover bolts
T
R
.
.
10 Nm (1.0 m · kg, 7.2 ft · lb)
2. Install:
• kickstarter crack
1
• kickstarter crack bolt
NOTE:
_
To install the kickstarter crank, align the notch
a in the kickstarter crank with the projection
b on the V-belt case cover.
b
a
1
T
R
.
.
12 Nm (1.2 m · kg, 8.7 ft · lb)
