6 - 16
CHAS
FRONT BRAKE
EAS00579
CAUTION:
_
Disc brake components rarely require dis-
assembly.
Therefore, always follow these preventive
measures:
• Never disassemble brake components
unless absolutely necessary.
• If any connection on the hydraulic brake
system is disconnected, the entire brake
system must be disassembled, drained,
cleaned, properly filled, and bled after
reassembly.
• Never use solvents on internal brake
components.
• Use only clean or new brake fluid for
cleaning brake components.
• Brake fluid may damage painted surfaces
and plastic parts. Therefore, always clean
up any spilt brake fluid immediately.
• Avoid brake fluid coming into contact
with the eyes as it can cause serious
injury.
FIRST AID FOR BRAKE FLUID ENTERING
THE EYES:
• Flush with water for 15 minutes and get
immediate medical attention.
EAS00581
REPLACING THE FRONT BRAKE PADS
NOTE:
_
When replacing the brake pads, it is not neces-
sary to disconnect the brake hose or disas-
semble the brake caliper.

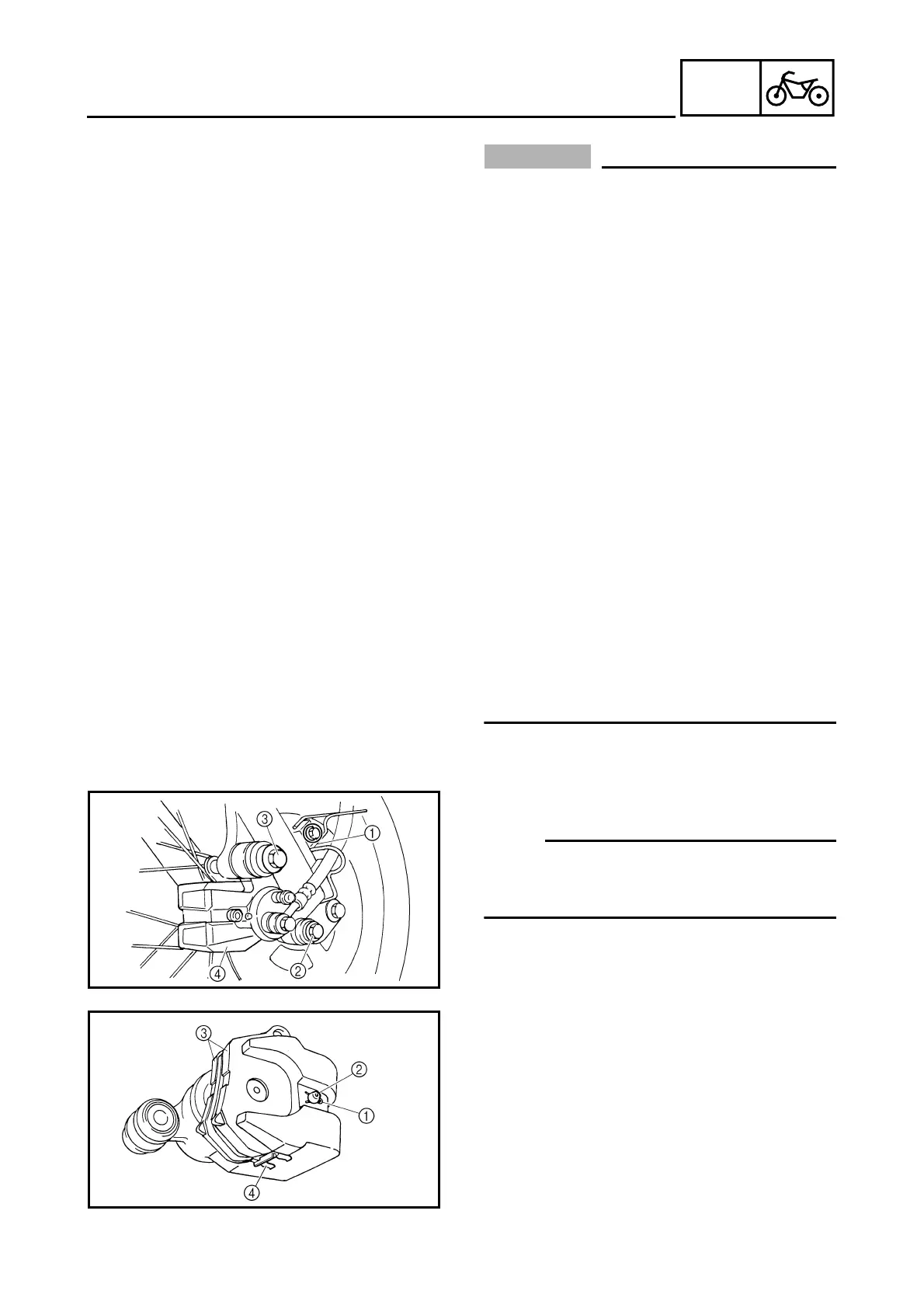

1. Remove:
• brake hose holder
1
• brake caliper lower bolt
2
• brake caliper upper bolt
3
• brake caliper
4
2. Remove:
• pin
1
• brake pad holding bolt
2
• brake pads
3
(along with the brake pad shim)
• brake pad spring
4
To Next Page
